Crankshaft Position Sensor (2.2L)

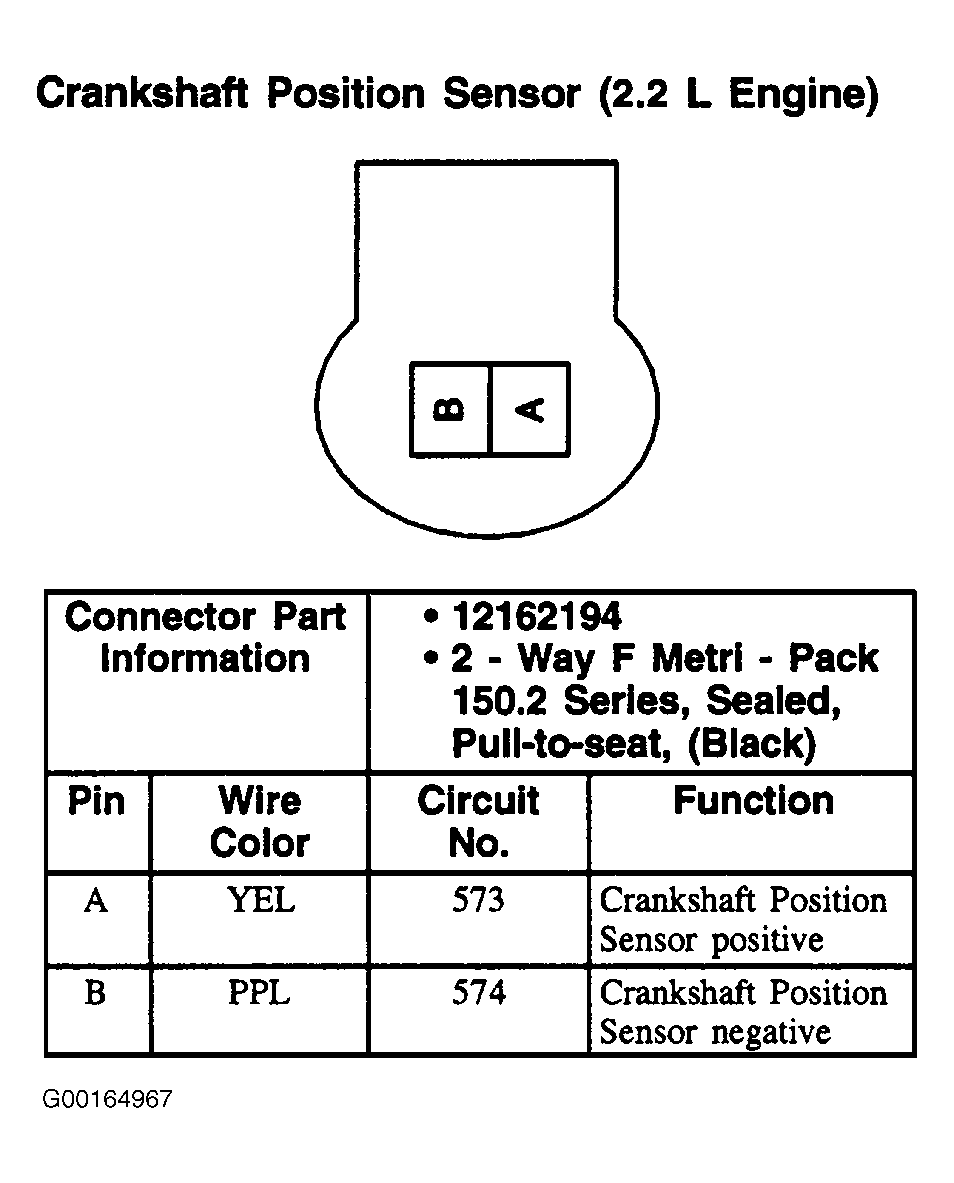

Fig 1: Crankshaft Position Sensor (2.2L) - 2-Pin Connector, Black
G00164967Courtesy of GENERAL MOTORS CORP.
