Crankshaft Position Sensor (4.3L)

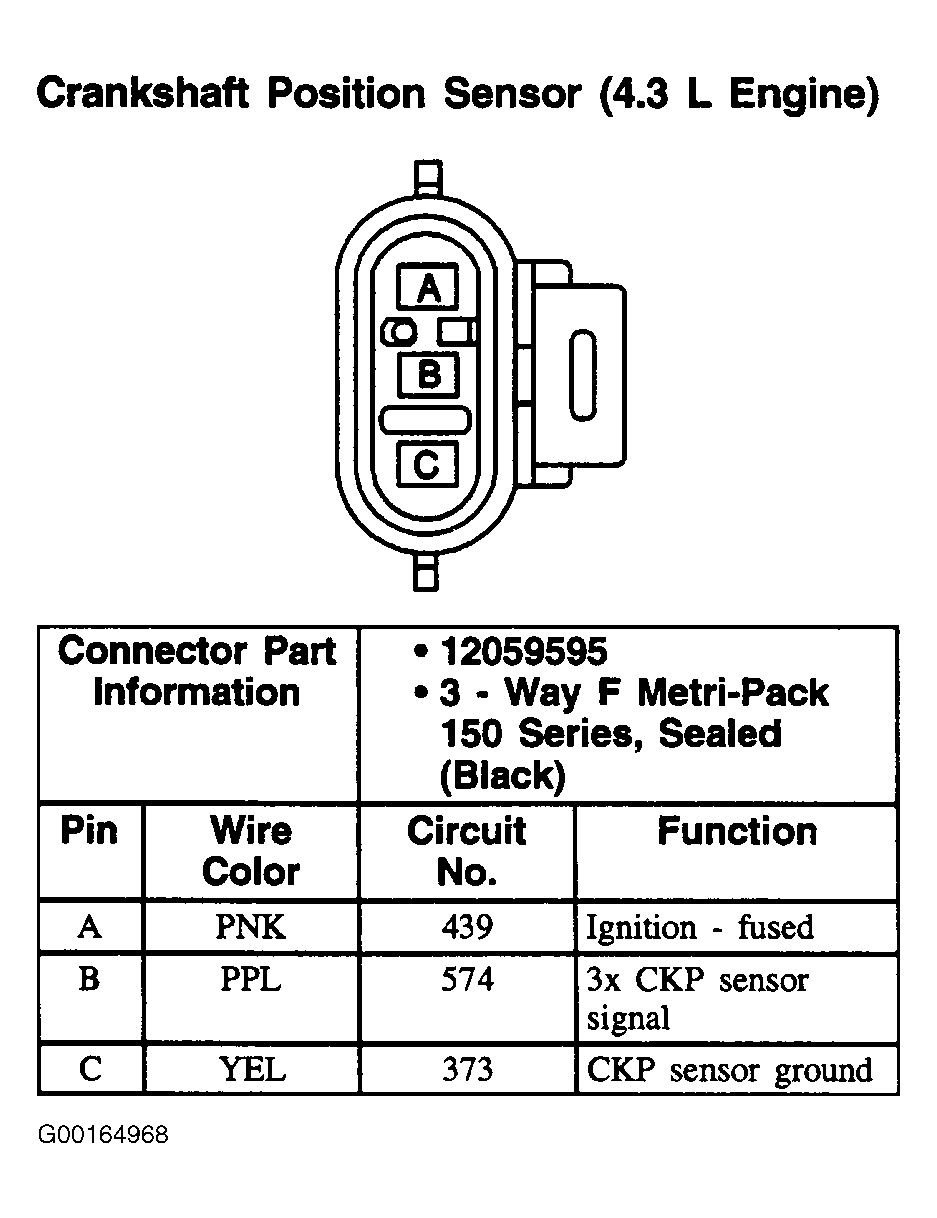

Fig 1: Crankshaft Position Sensor (4.3L) - 3-Pin Connector, Black
G00164968Courtesy of GENERAL MOTORS CORP.
