Dome & High Mounted Stop Lamp (Pickup)

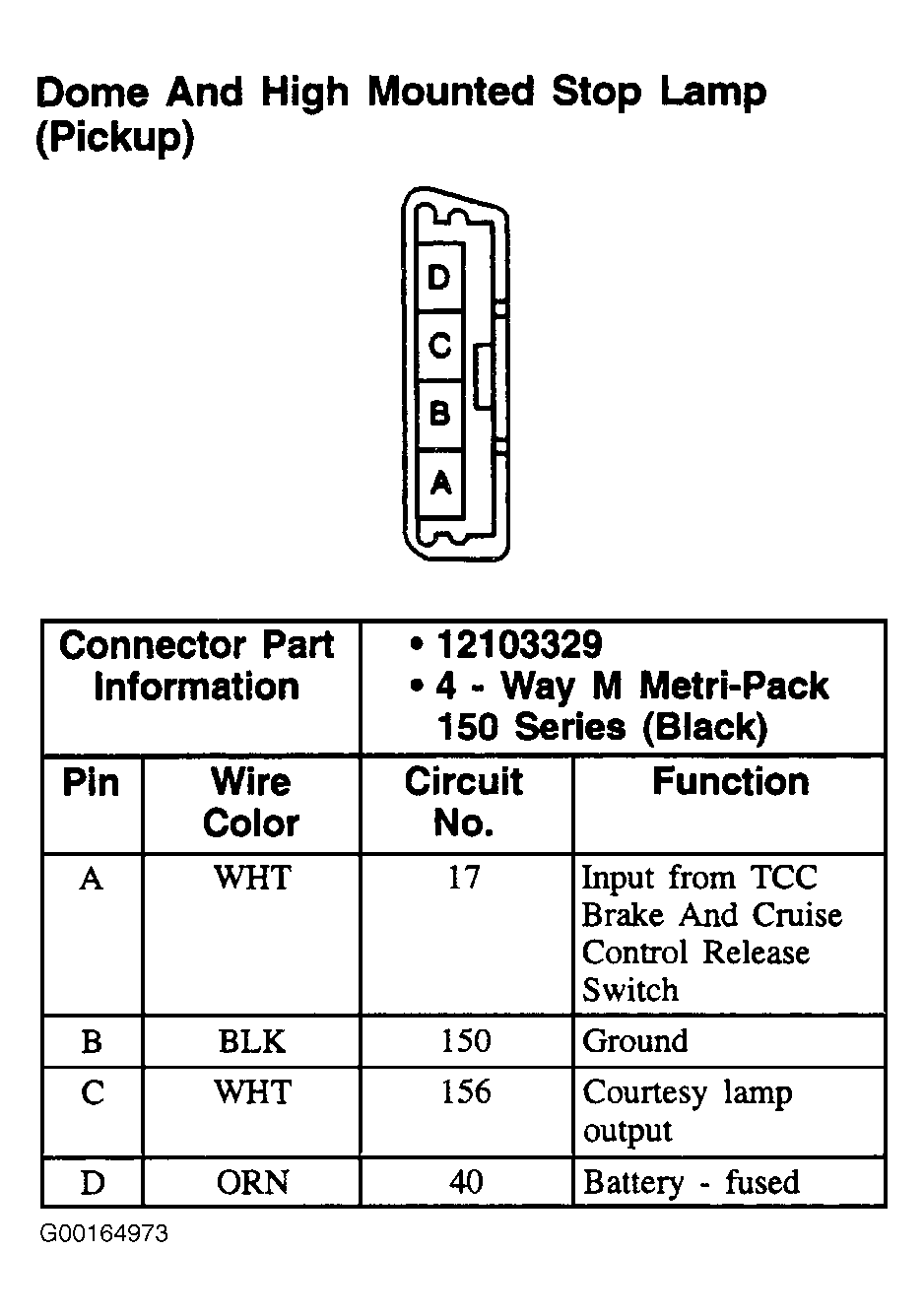

Fig 1: Dome & High Mounted Stop Lamp (Pickup) - 4-Pin Connector, Black
G00164973Courtesy of GENERAL MOTORS CORP.
