Connector Terminal Identification
›
Driver's Information Display Center Connectors
›
Driver's Information Display Center C1
Driver's Information Display Center C1

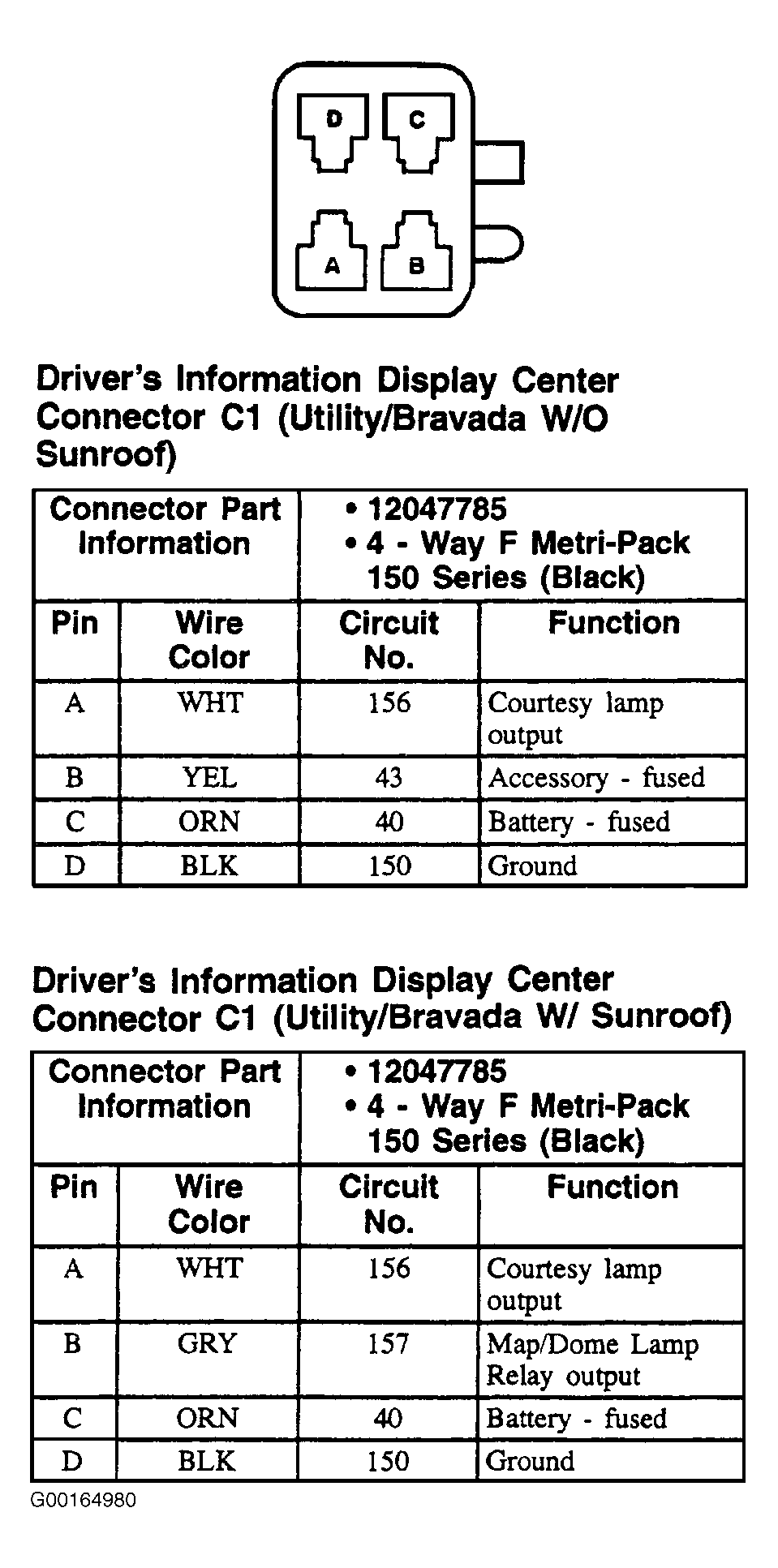

Fig 1: Driver's Information Display Center C1 - 4-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
