Connector Terminal Identification
›
ENDGATE Window Release Actuator
ENDGATE Window Release Actuator

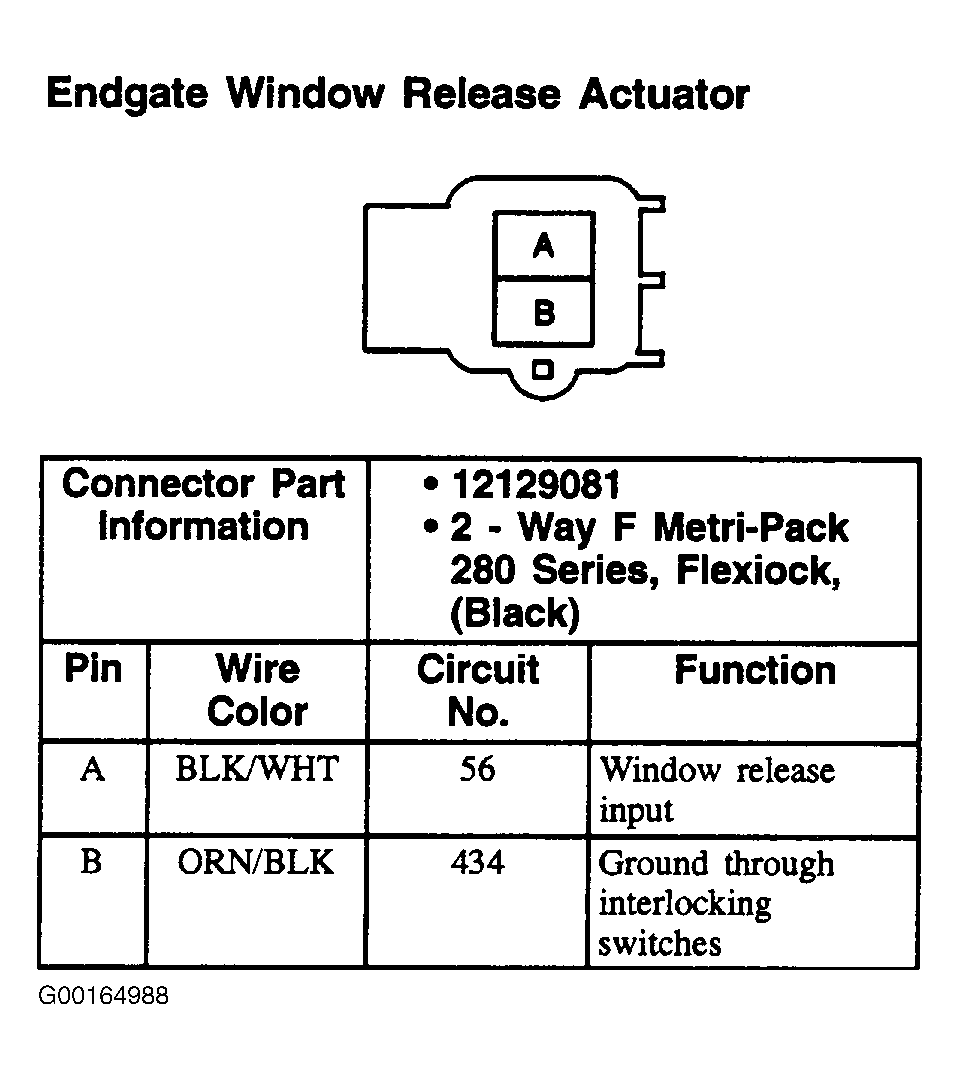

Fig 1: Endgate Window Release Actuator - 2-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
