ENDGATE Window Release Switch

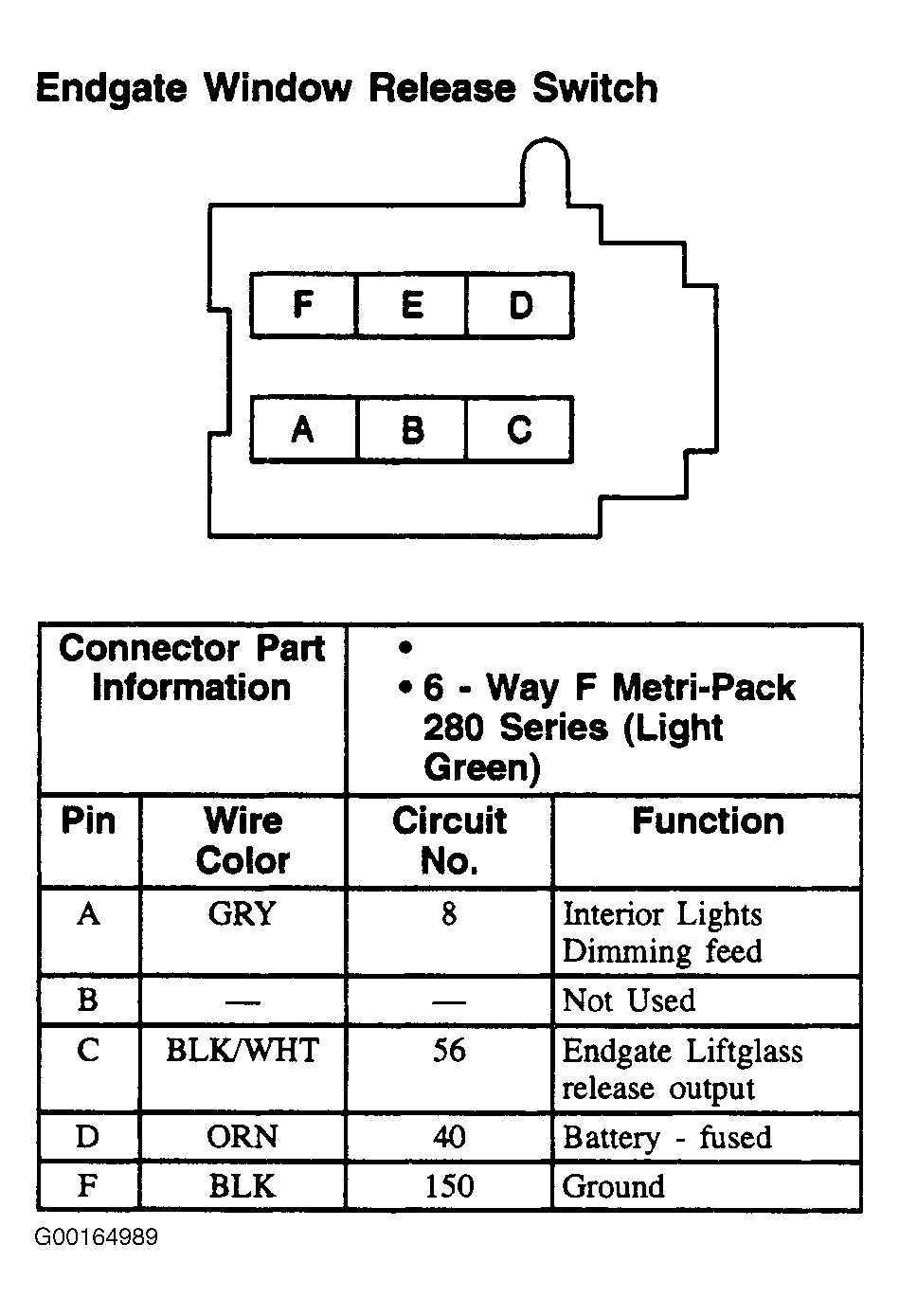

Fig 1: Endgate Window Release Switch - 6-Pin Connector, Light Green
G00164989Courtesy of GENERAL MOTORS CORP.
