Electronic Ignition Control Module C1 (W/O Coil - 2.2L)

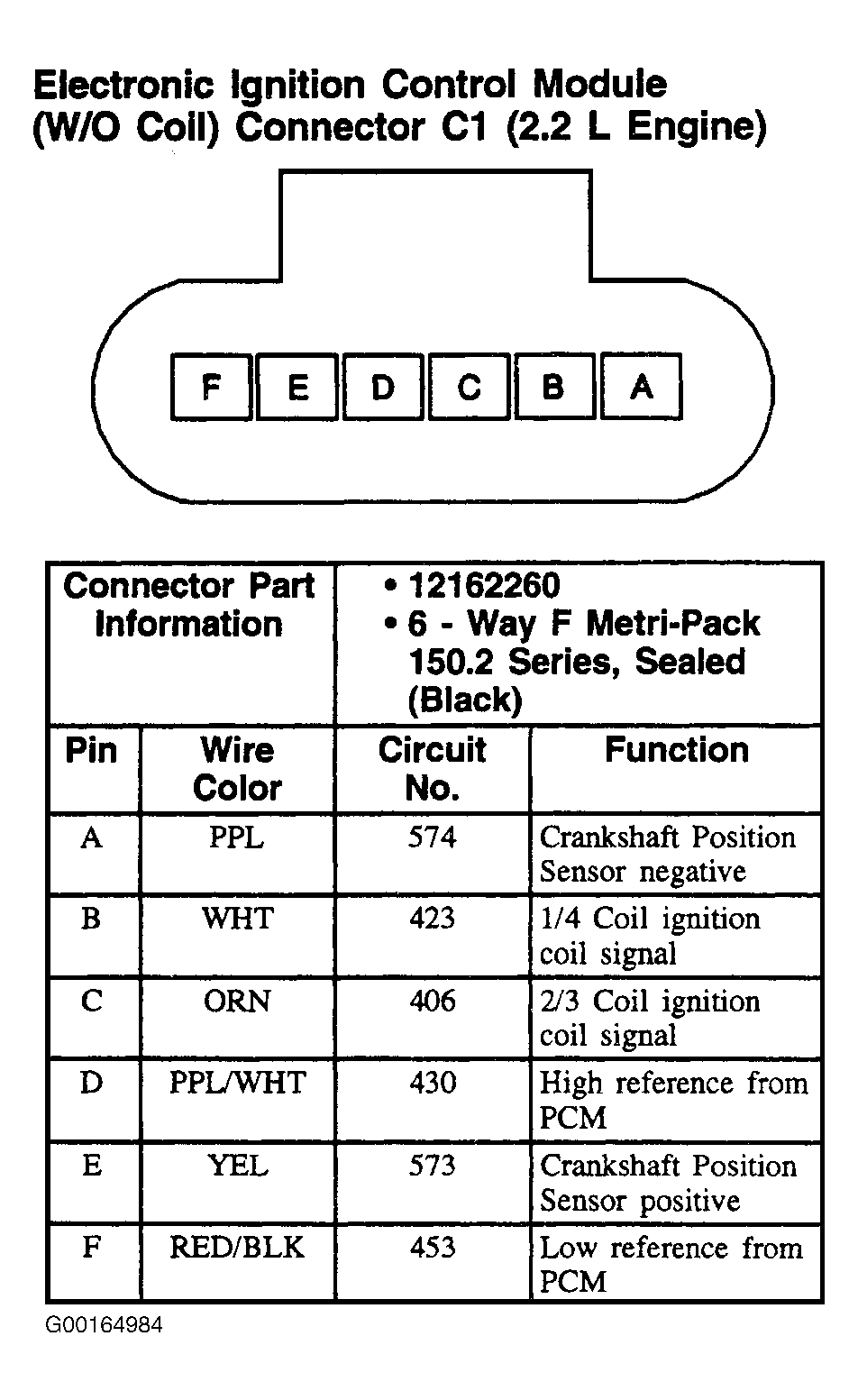

Fig 1: Electronic Ignition Control Module C1 (W/O Coil - 2.2L) - 6-Pin Connector, Black
G00164984Courtesy of GENERAL MOTORS CORP.
