Connector Terminal Identification
›
Exhaust Gas RECIRCULATION Valve
Exhaust Gas RECIRCULATION Valve

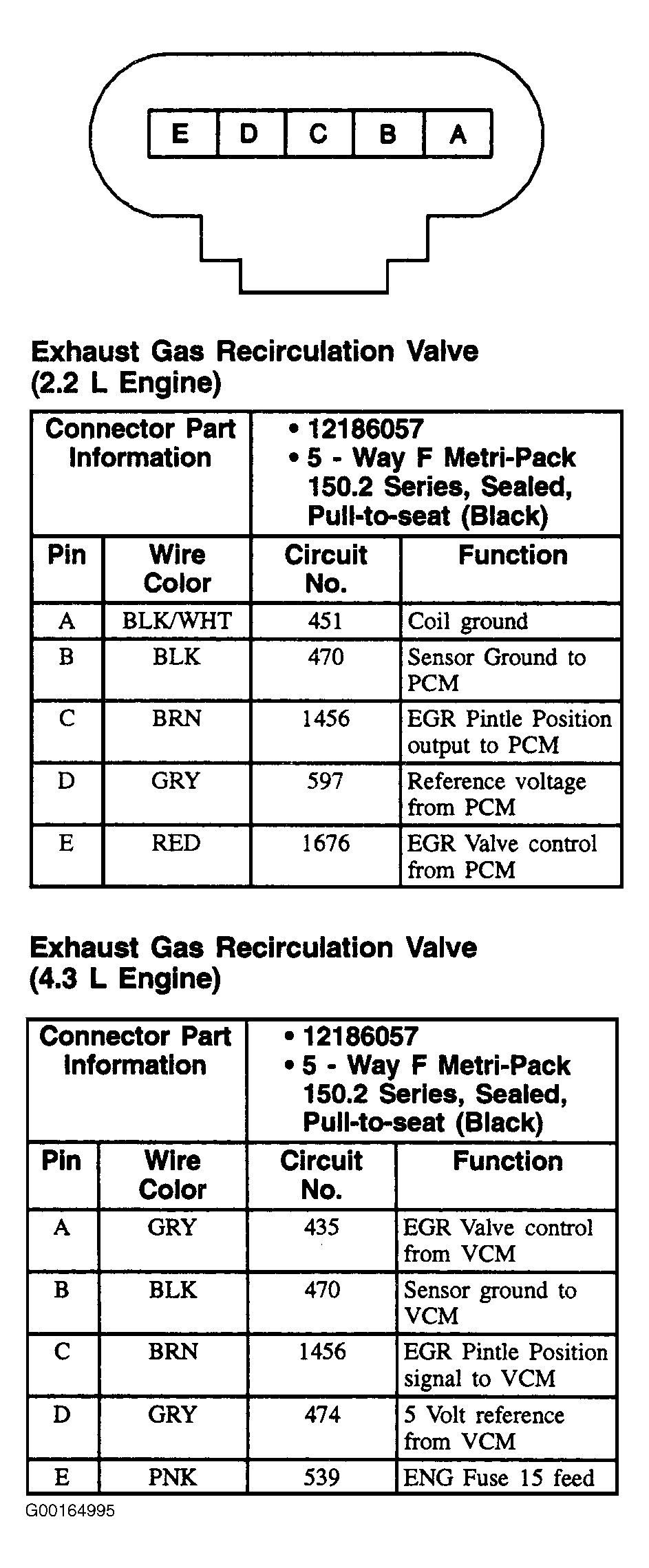

Fig 1: Exhaust Gas Recirculation Valve - 5-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
