Connector Terminal Identification
›
Fog Lamp Relay
Fog Lamp Relay

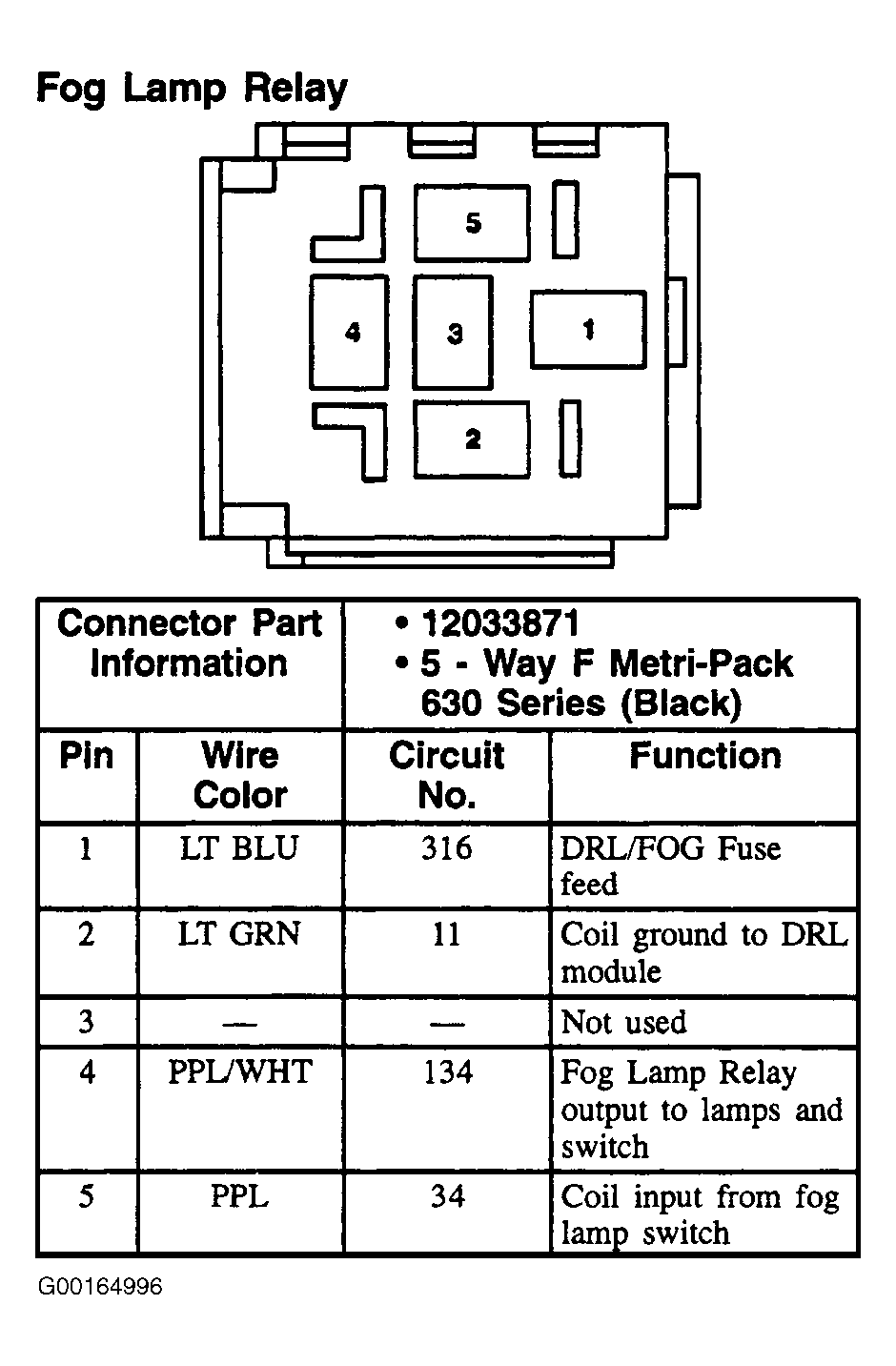

Fig 1: Fog Lamp Relay - 5-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
