Connector Terminal Identification
›
Fog Lamp Switch
Fog Lamp Switch

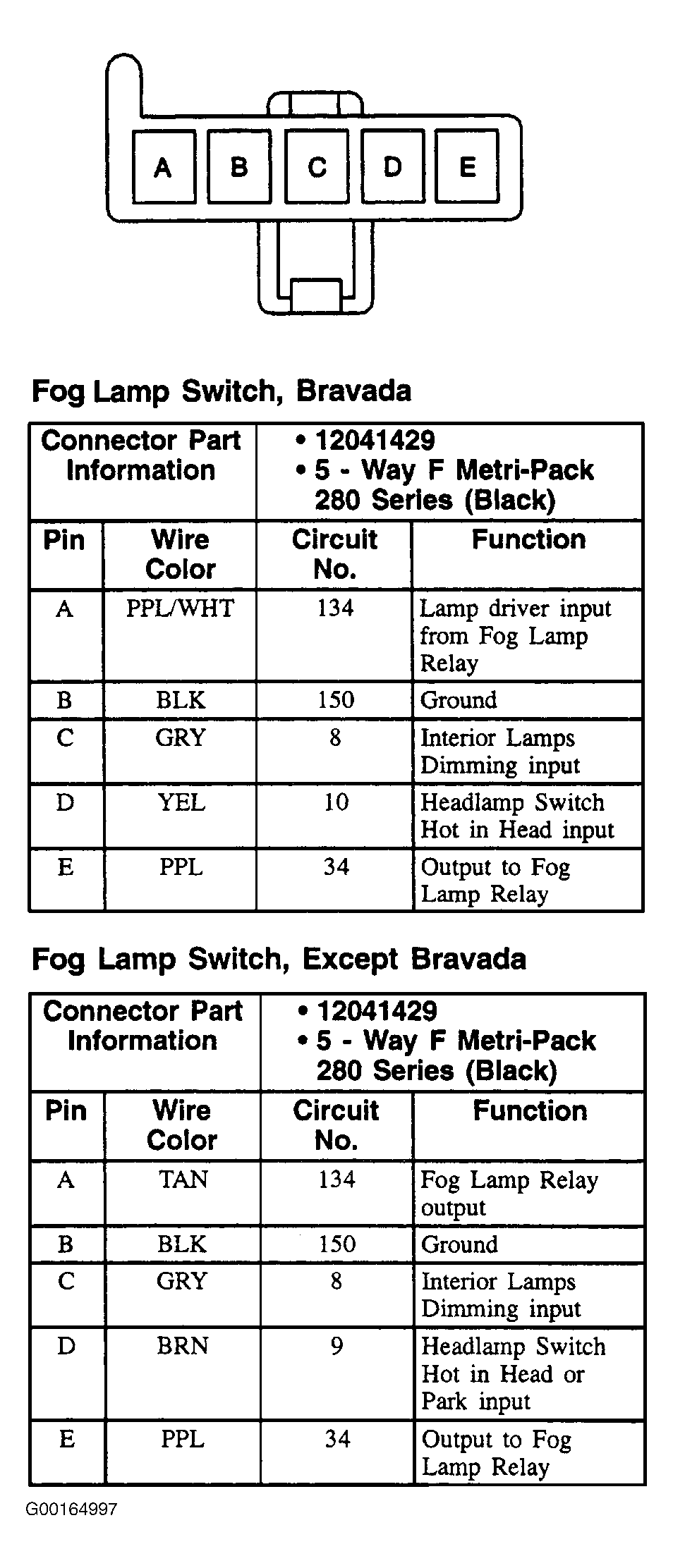

Fig 1: Fog Lamp Switch - 5-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
