Four Wheel Drive Indicator Switch (W/ Manual Shift 4WD)

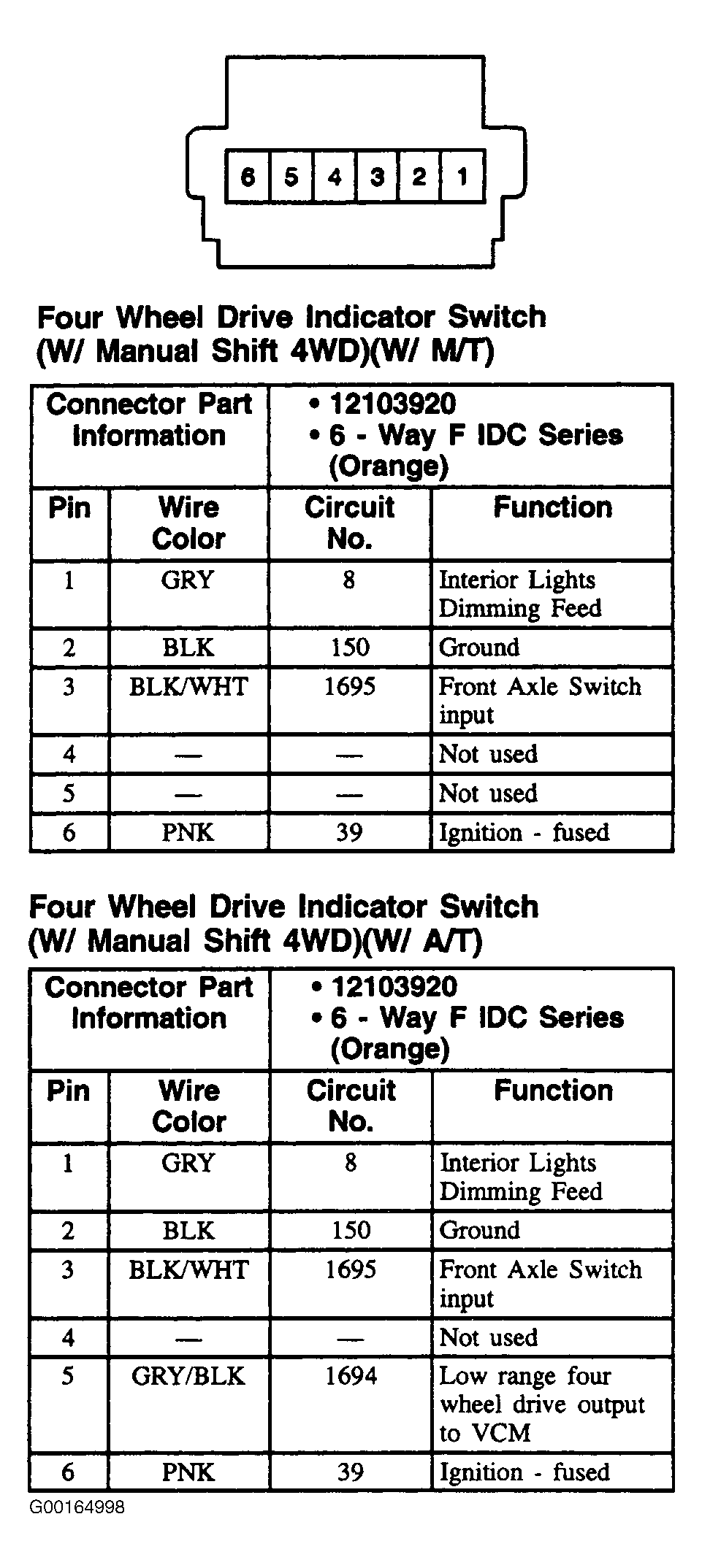

Fig 1: Four Wheel Drive Indicator Switch (W/ Manual Shift 4WD) - 6-Pin Connector, Orange
G00164998Courtesy of GENERAL MOTORS CORP.
