Front Fog Lamp Bulb (Utility)

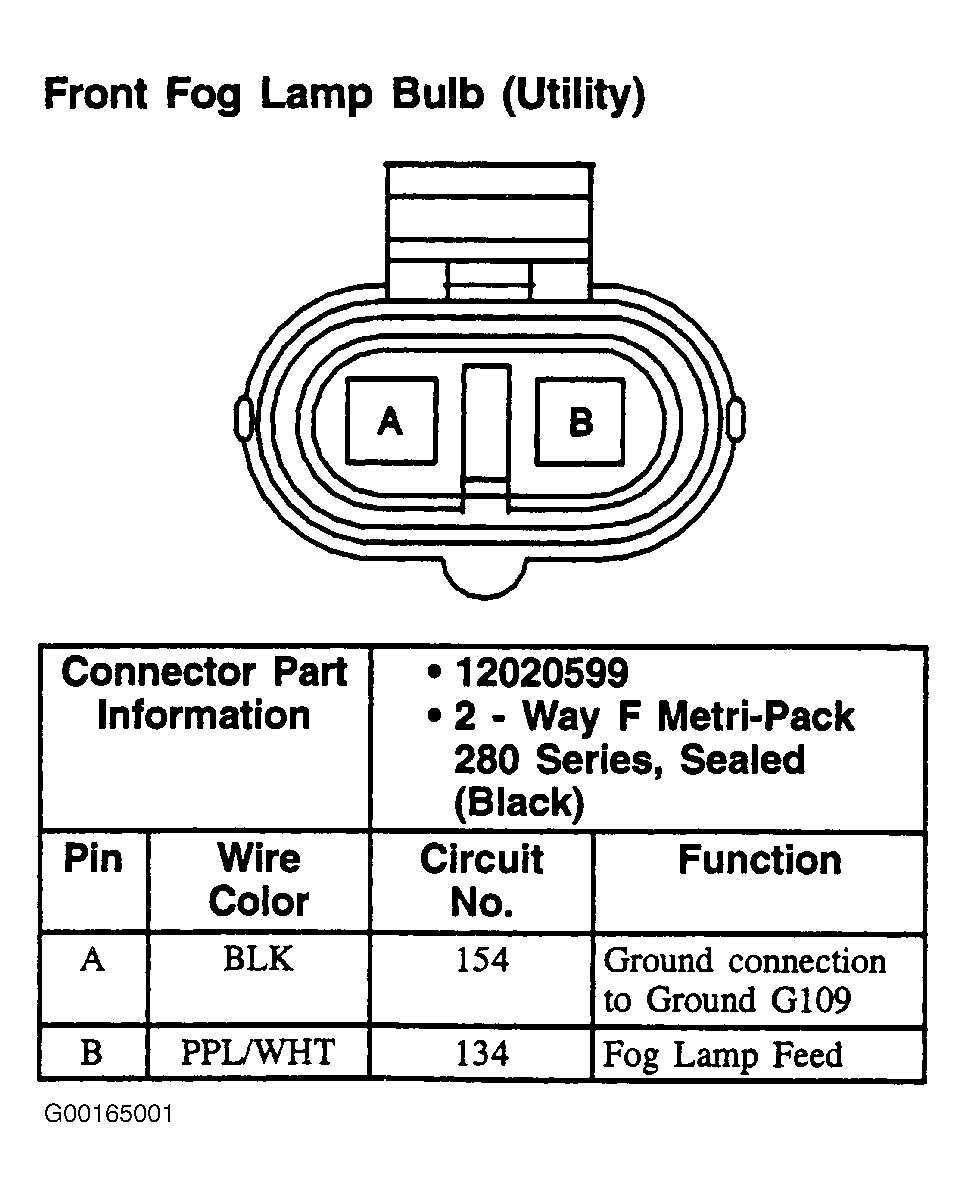

Fig 1: Front Fog Lamp Bulb (Utility) - 2-Pin Connector, Black
G00165001Courtesy of GENERAL MOTORS CORP.
