Connector Terminal Identification
›
Front Side Marker Lamp
Front Side Marker Lamp

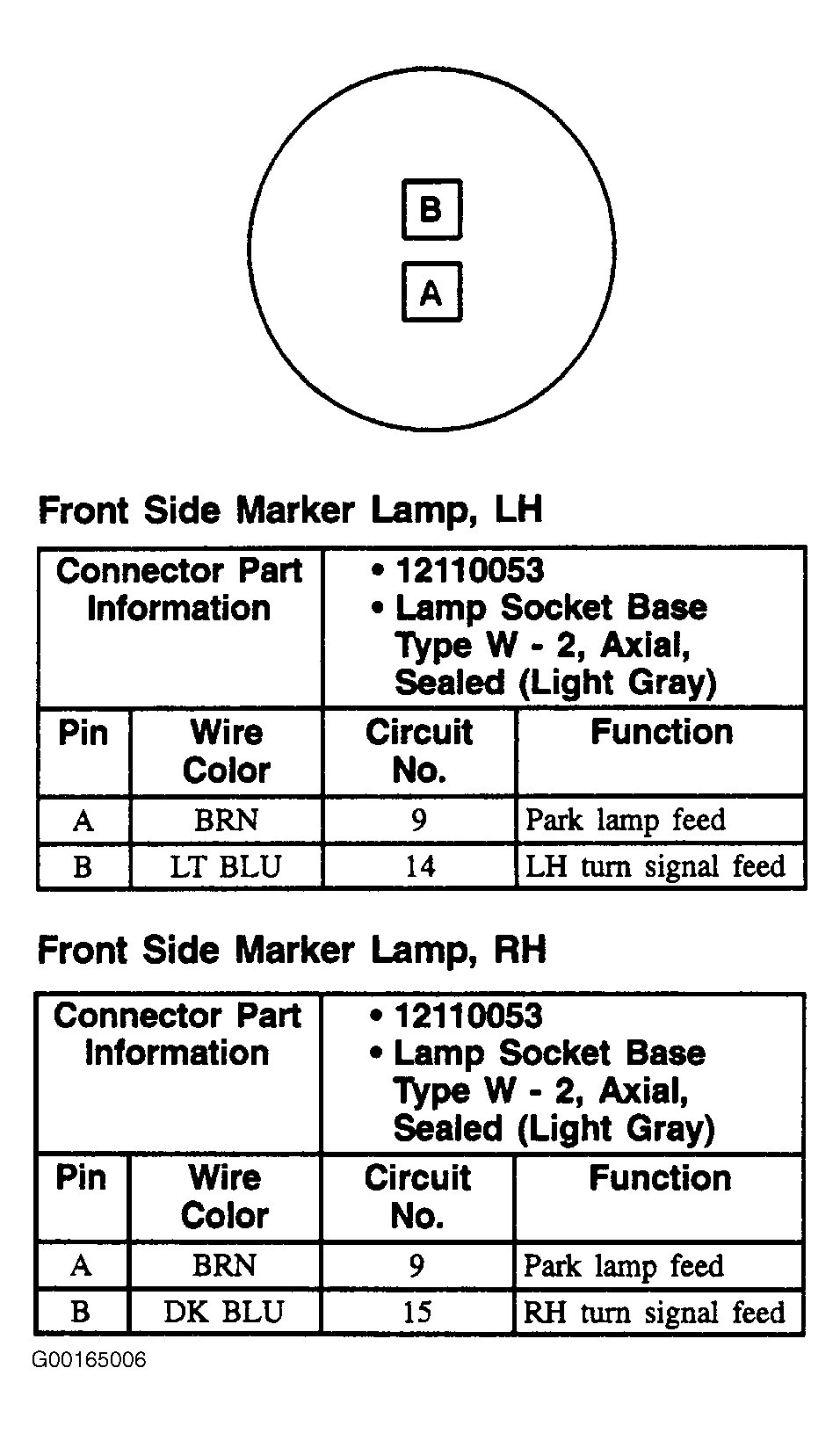

Fig 1: Front Side Marker Lamp - 2-Pin Connector, Light Gray
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
