Front Side Window Regulator Motor

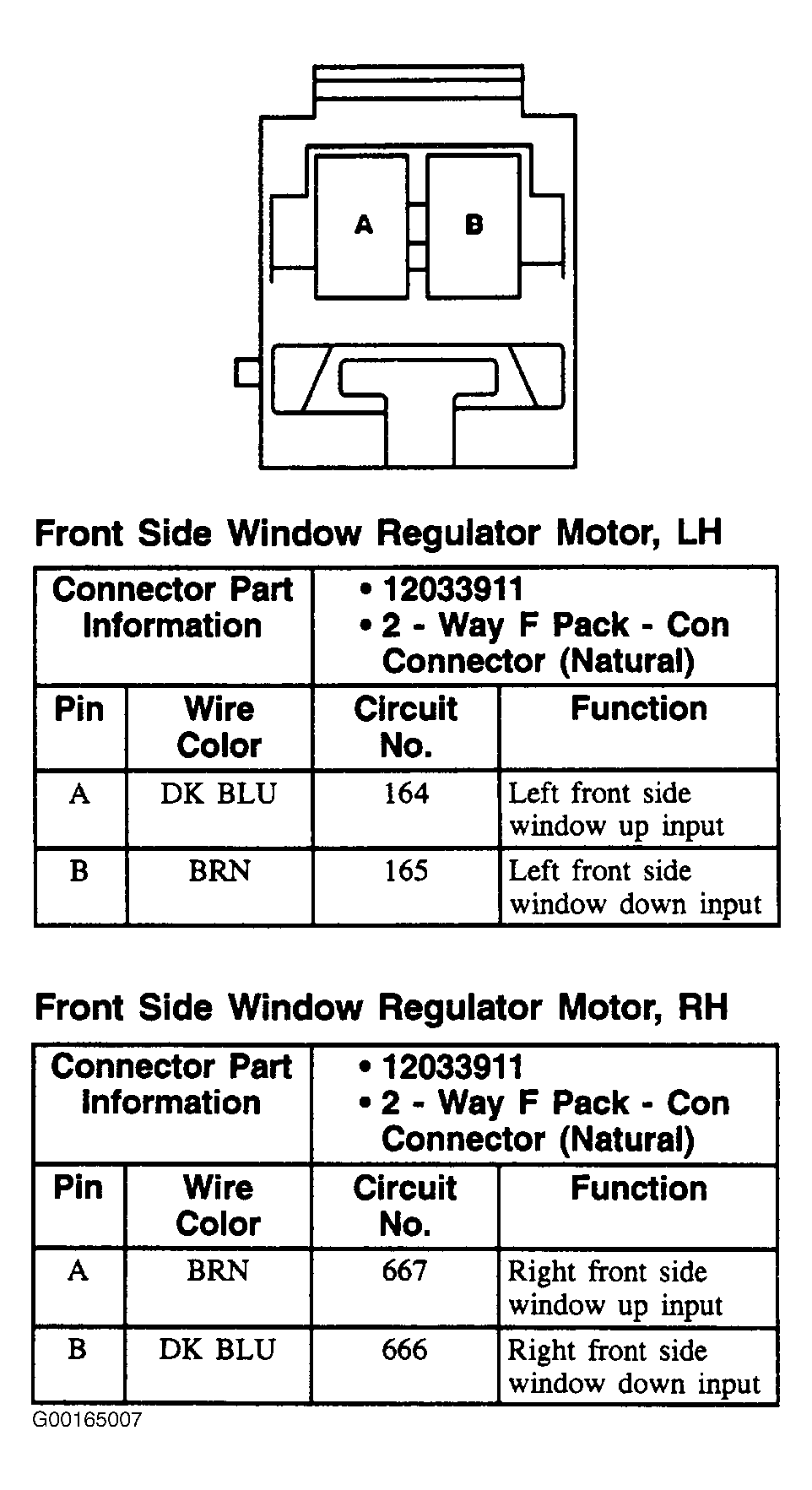

Fig 1: Front Side Window Regulator Motor - 2-Pin Connector, Natural
G00165007Courtesy of GENERAL MOTORS CORP.
