Headlamp High Beam Bulb (Composite)

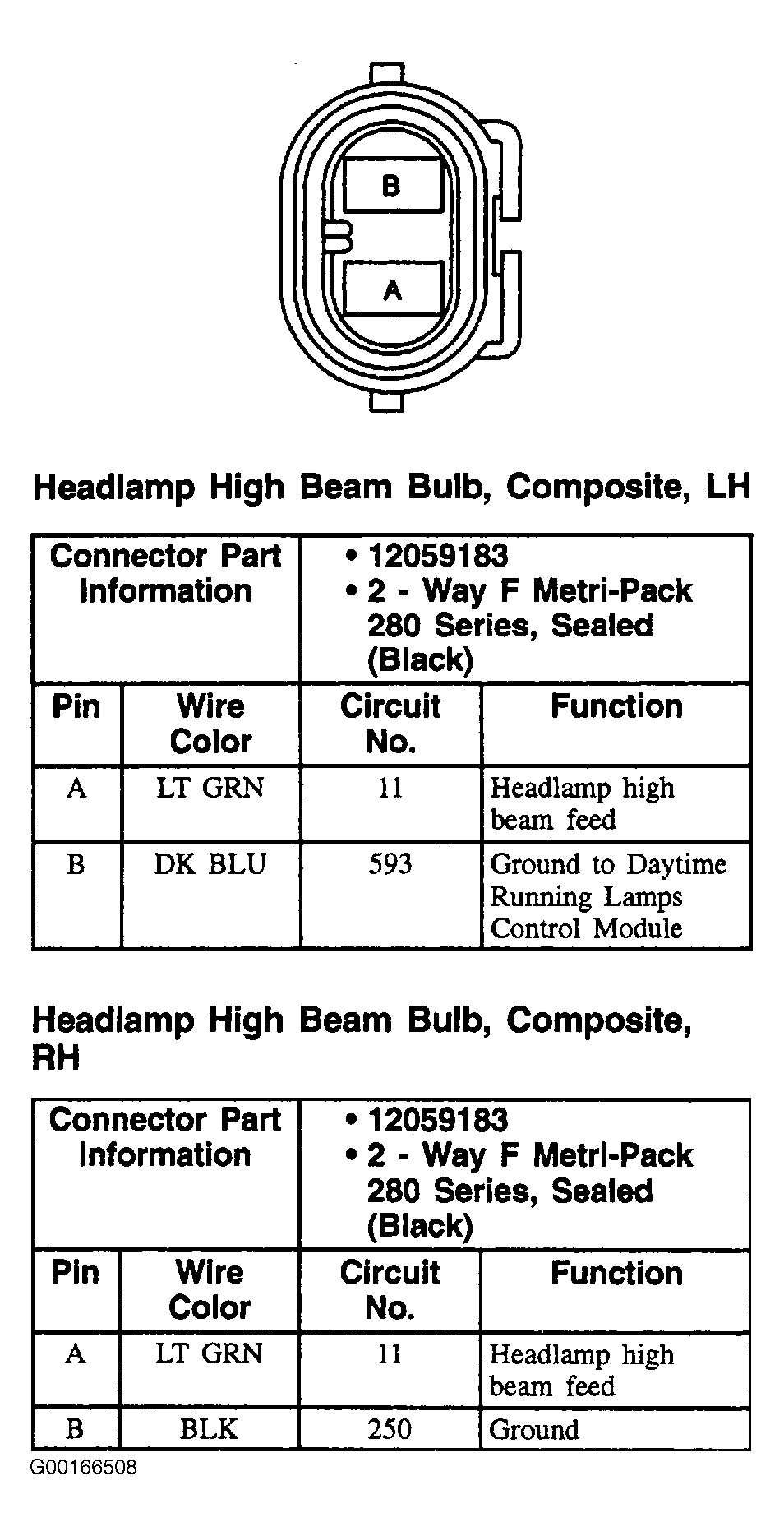

Fig 1: Headlamp High Beam Bulb (Composite) - 2-Pin Connector, Black
G00166508Courtesy of GENERAL MOTORS CORP.
