Connector Terminal Identification
›
Headlamp Sealed Beam Bulb
Headlamp Sealed Beam Bulb

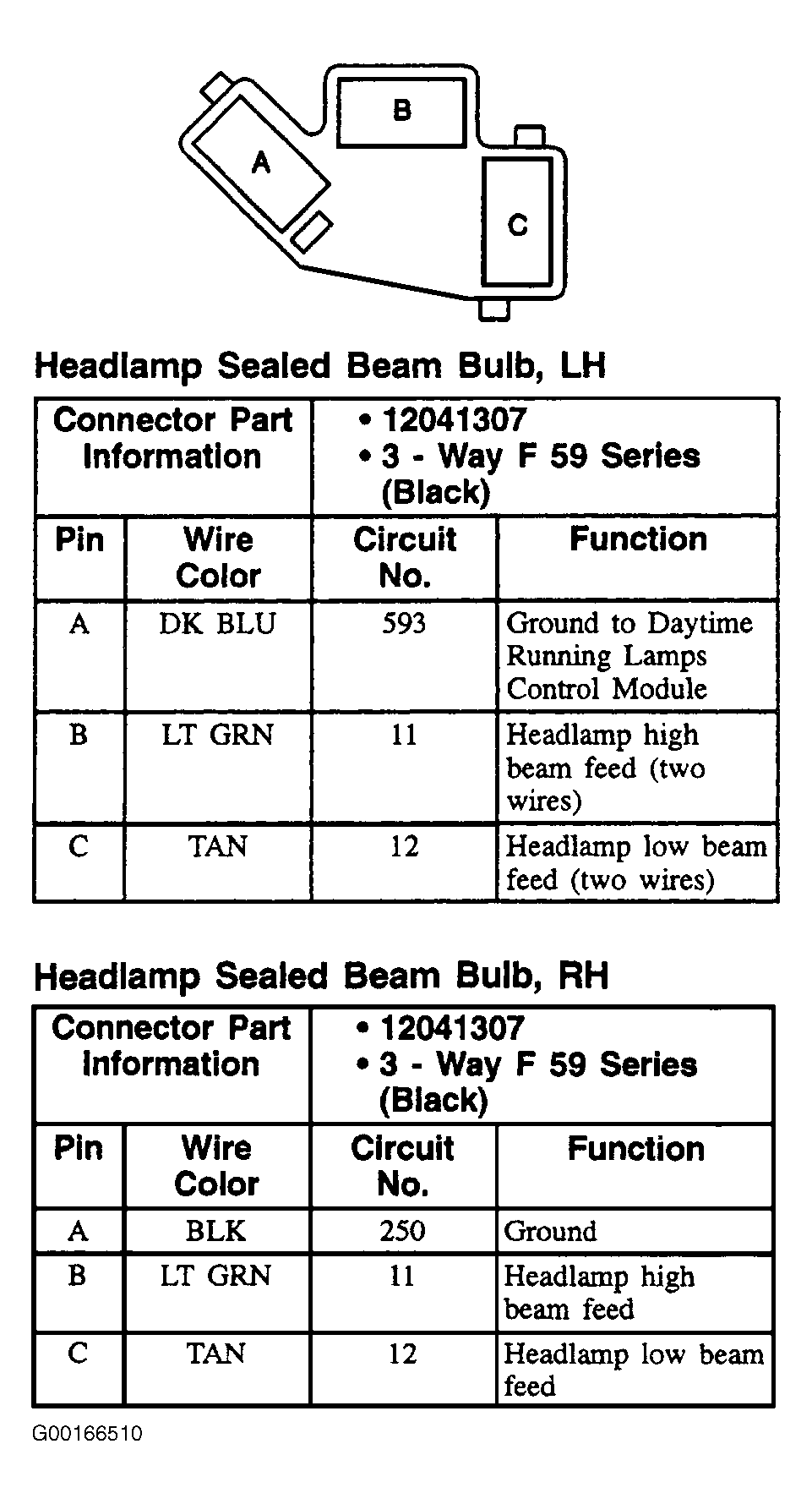

Fig 1: Headlamp Sealed Beam Bulb - 3-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
