Heater & A/C Controller C3 (Blower Controls)

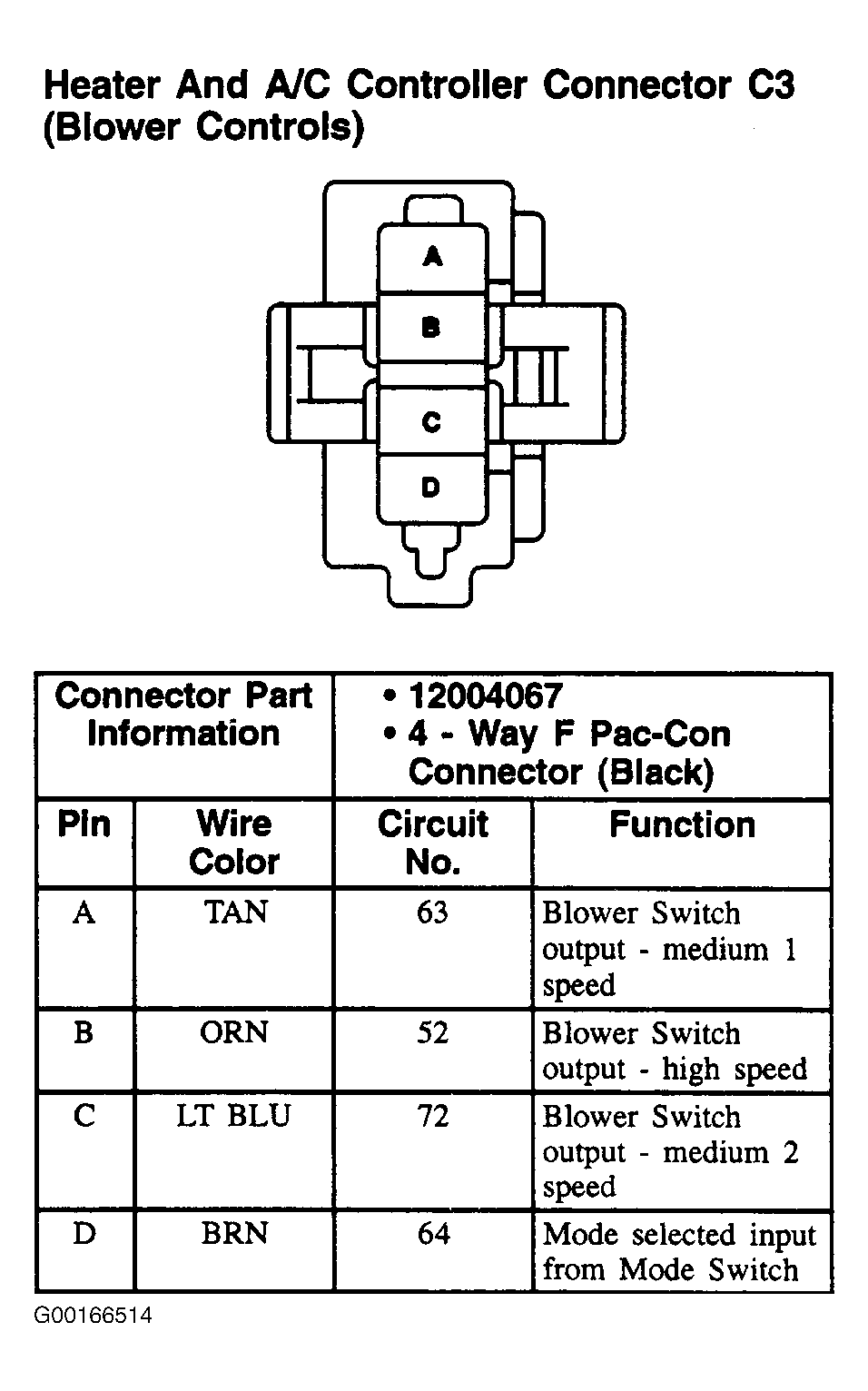

Fig 1: Heater & A/C Controller C3 (Blower Controls) - 4-Pin Connector, Black
G00166514Courtesy of GENERAL MOTORS CORP.
