High Mounted Stop Lamp Relay

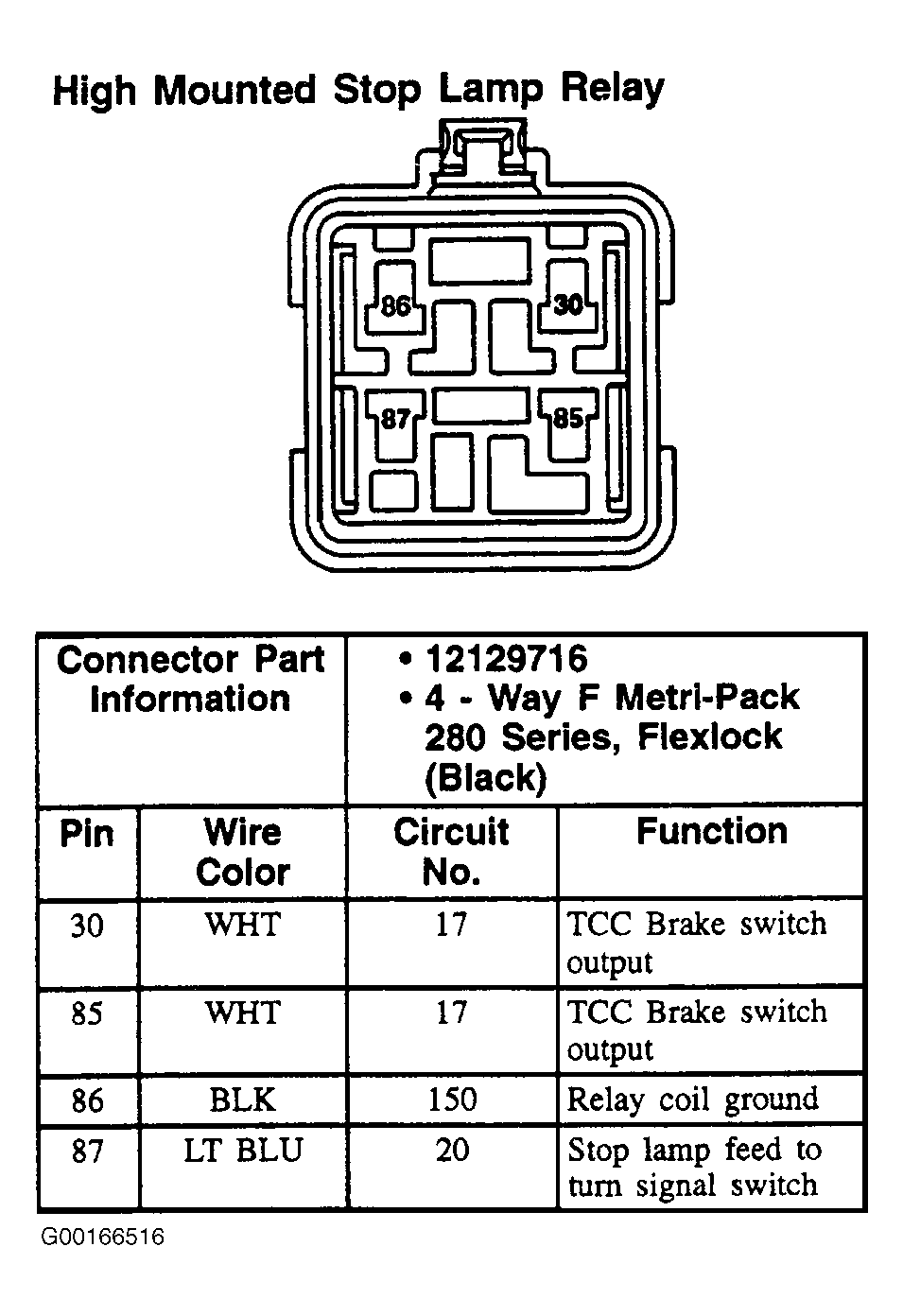

Fig 1: High Mounted Stop Lamp Relay - 4-Pin Connector, Black
G00166516Courtesy of GENERAL MOTORS CORP.
