Inflatable Restraint (Discriminating ) Sensor (RH)

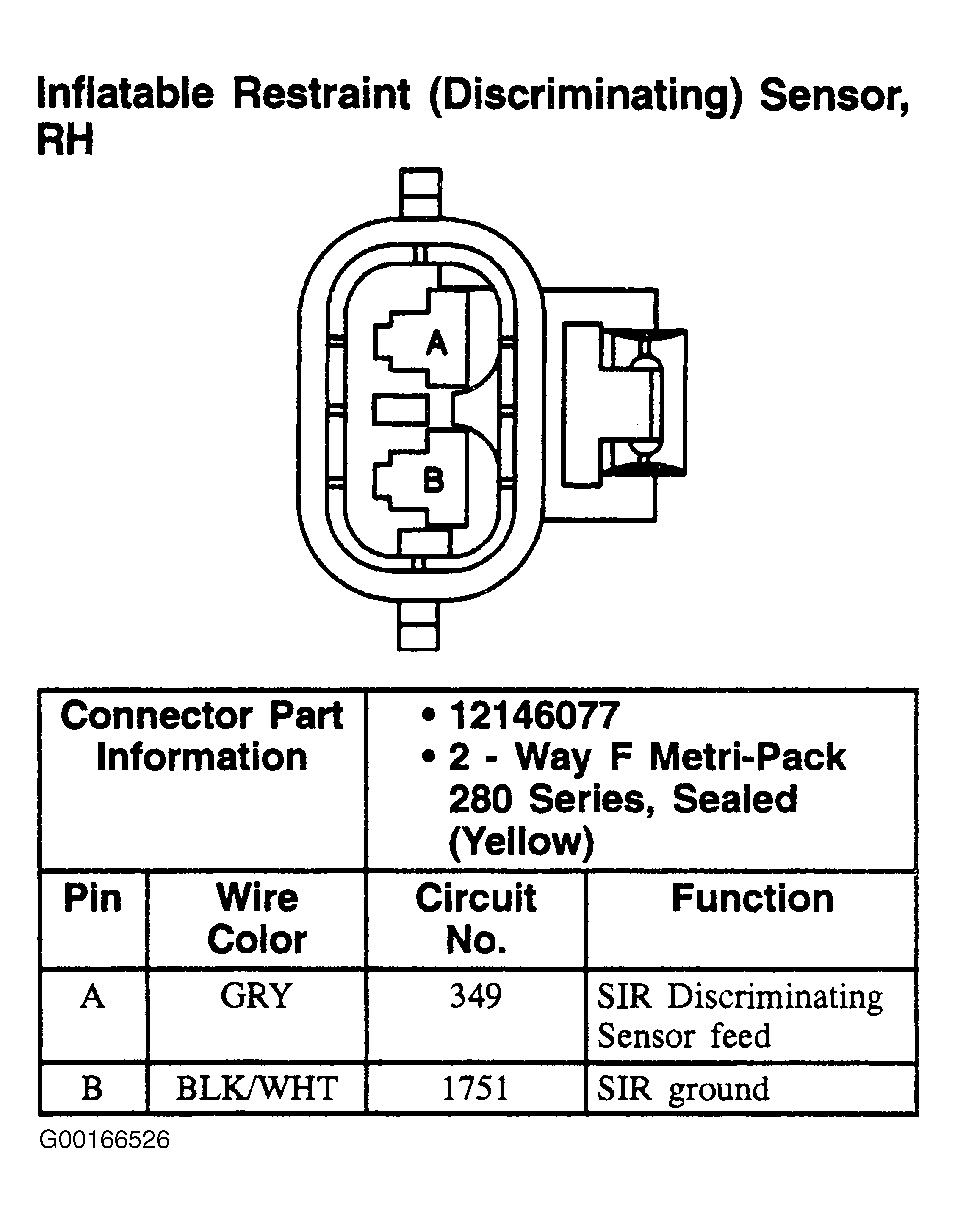

Fig 1: Inflatable Restraint (Discriminating) Sensor (RH) - 2-Pin Connector, Yellow
G00166526Courtesy of GENERAL MOTORS CORP.
