Connector Terminal Identification
›
Instrument Cluster Connectors
›
Instrument Cluster (W/ Column Shift A/T)
Instrument Cluster (W/ Column Shift A/T)

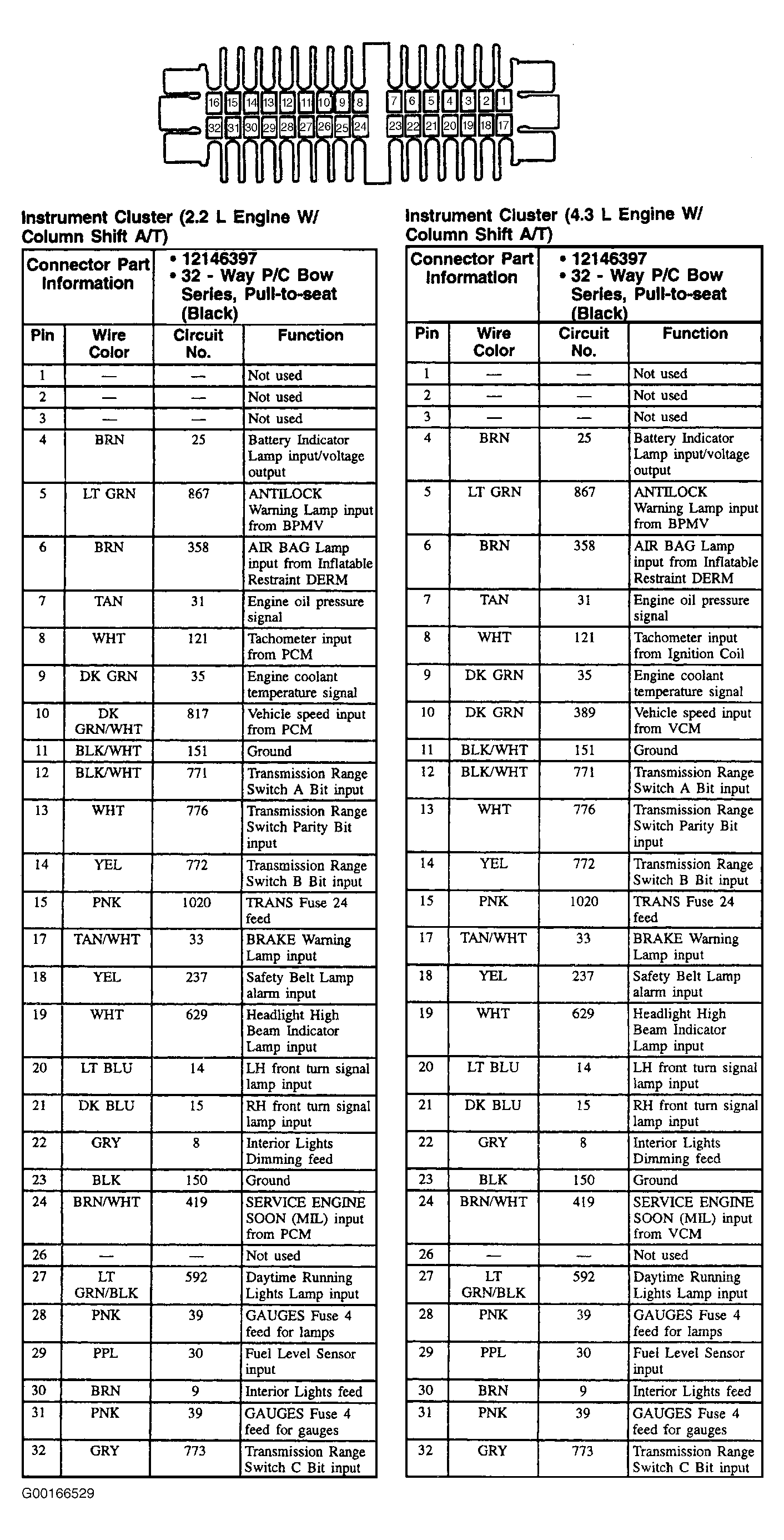

Fig 1: Instrument Cluster (W/ Column Shift A/T) - 32-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
