Instrument Cluster (W/ M/T)

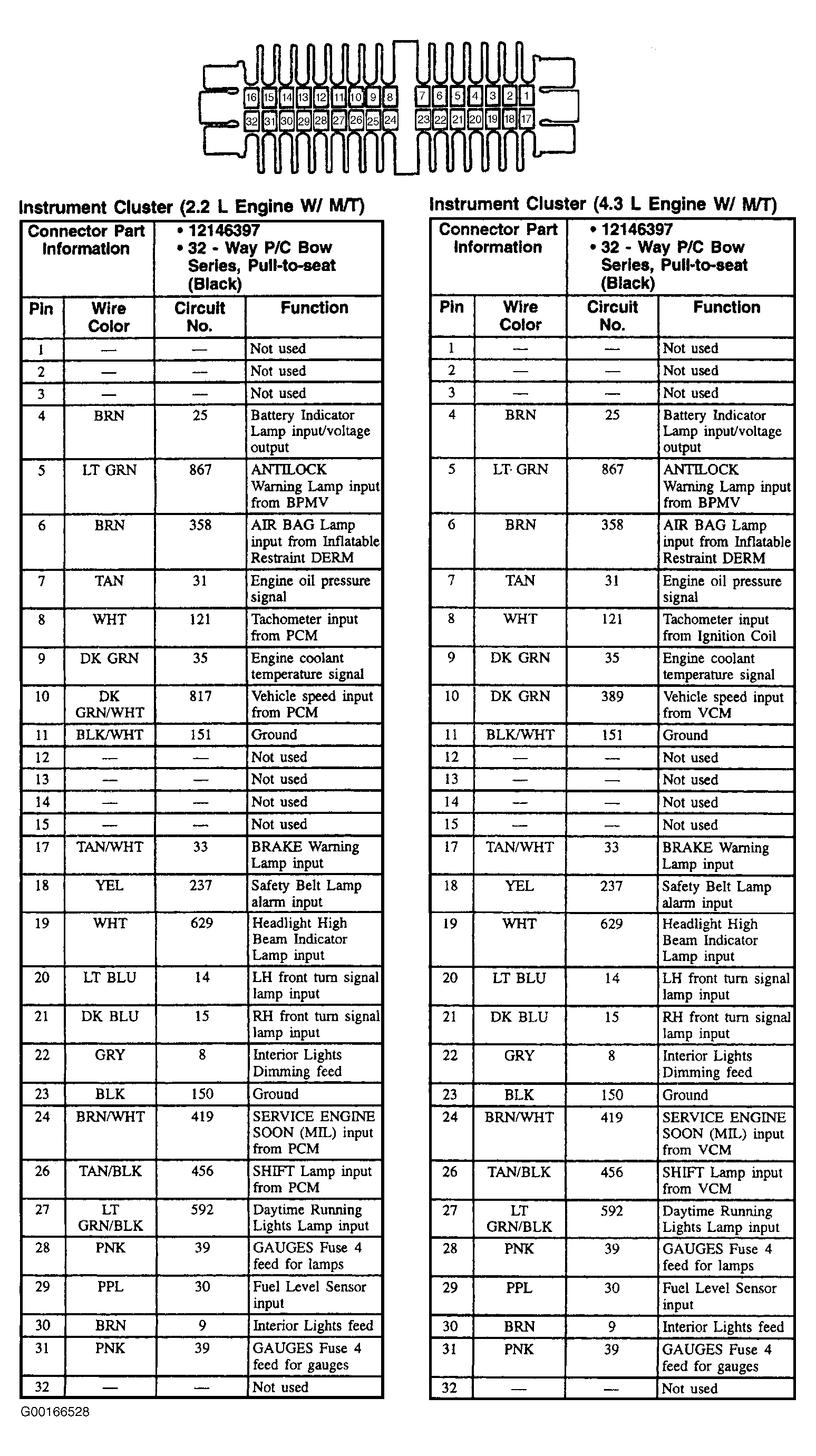

Fig 1: Instrument Cluster (W/ M/T) - 32-Pin Connector, Black
G00166528Courtesy of GENERAL MOTORS CORP.
