Connector Terminal Identification
›
Liftgate LIFTGLASS Jamb Switch
Liftgate LIFTGLASS Jamb Switch

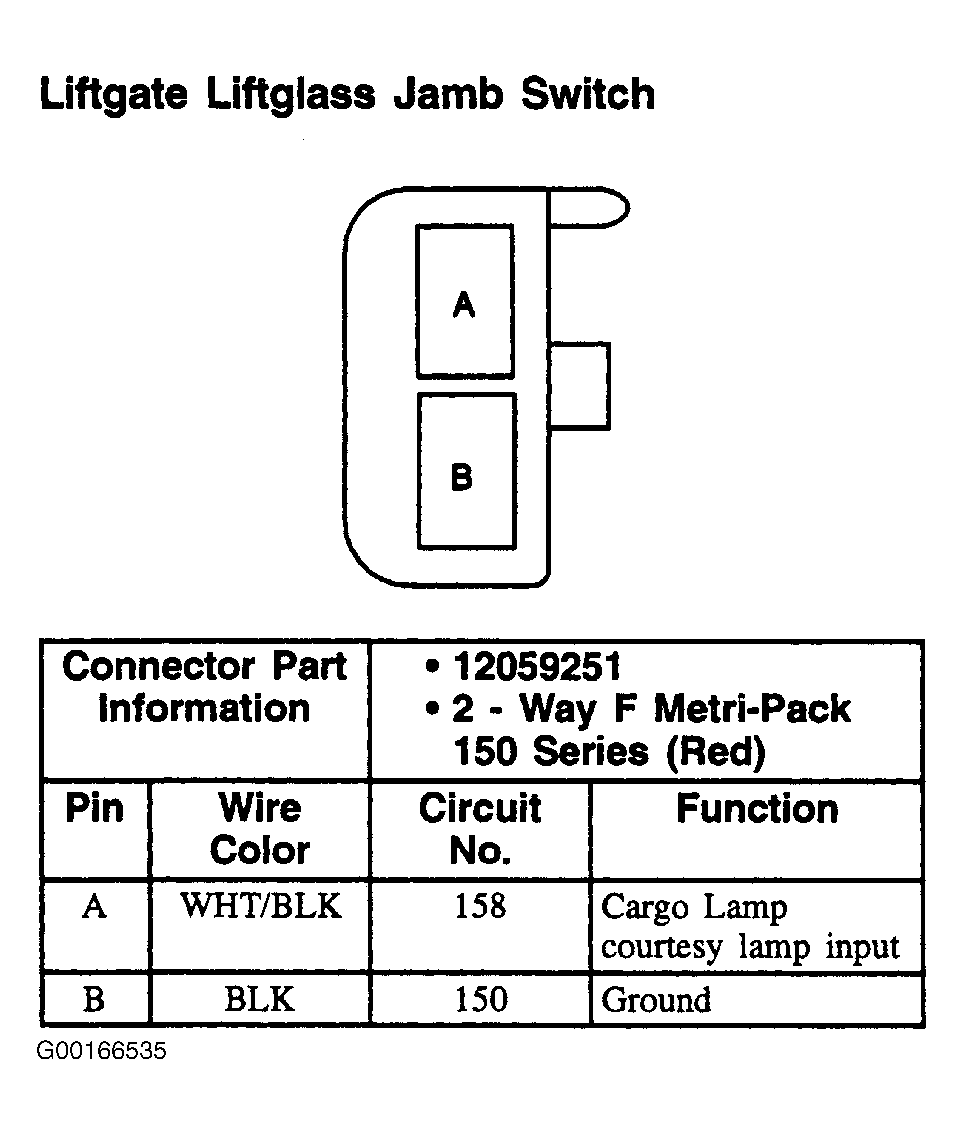

Fig 1: Liftgate Liftglass Jamb Switch - 2-Pin Connector, Red
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
