Manifold Absolute Pressure Sensor (2.2L)

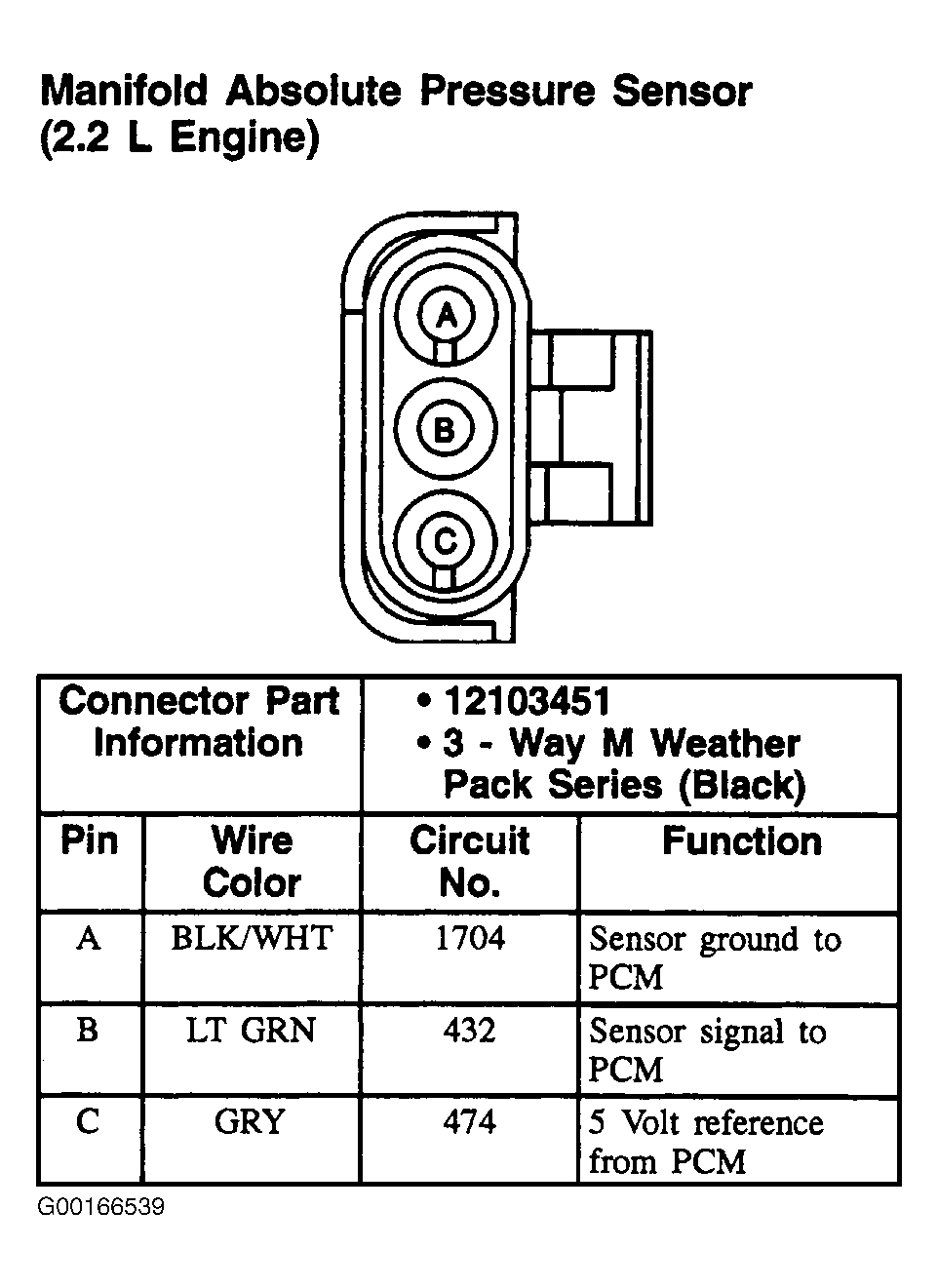

Fig 1: Manifold Absolute Pressure Sensor (2.2L) - 3-Pin Connector, Black
G00166539Courtesy of GENERAL MOTORS CORP.
