Manifold Absolute Pressure Sensor (4.3L)

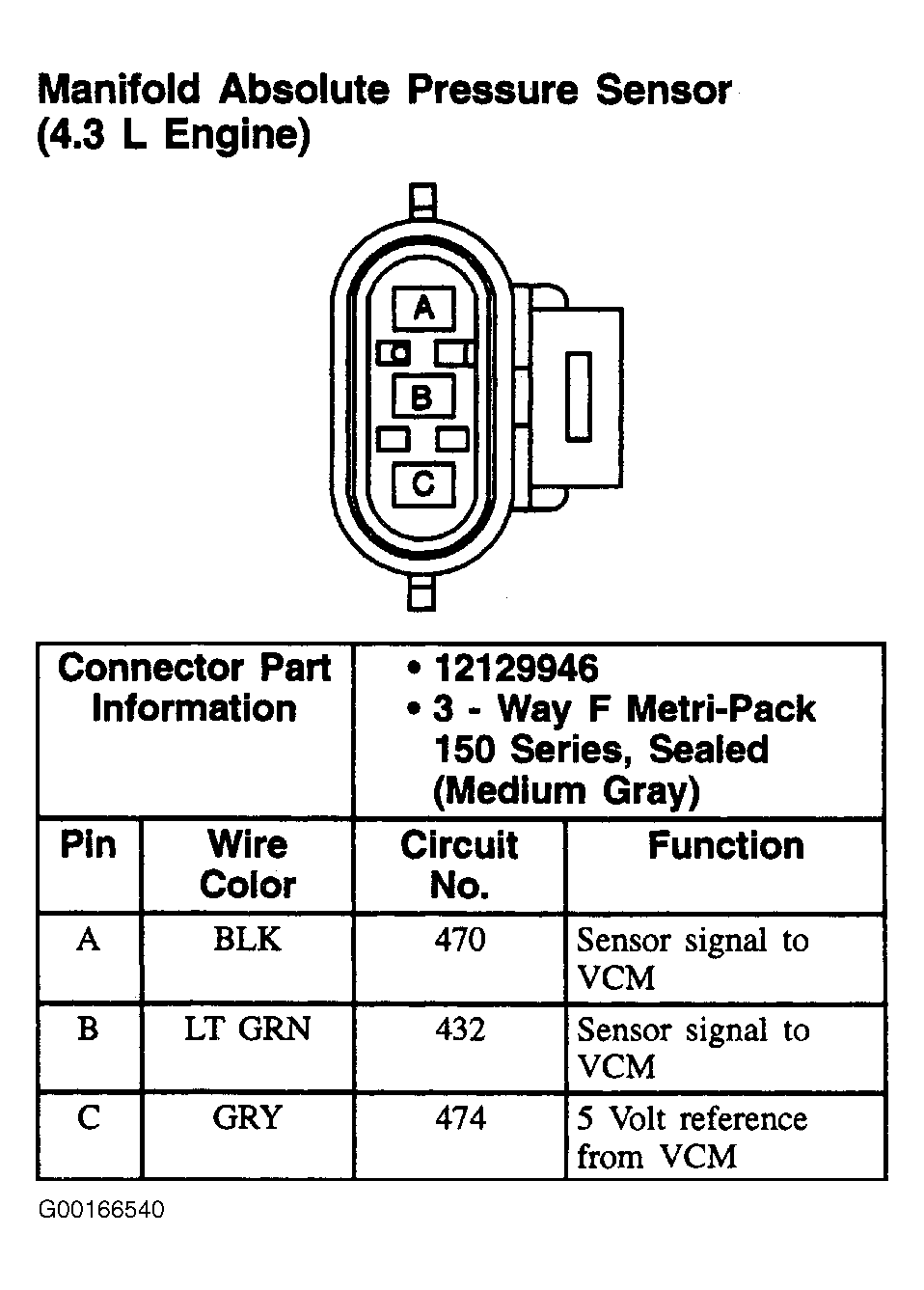

Fig 1: Manifold Absolute Pressure Sensor (4.3L) - 3-Pin Connector, Medium Gray
G00166540Courtesy of GENERAL MOTORS CORP.
