GMC
›
1997
›
Jimmy 4D Utility, AWD
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Connector Terminal Identification
›
Radio Speaker Connectors
›
Radio Speaker
Radio Speaker

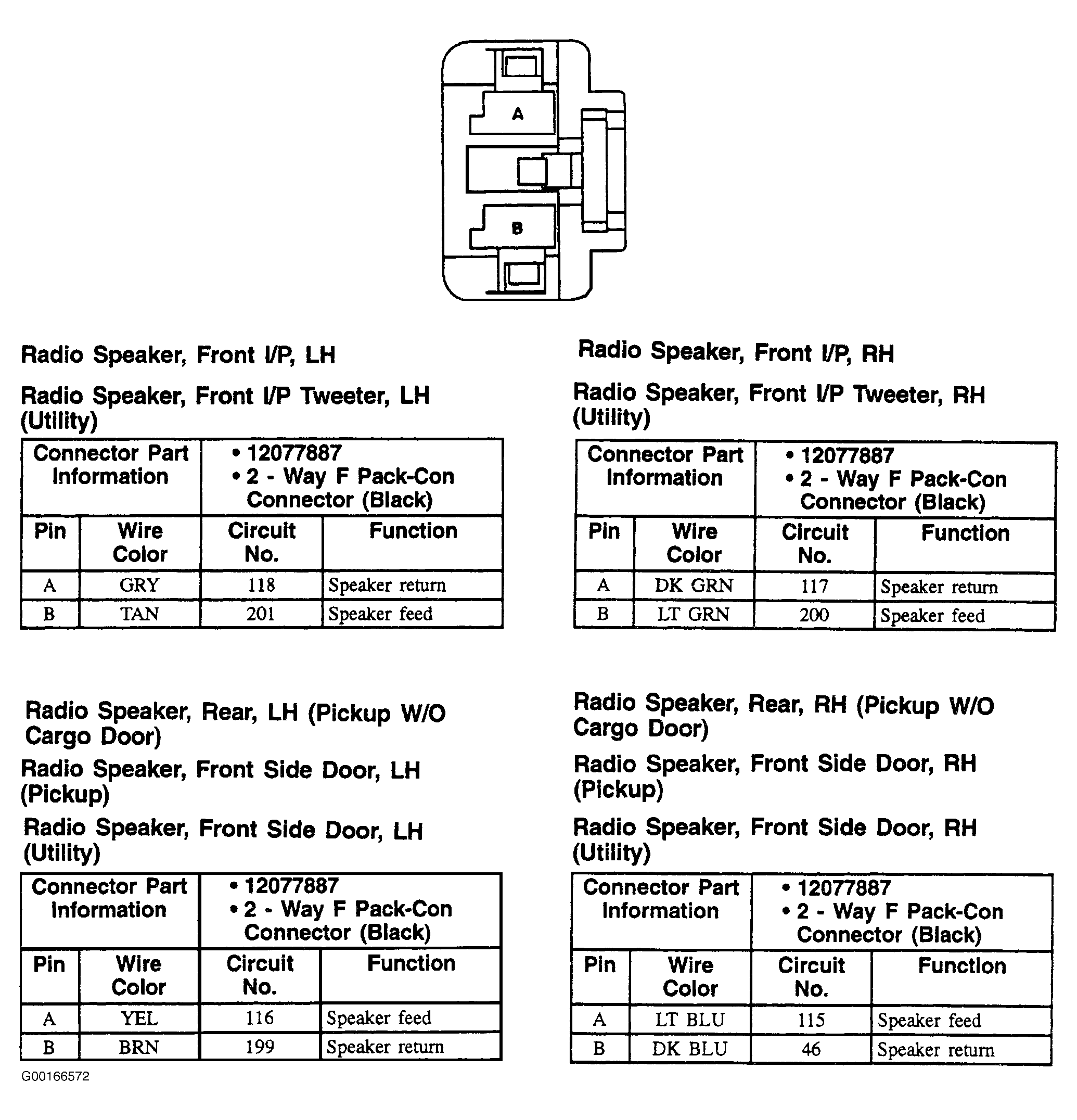

Fig 1: Radio Speaker - 2-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
