Connector Terminal Identification
›
Remote Control Door Lock Receiver (Pickup)
Remote Control Door Lock Receiver (Pickup)

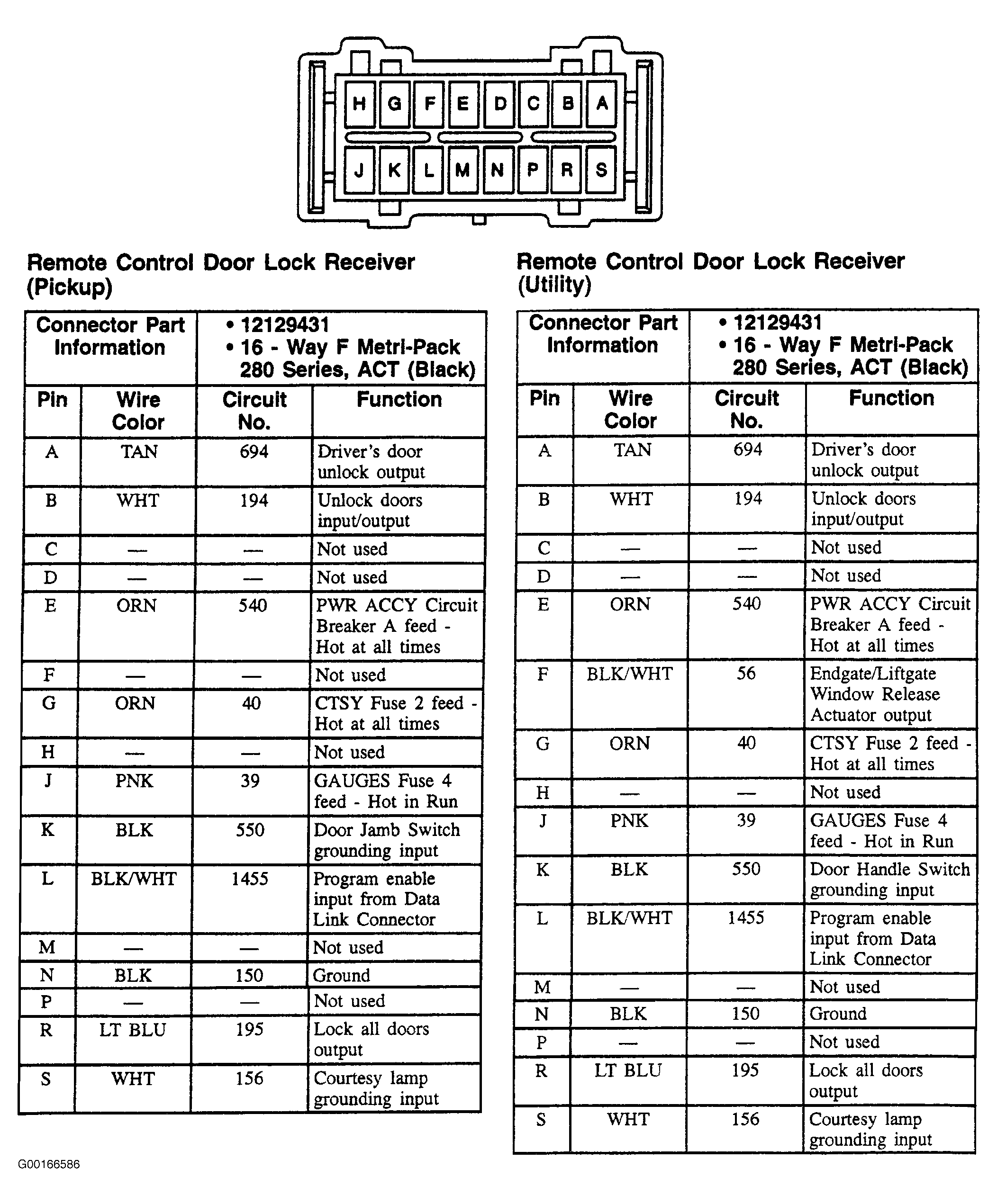

Fig 1: Remote Control Door Lock Receiver - 16-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
