Side Window Lockout Switch

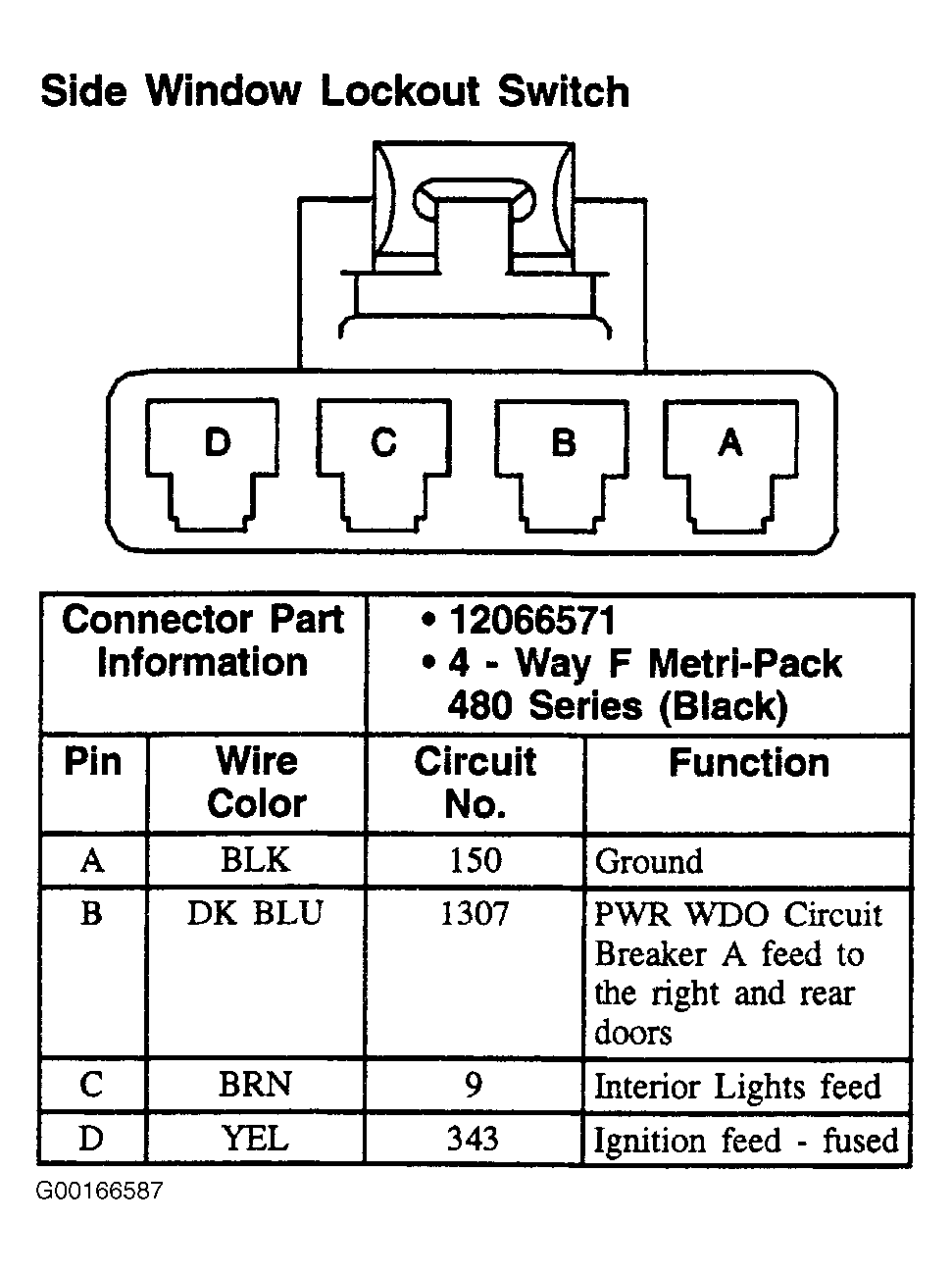

Fig 1: Side Window Lockout Switch - 4-Pin Connector, Black
G00166587Courtesy of GENERAL MOTORS CORP.
