Connector Terminal Identification
›
Starter Relay
Starter Relay

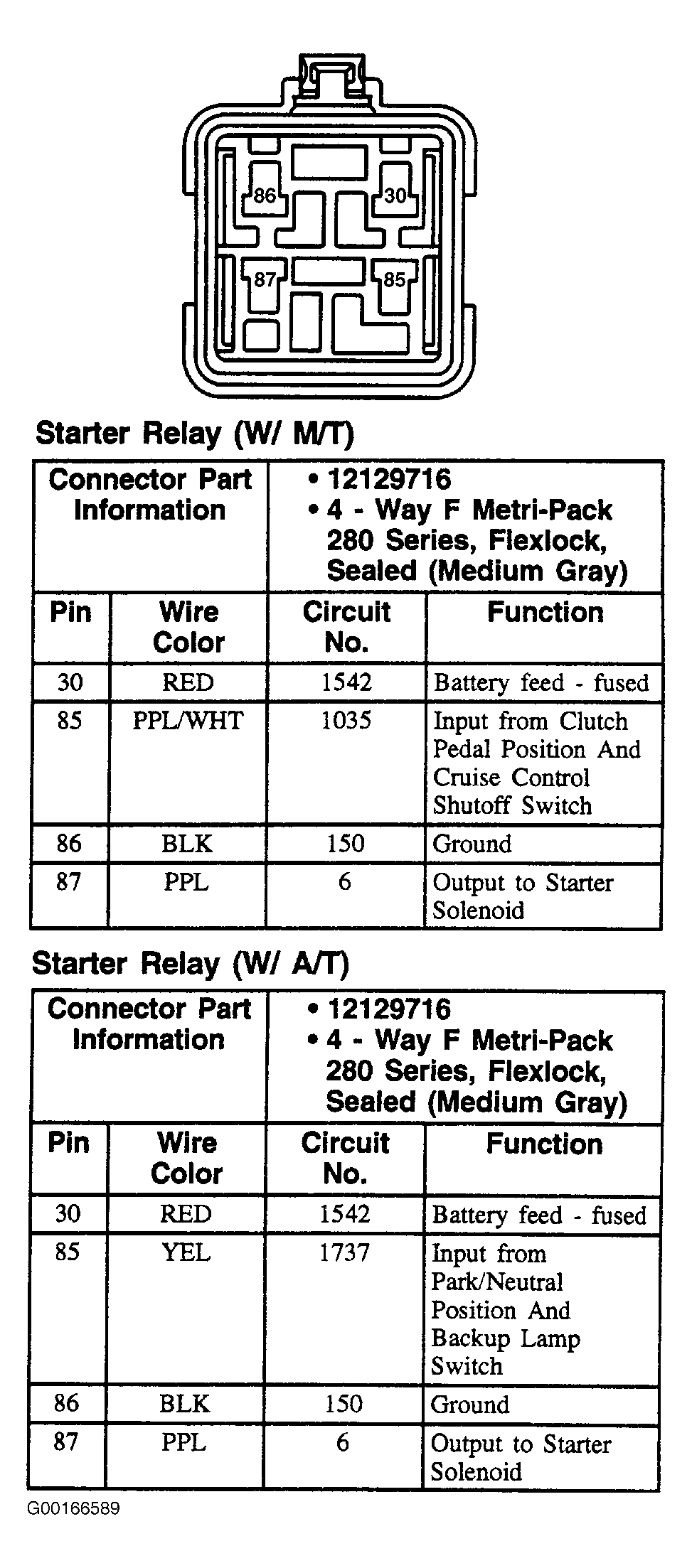

Fig 1: Starter Relay - 4-Pin Connector, Medium Gray
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
