Windshield Washer Pump (Rear - Utility)

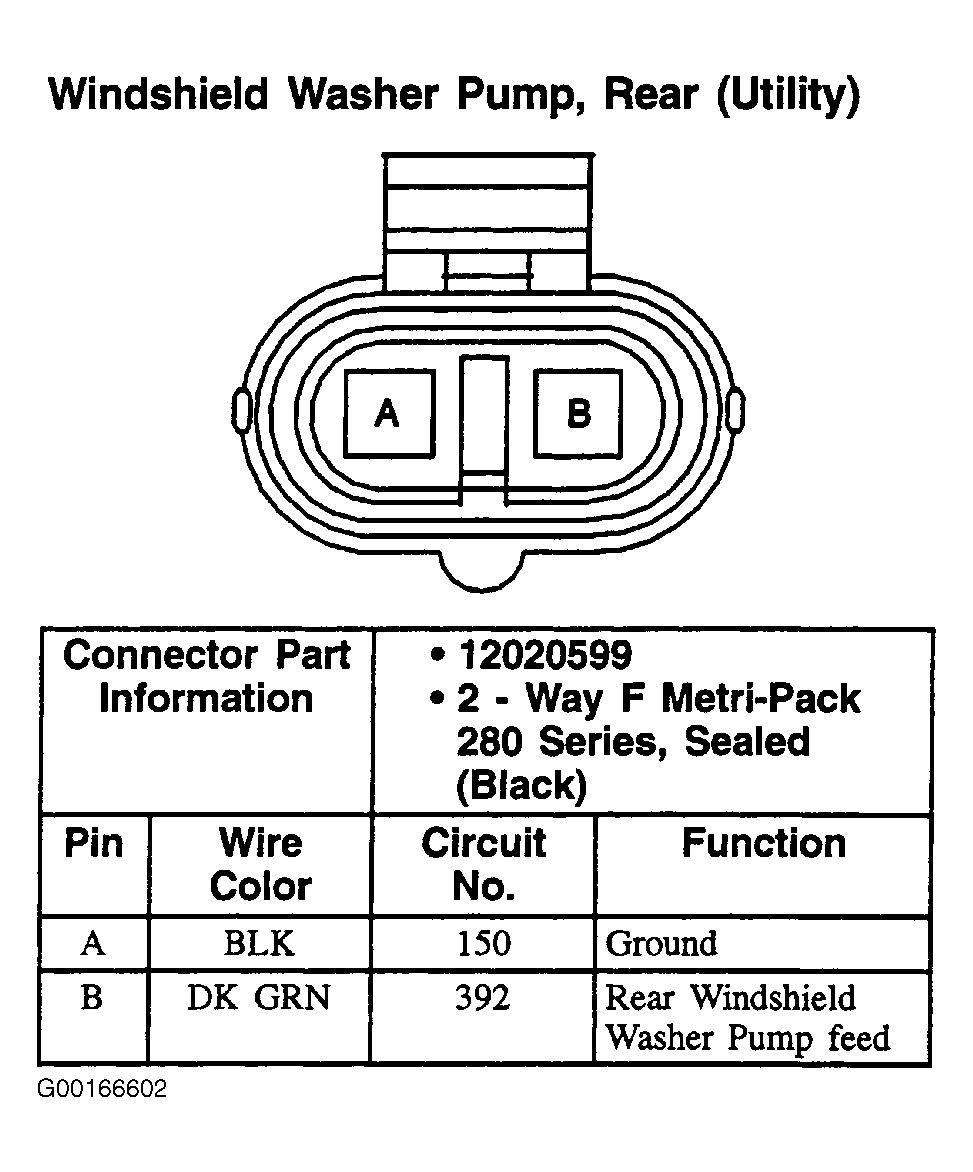

Fig 1: Windshield Washer Pump (Rear - Utility) - 2-Pin Connector, Black
G00166602Courtesy of GENERAL MOTORS CORP.
