Connector Terminal Identification
›
A/C Compressor Relay
A/C Compressor Relay

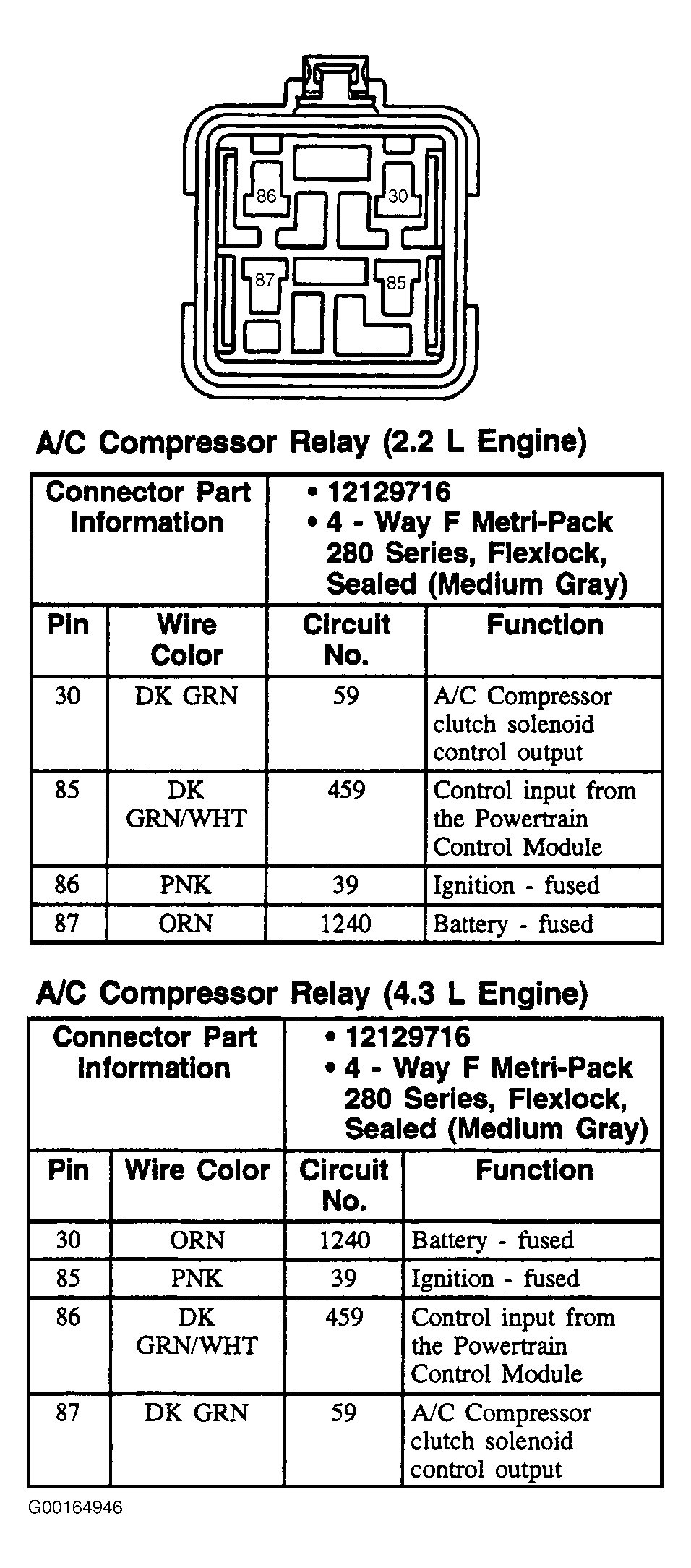

Fig 1: A/C Compressor Relay - 4-Pin Connector, Medium Gray
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
