Home › GMC › 1997 › Jimmy 4D Utility, RWD › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › Backup Lamp Switch (Manual Transmission)

Backup Lamp Switch (Manual Transmission)

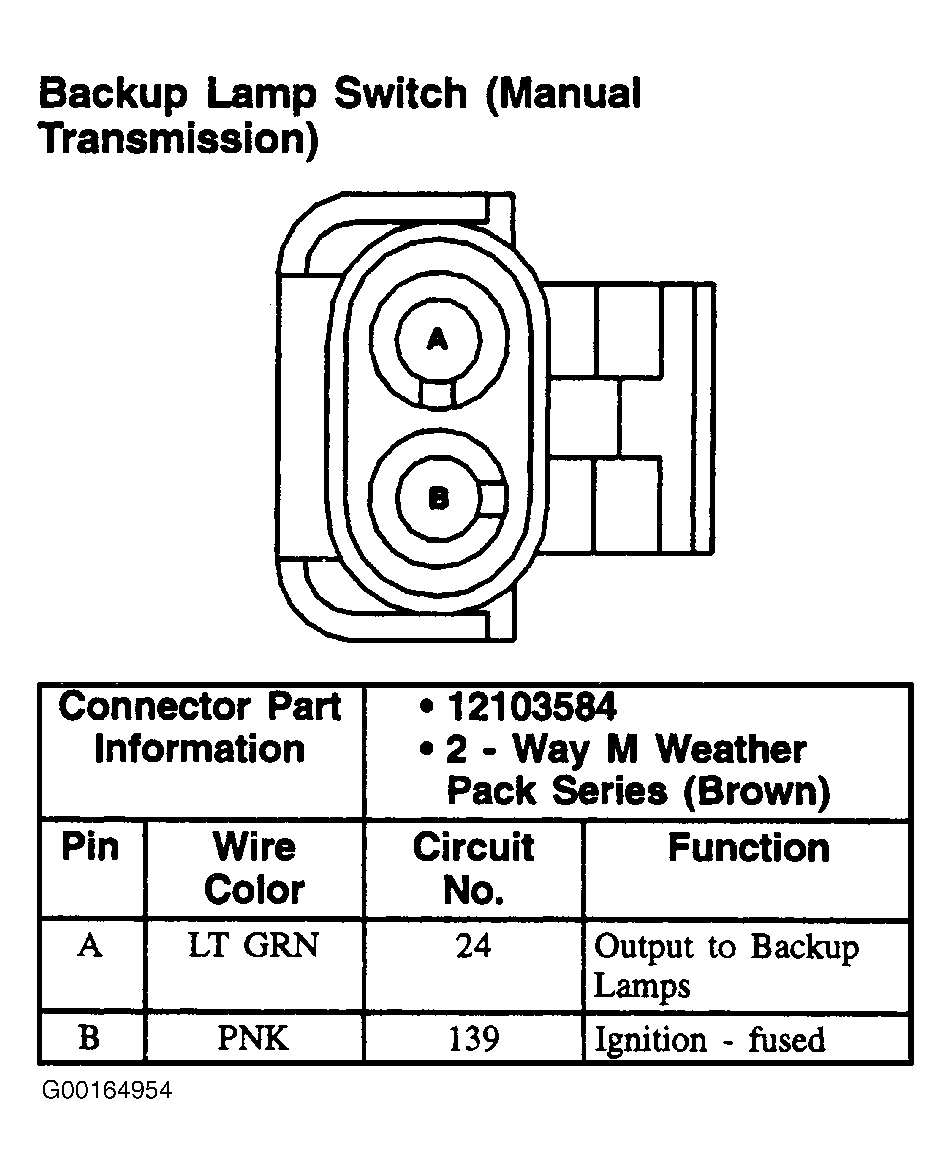

Fig 1: Backup Lamp Switch (Manual Transmission) - 2-Pin Connector, Brown
G00164954Courtesy of GENERAL MOTORS CORP.
