Home › GMC › 1997 › Jimmy 4D Utility, RWD › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › C100 To C603 › C128-C129

C100 To C603: C128-C129

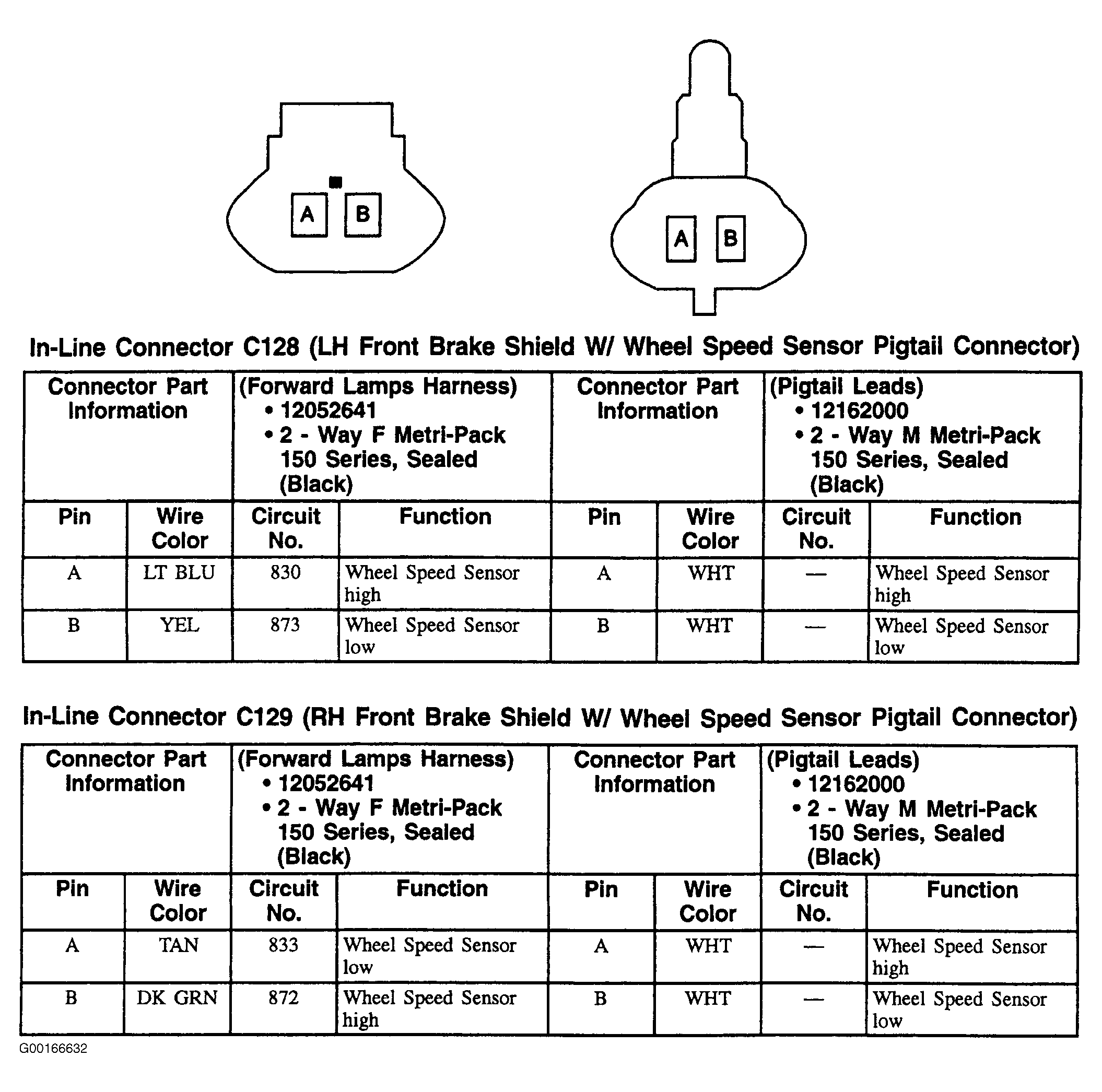

Fig 1: C128-C129 - 2-Pin Connector, Black
G00166632Courtesy of GENERAL MOTORS CORP.
