Connector Terminal Identification
›
Data Link
Data Link

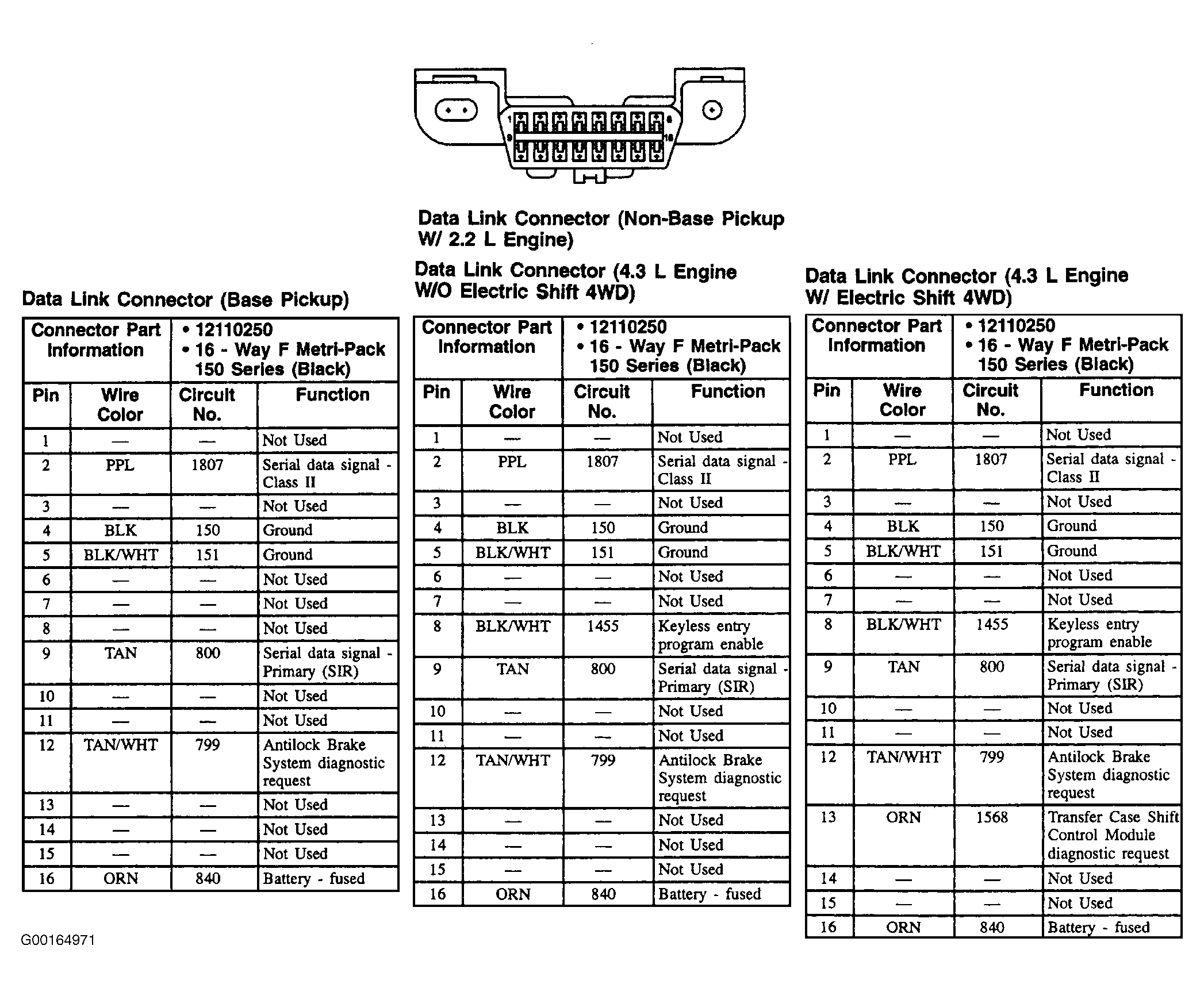

Fig 1: Data Link - 16-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
