Fuel Tank Pressure Sensor
Fuel Tank Pressure Sensor

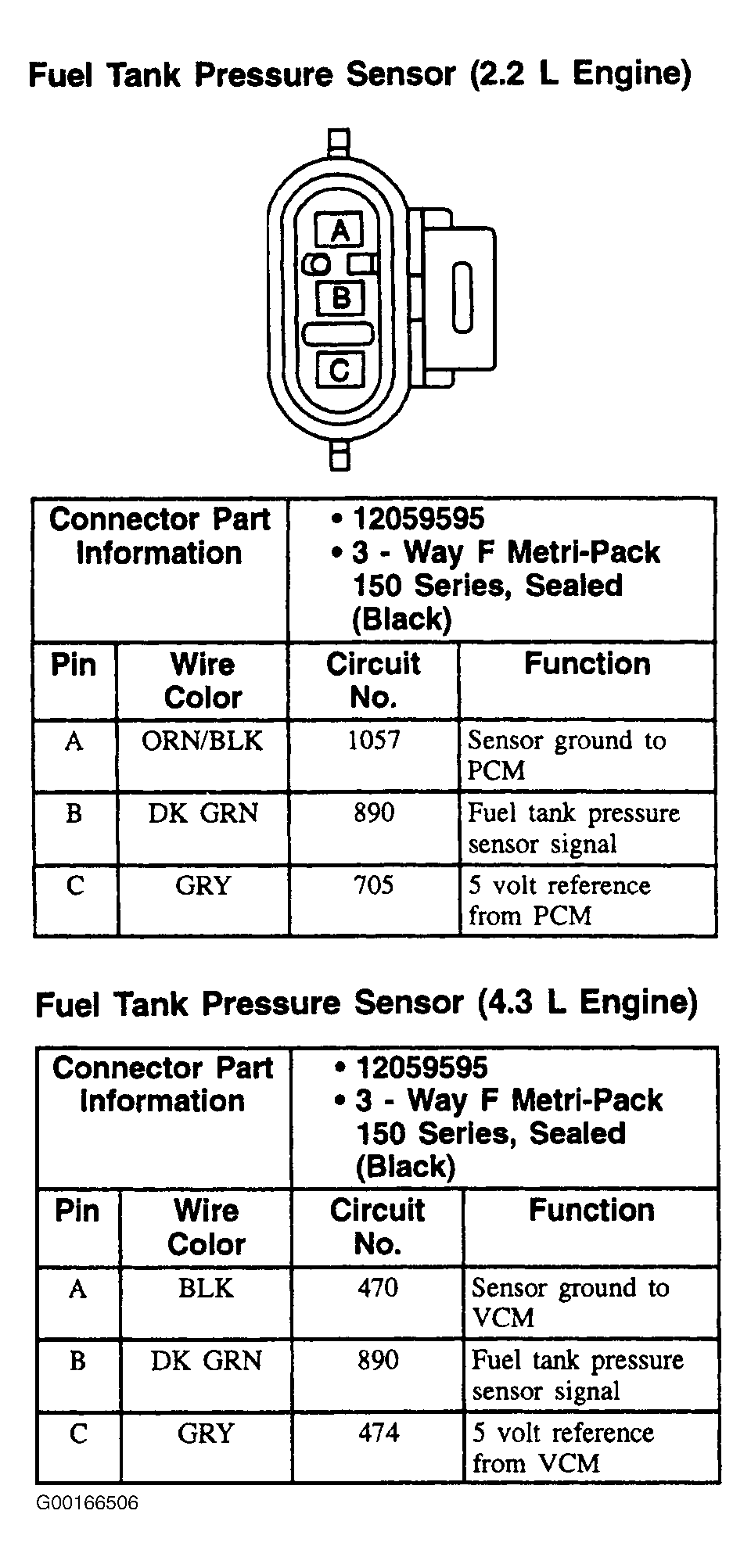

Fig 1: Fuel Tank Pressure Sensor - 3-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
