Connector Terminal Identification: Generator

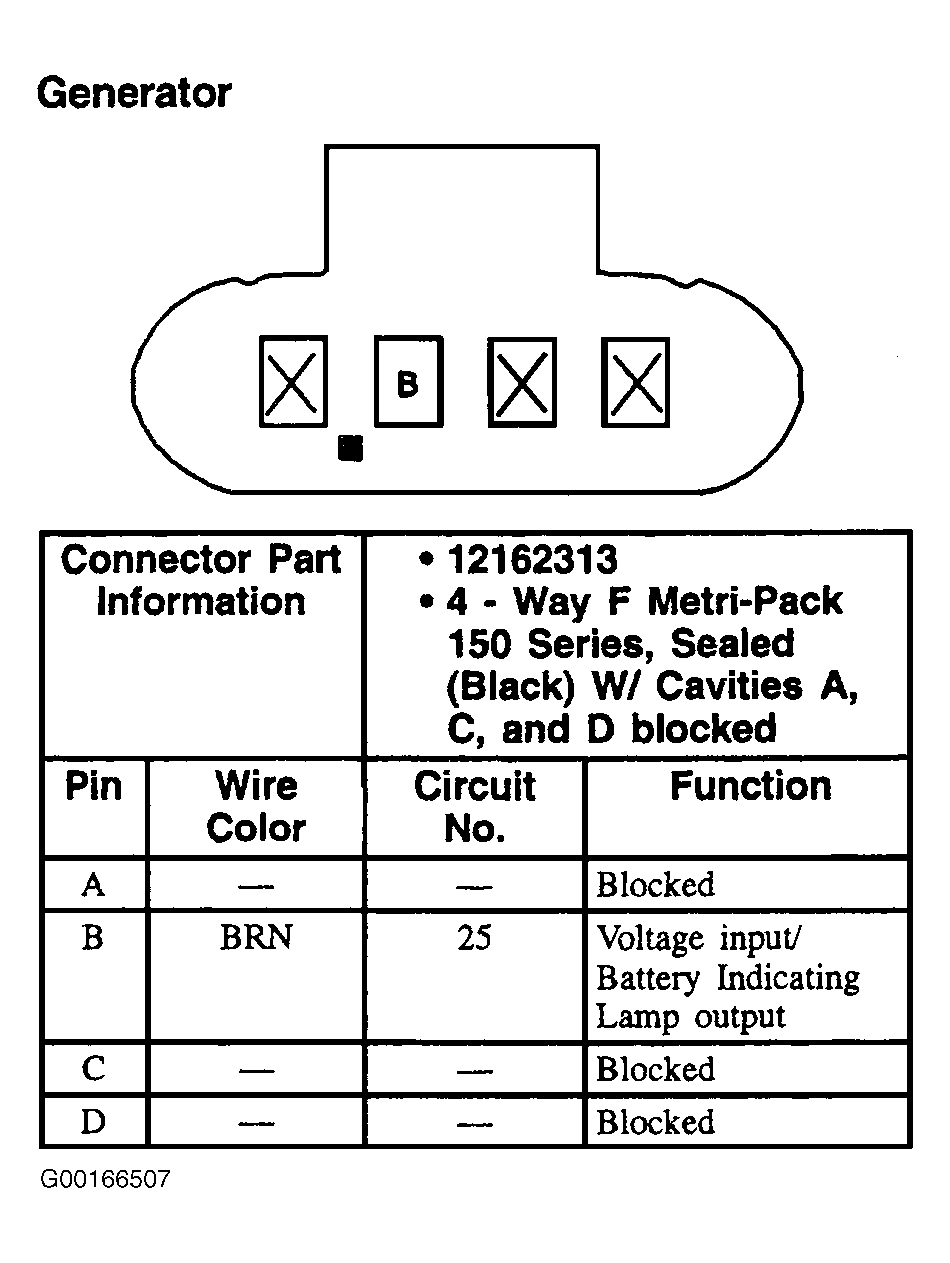

Fig 1: Generator - 4-Pin Connector, Black
G00166507Courtesy of GENERAL MOTORS CORP.
