Inflatable Restraint Arming Sensor

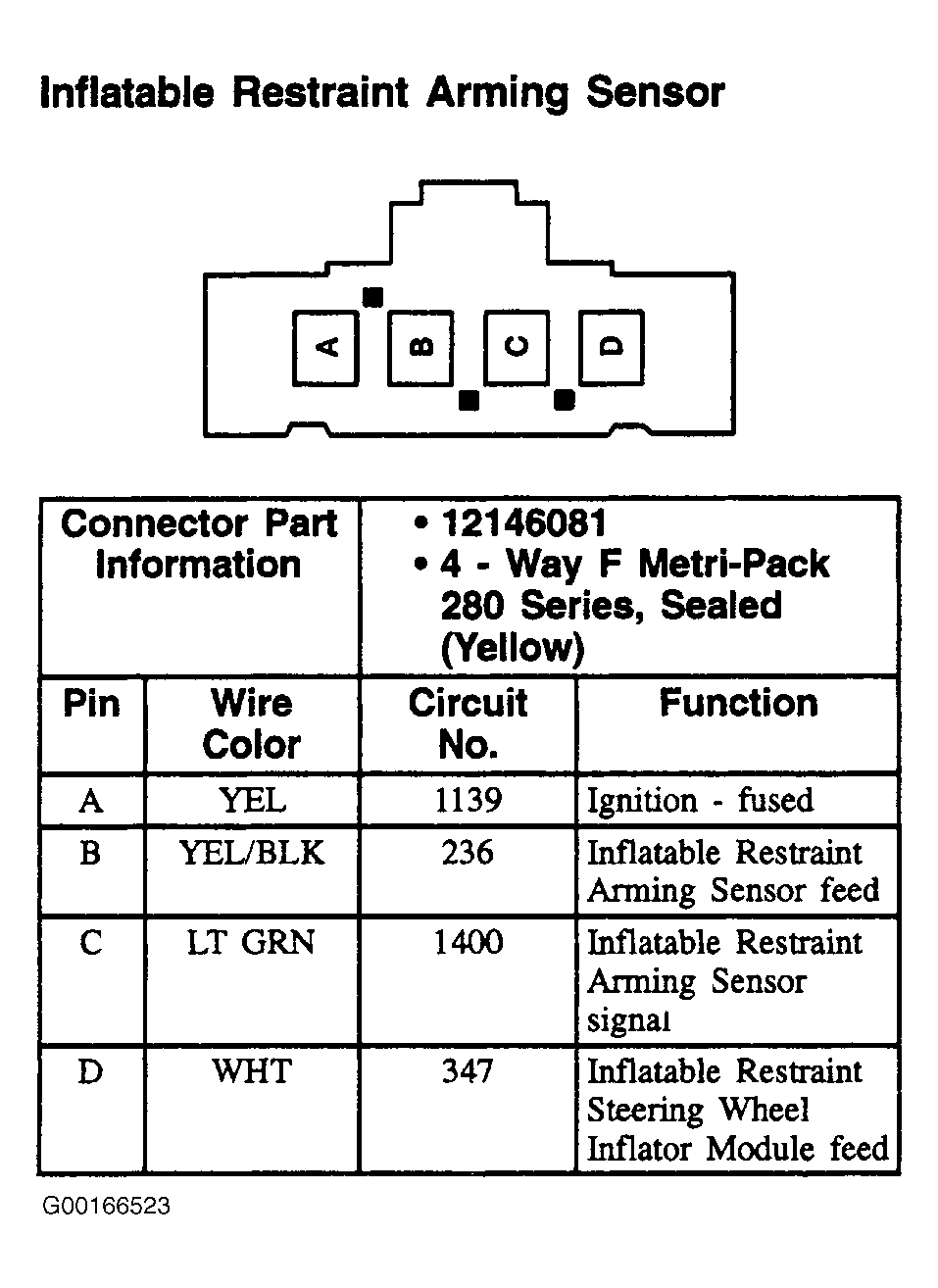

Fig 1: Inflatable Restraint Arming Sensor - 4-Pin Connector, Yellow
G00166523Courtesy of GENERAL MOTORS CORP.
