Intake Air Temperature Sensor
Intake Air Temperature Sensor

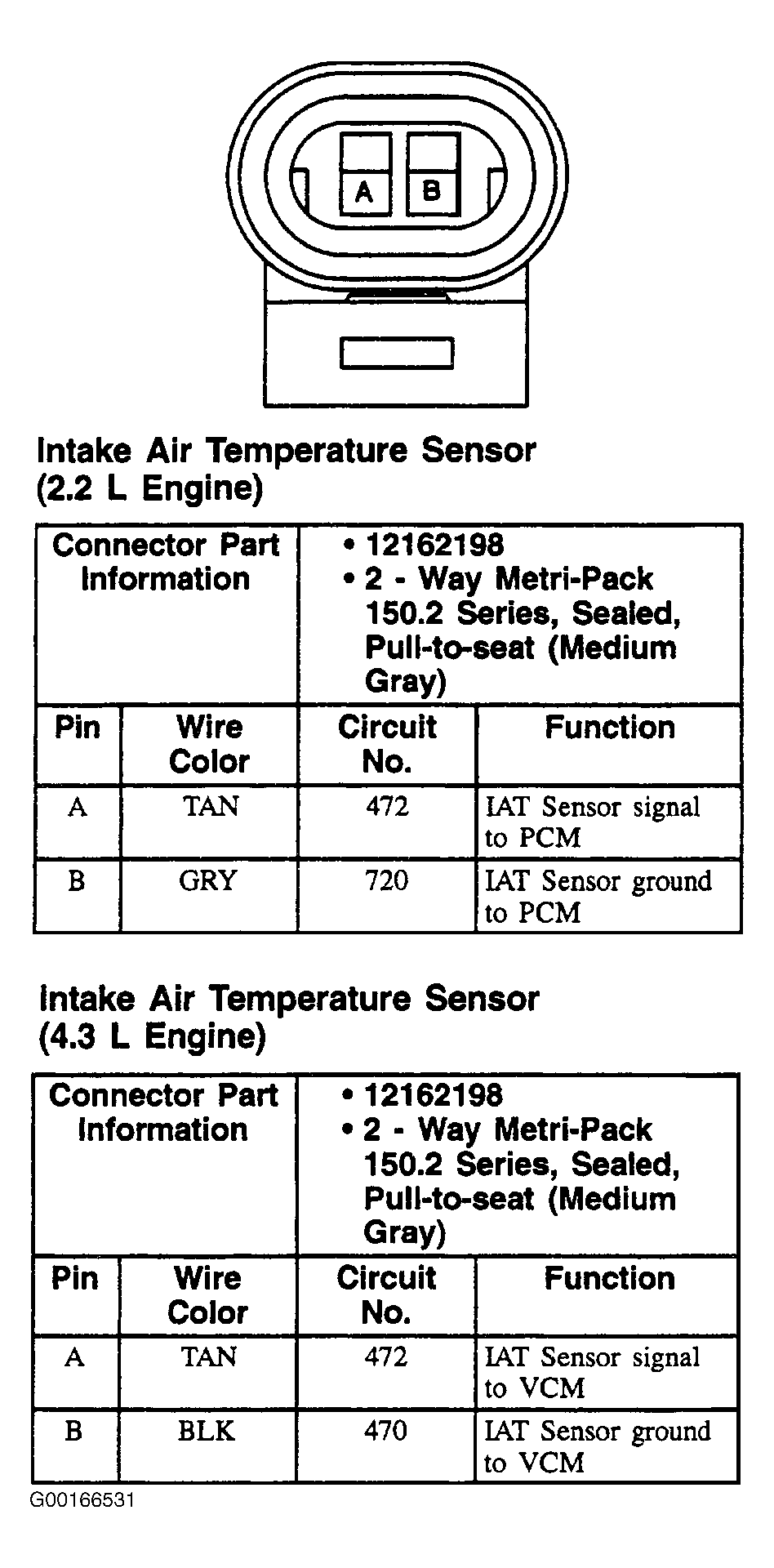

Fig 1: Intake Air Temperature Sensor - 2-Pin Connector, Medium Gray
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
