Connector Terminal Identification
›
Interior Lamps Control Module
Interior Lamps Control Module

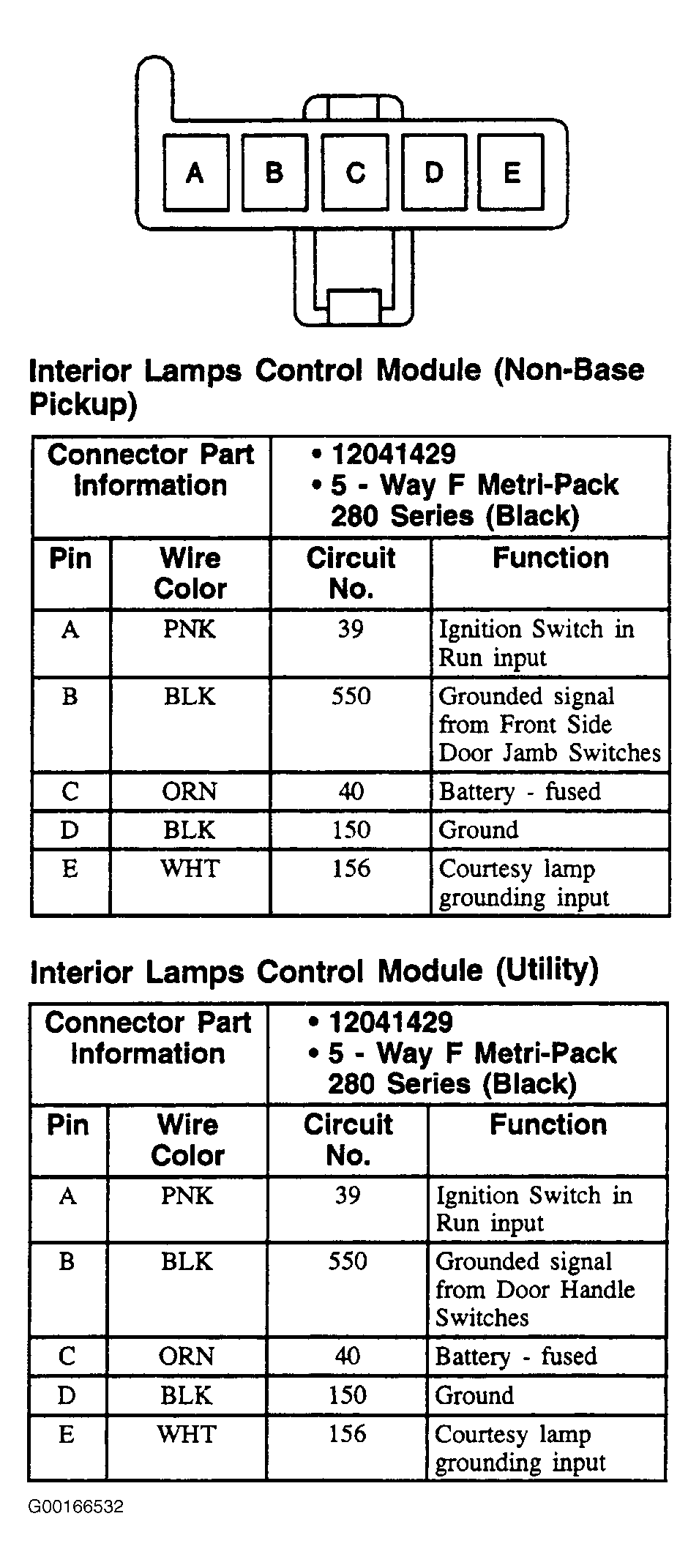

Fig 1: Interior Lamps Control Module - 5-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
