Outside Remote Control Rear View Mirror Switch

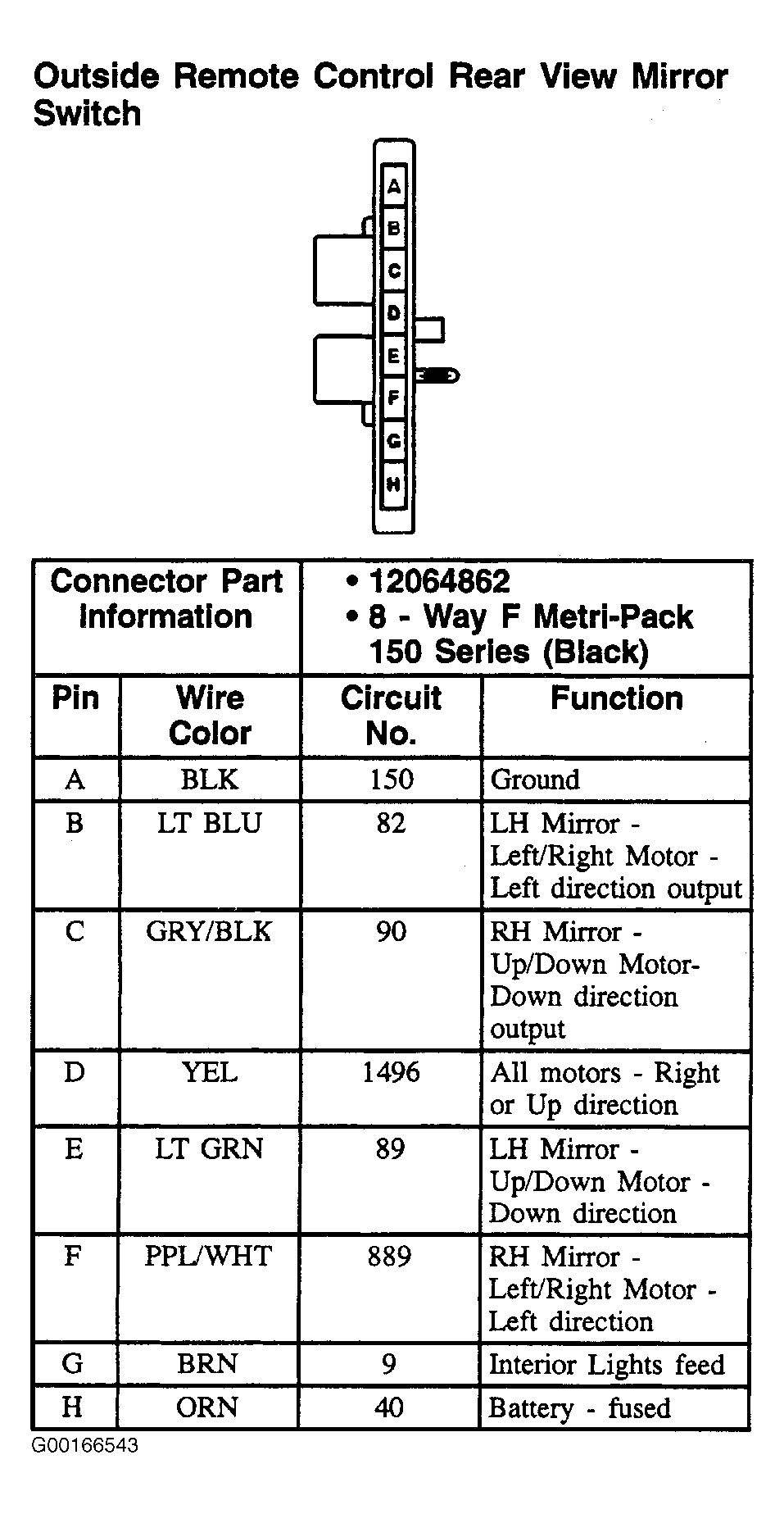

Fig 1: Outside Remote Control Rear View Mirror Switch - 8-Pin Connector, Black
G00166543Courtesy of GENERAL MOTORS CORP.
