Throttle Position Sensor

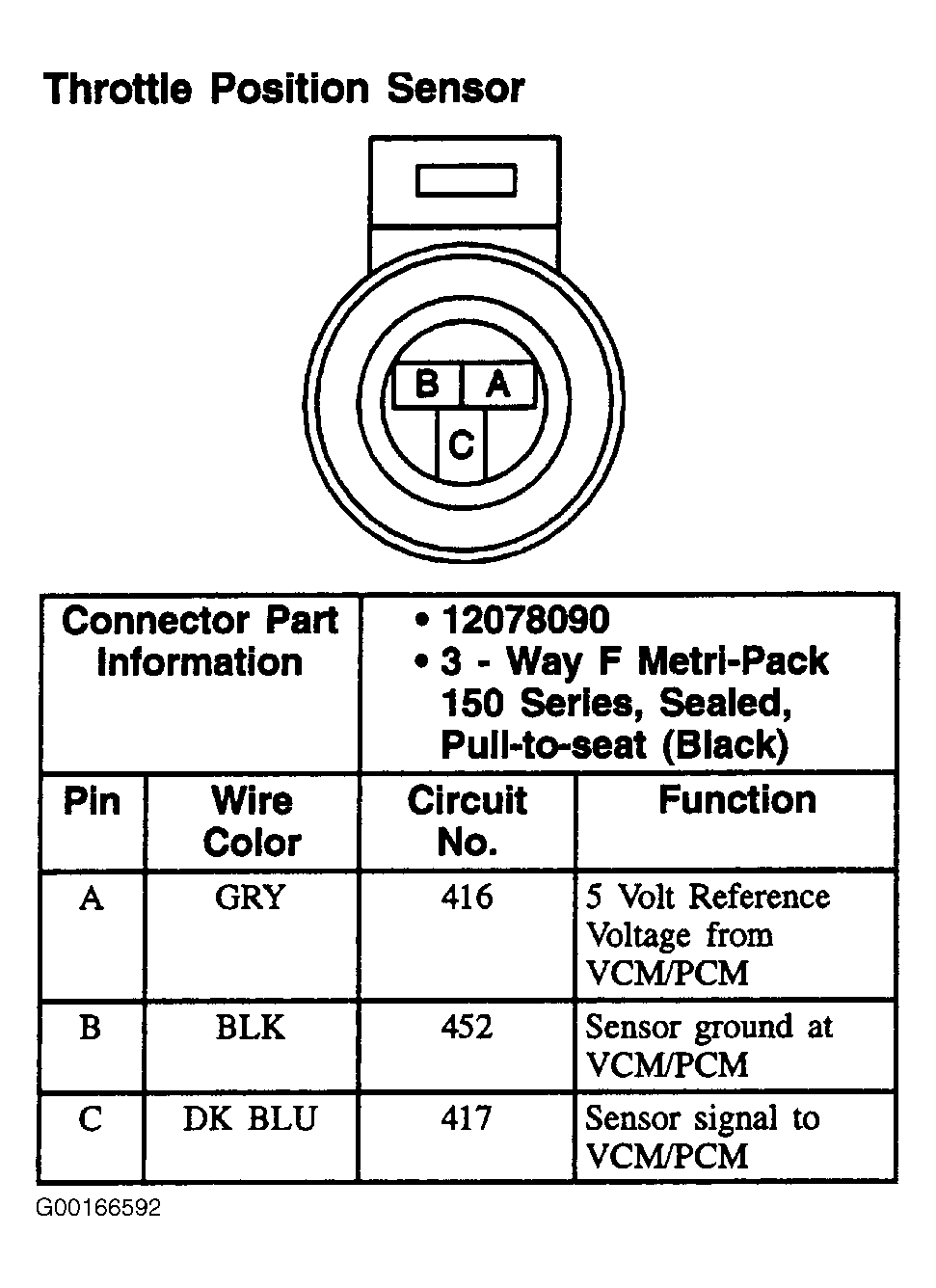

Fig 1: Throttle Position Sensor - 3-Pin Connector, Black
G00166592Courtesy of GENERAL MOTORS CORP.
