Connector Identification

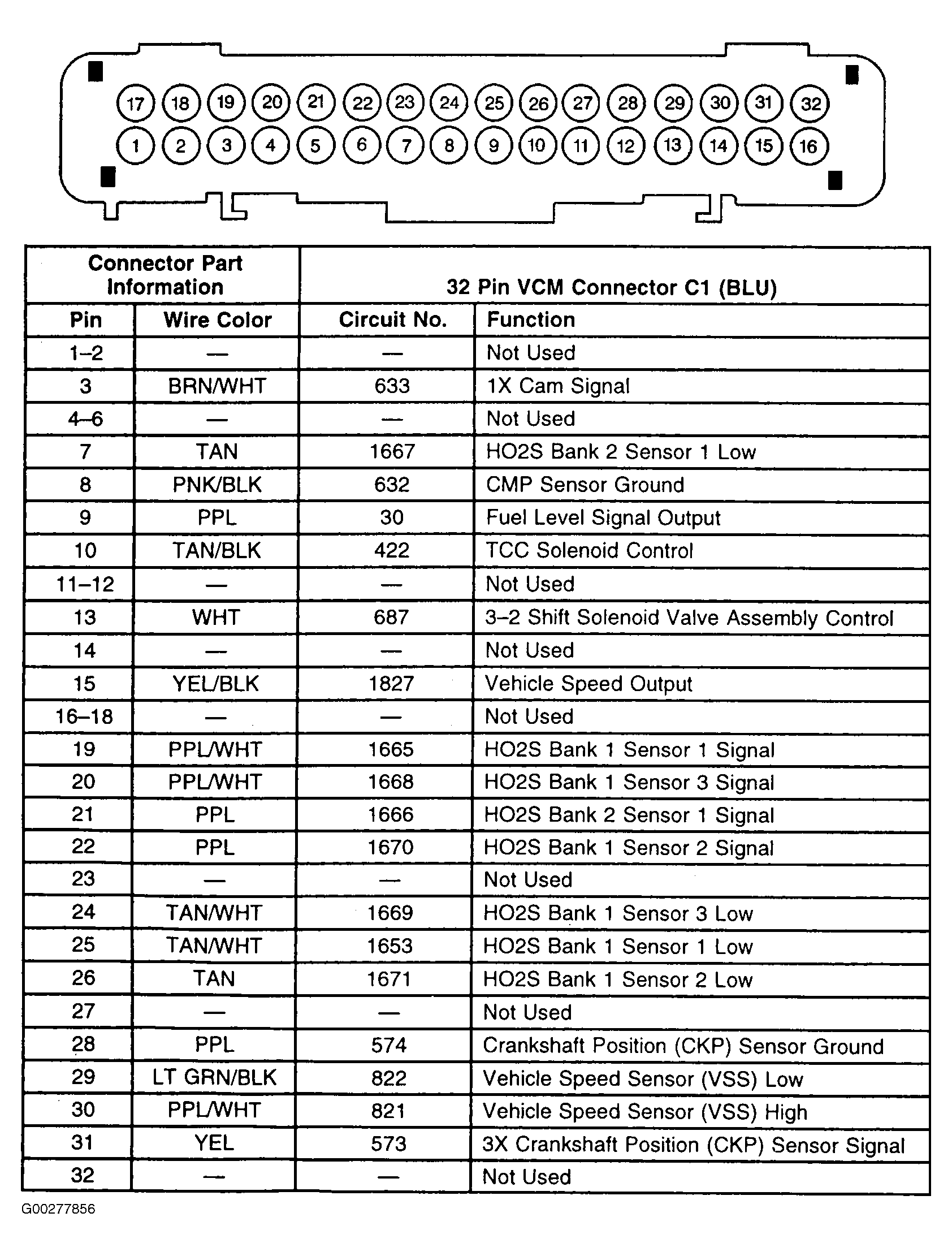

Fig 1: Vehicle Control Module 32-Pin Blue (C1) Connector End View

Courtesy of GENERAL MOTORS CORP.

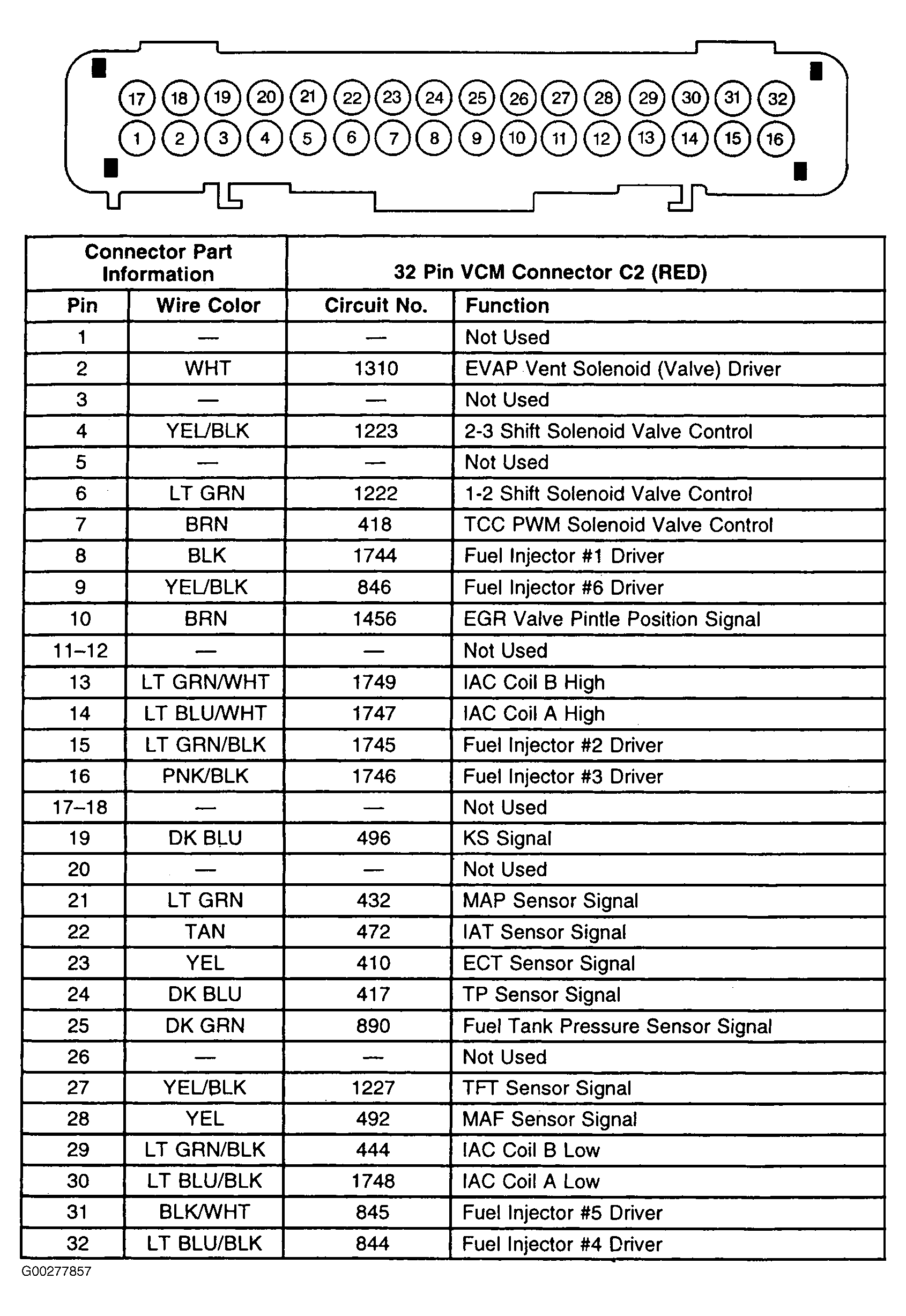

Fig 2: Vehicle Control Module 32-Pin Red (C2) Connector End View

Courtesy of GENERAL MOTORS CORP.

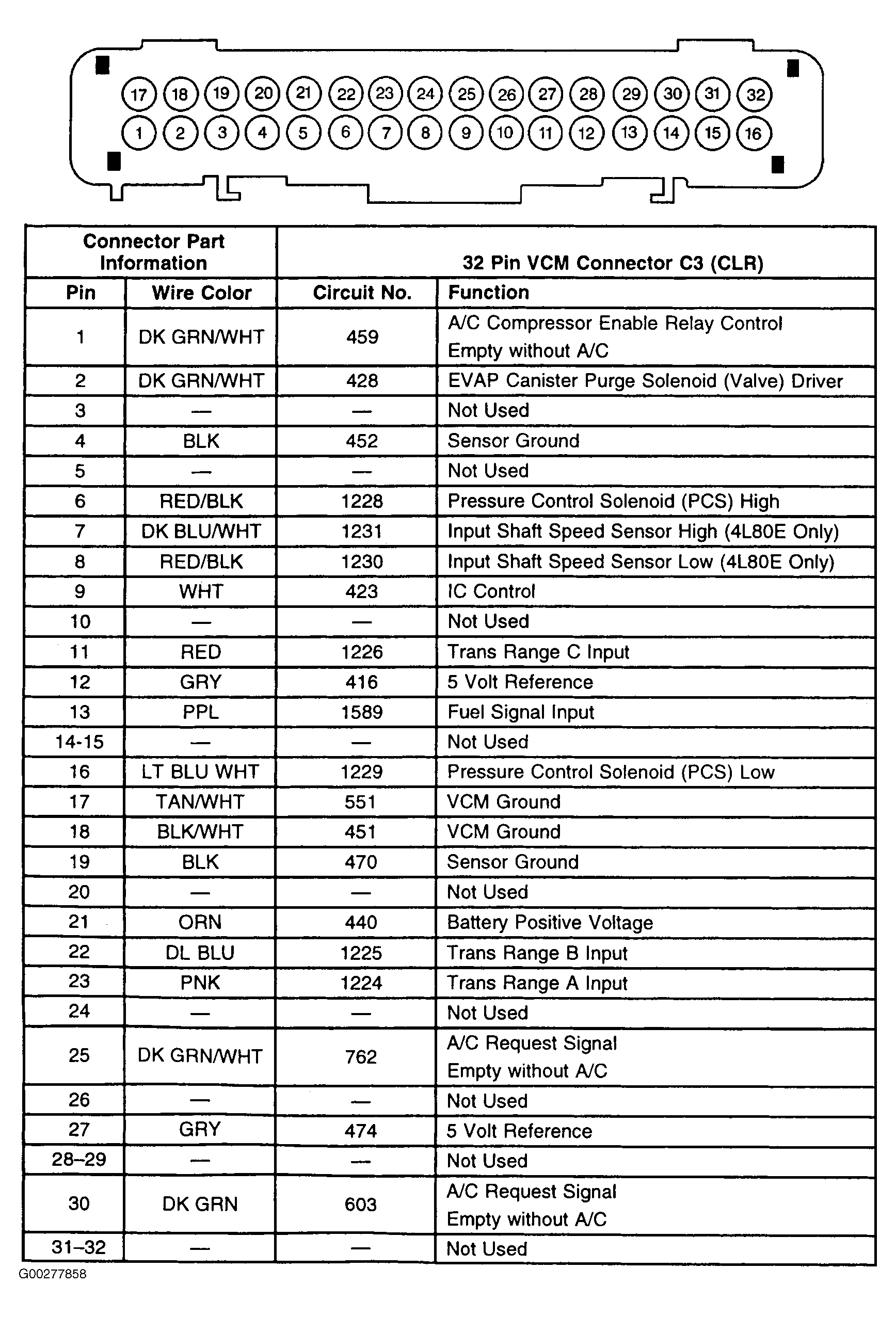

Fig 3: Vehicle Control Module 32-Pin Clear (C3) Connector End View

Courtesy of GENERAL MOTORS CORP.

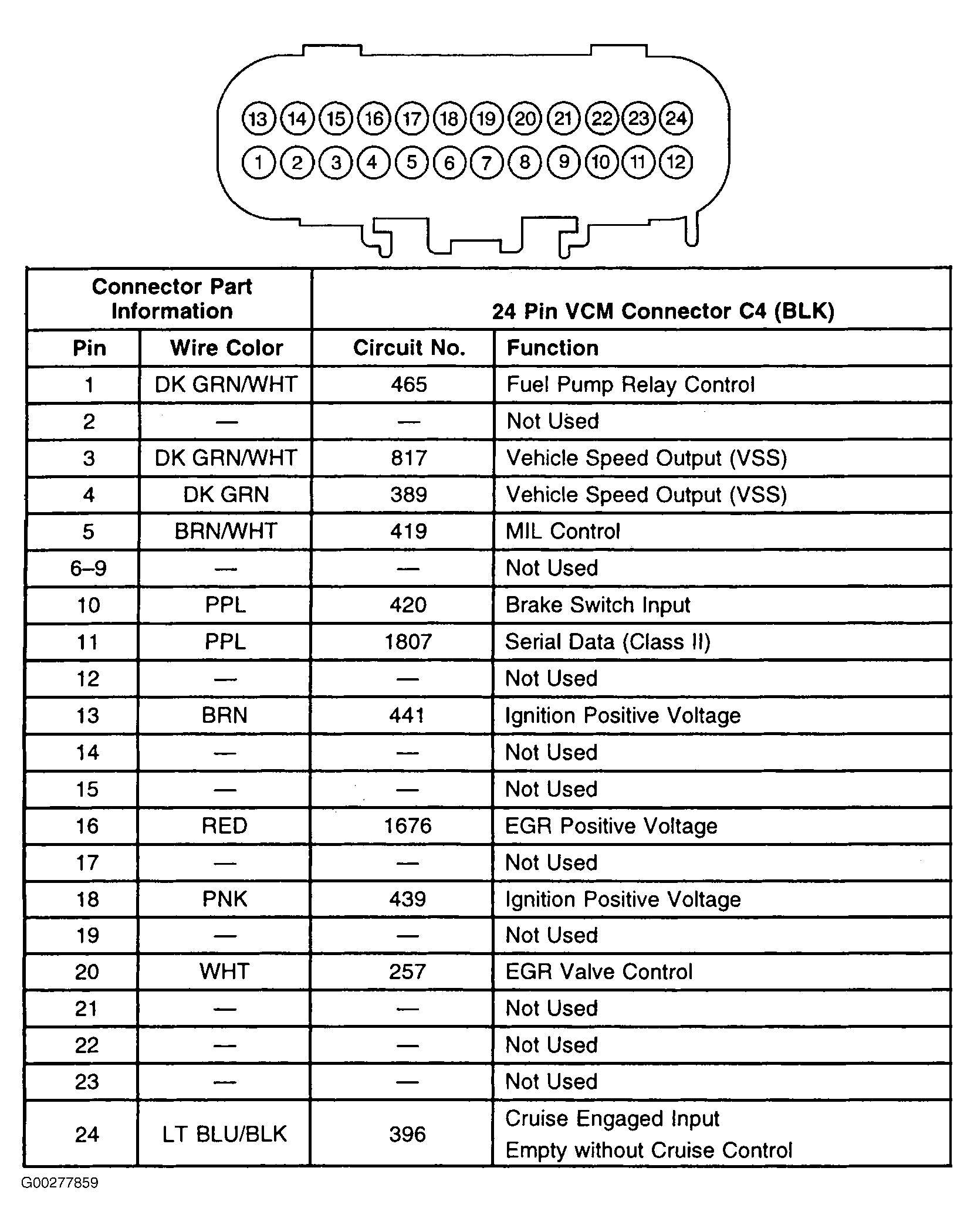

Fig 4: Vehicle Control Module 24-Pin Black (C4) Connector End View

Courtesy of GENERAL MOTORS CORP.
