Component Locations

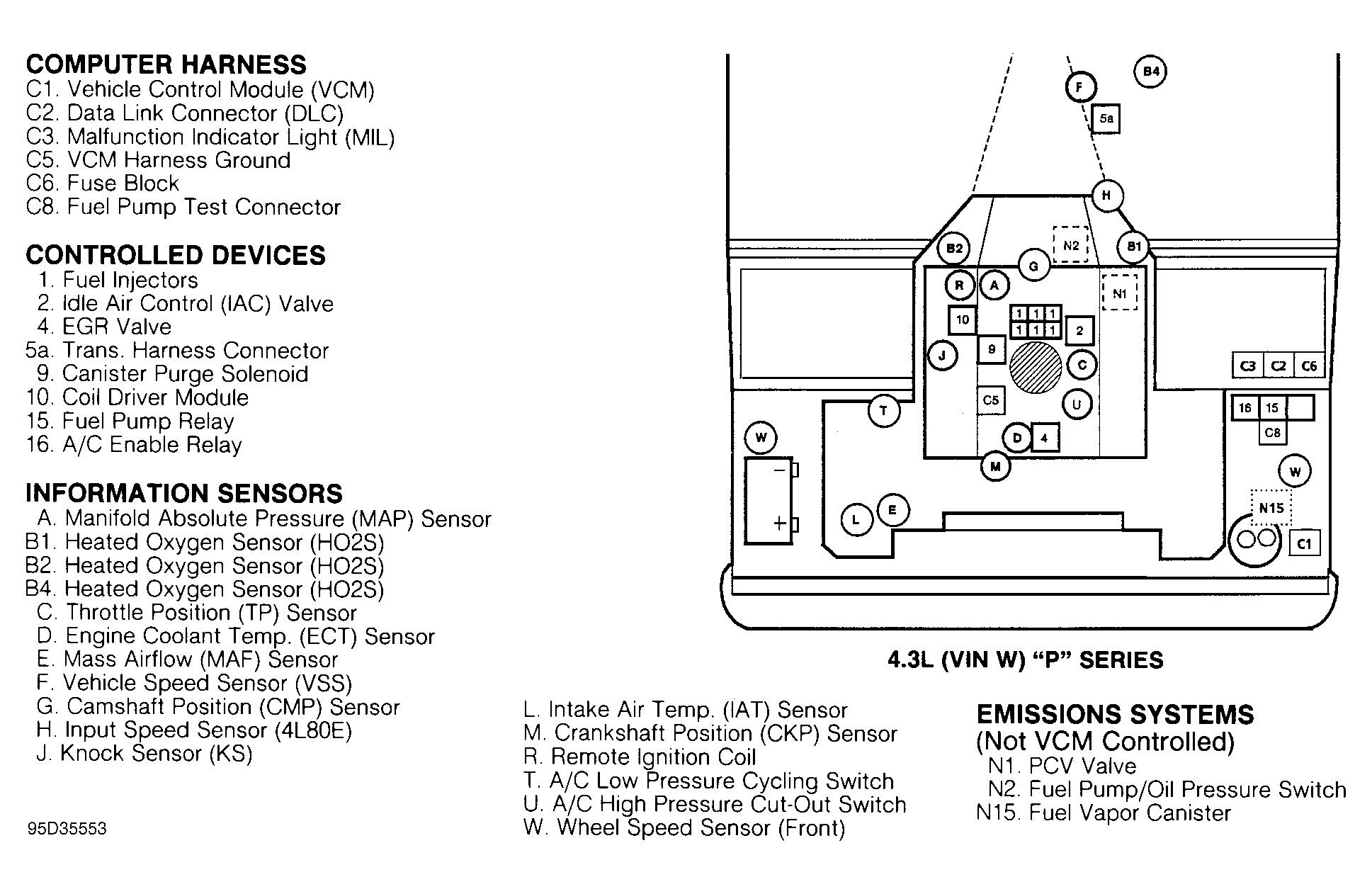

Fig 1: Component Locations For 4.3L (VIN W)
G95D35553Courtesy of GENERAL MOTORS CORP.
