Home › GMC › 1998 › Yukon 4WD › Repair and Diagnosis › Accessories & Equipment › Communication Devices › Data Link Communications System › Connector Identification

Connector Identification

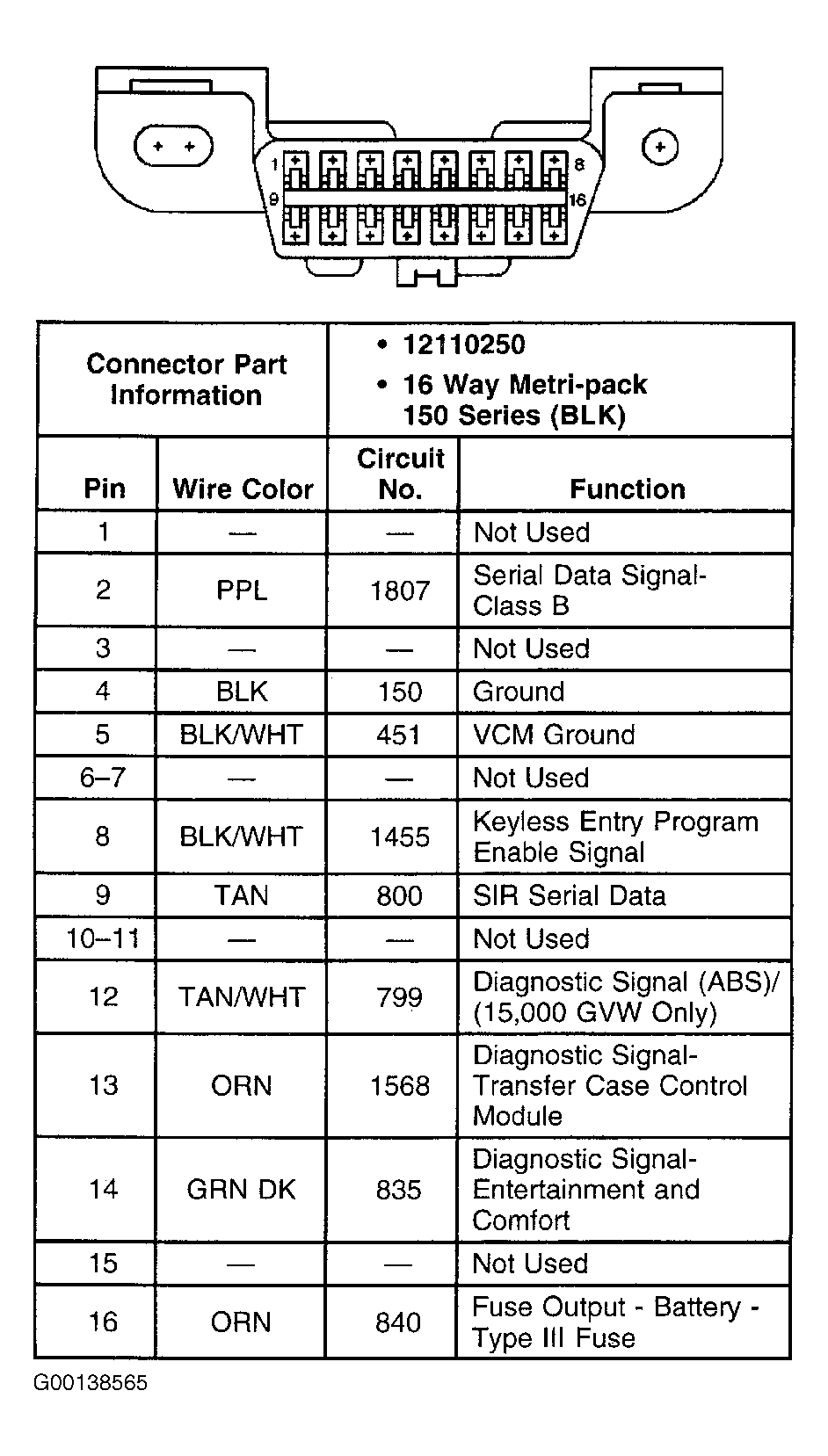

Fig 1: Data Link Connector End View
G00138565Courtesy of GENERAL MOTORS CORP.
