Remote Control Door Lock Receiver

To identify remote control door lock receiver connector terminals, see Fig 1 .

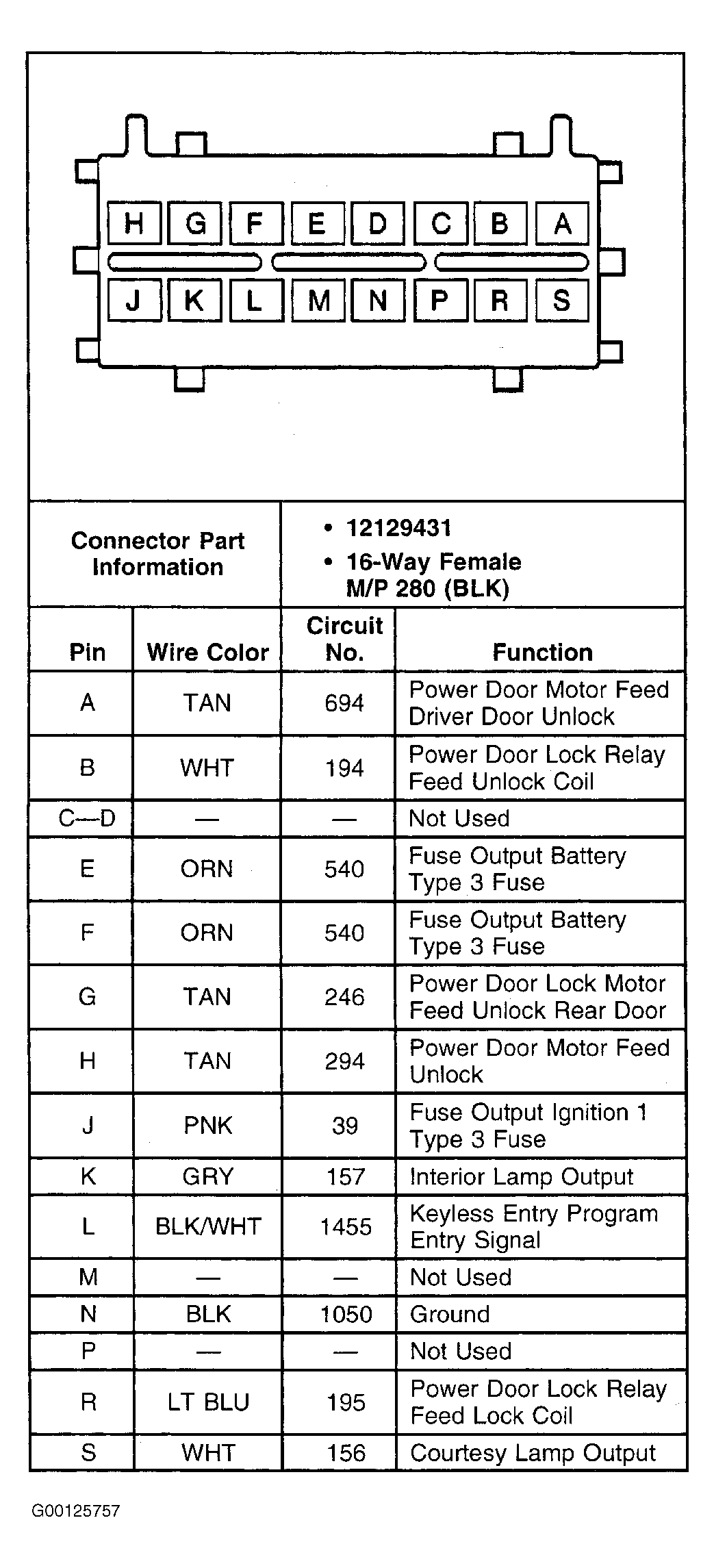

Fig 1: Identifying Remote Control Door Lock Receiver Connector

Courtesy of GENERAL MOTORS CORP.
