Body & Frame
›
Door Locks
›
Power Door Lock System
›
Connector Identification
›
Door Lock Control Module
Door Lock Control Module

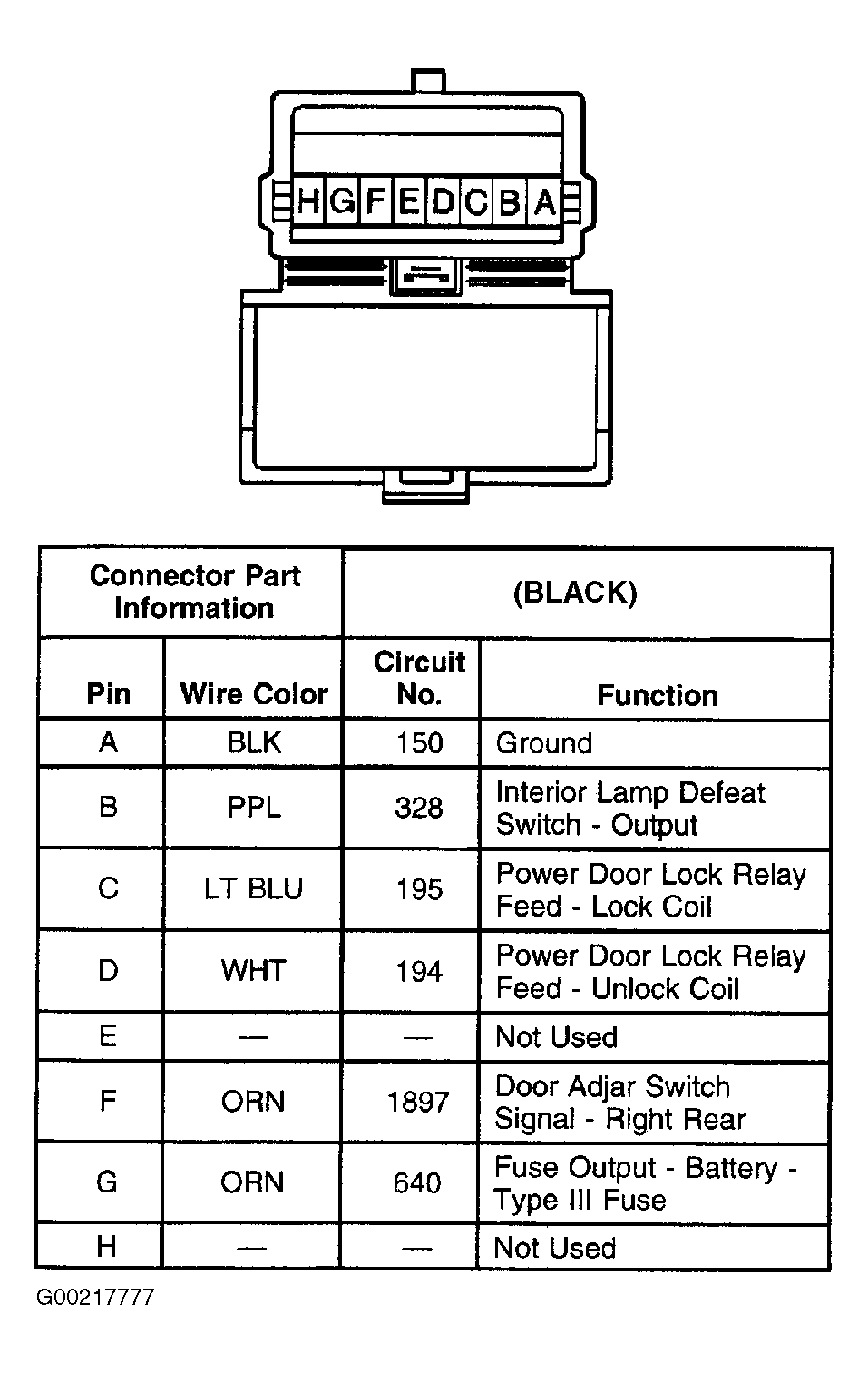

Fig 1: Door Lock Control Module Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
