Connector Identification

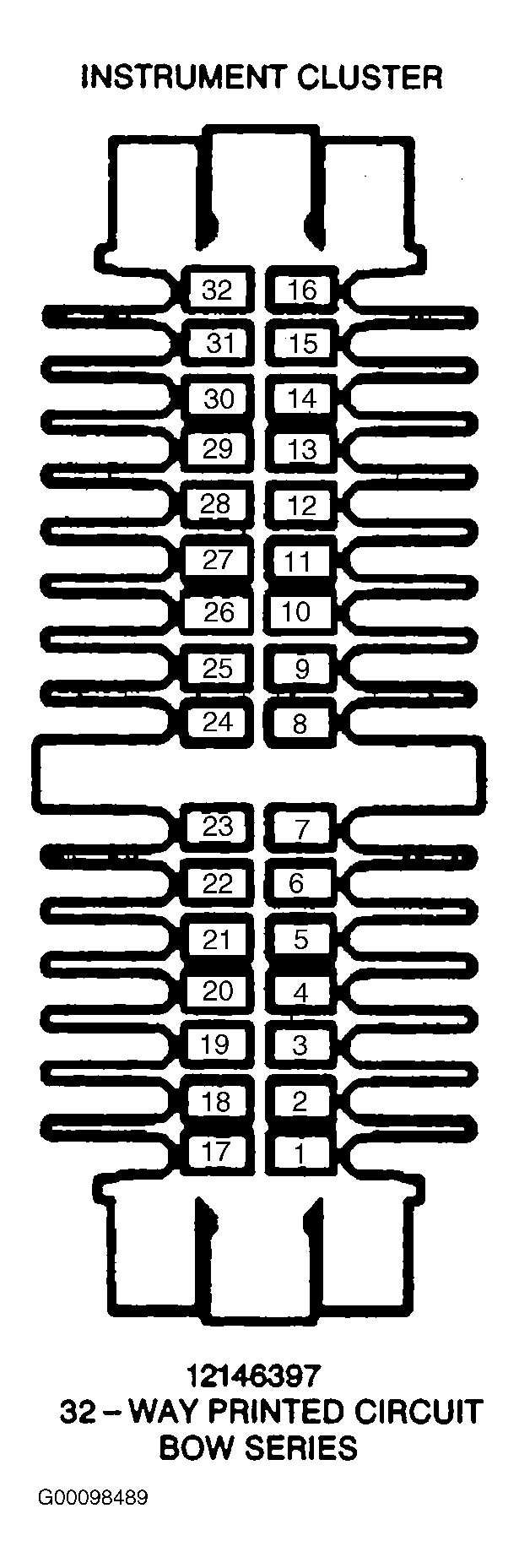

Fig 1: Instrument Cluster Harness 32-Pin Printed Circuit (Bow Series) Connector End View
G00098489Courtesy of GENERAL MOTORS CORP.
Fig 2: Fuel Pump Balance Module 6-Pin Connector End View
G00098481Courtesy of GENERAL MOTORS CORP.
Fig 3: Fuel Pump Balance Relay 4-Pin Connector End View
G00098482Courtesy of GENERAL MOTORS CORP.
