Test B: Fuel Gauge Is Inaccurate

NOTE: Refer to Technical Service Bulletin No. 83-83-07 for up-to-date fuel level sensor resistance values. See FUEL LEVEL SENSOR REPLACEMENT PROCEDURE .

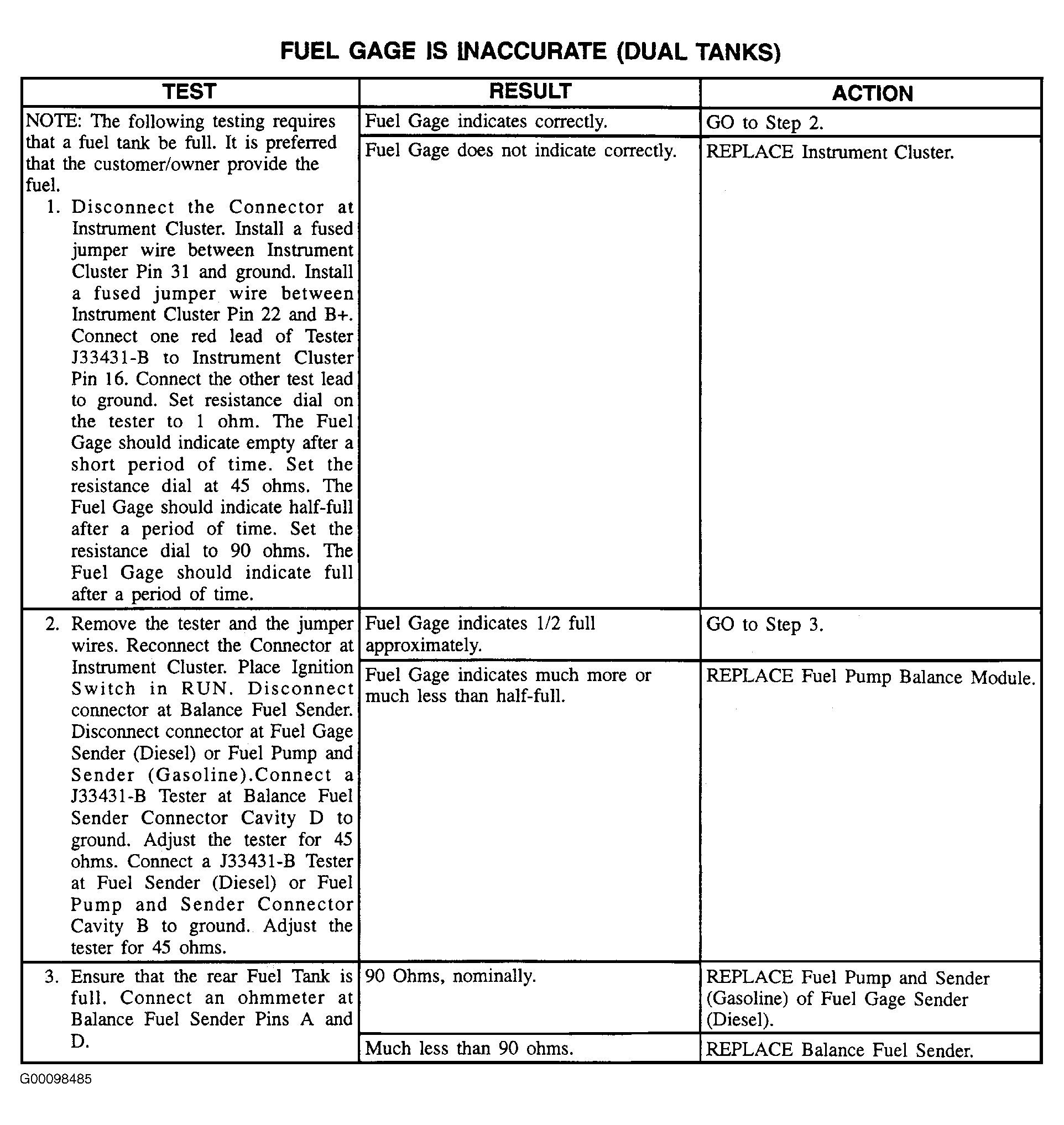

Fig 1: Fuel Gauge Is Inaccurate - Diagnostic Chart

Courtesy of GENERAL MOTORS CORP.
