Connector Identification

WARNING: This page is about a different car, the 1999 GMC Sierra and 1999 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

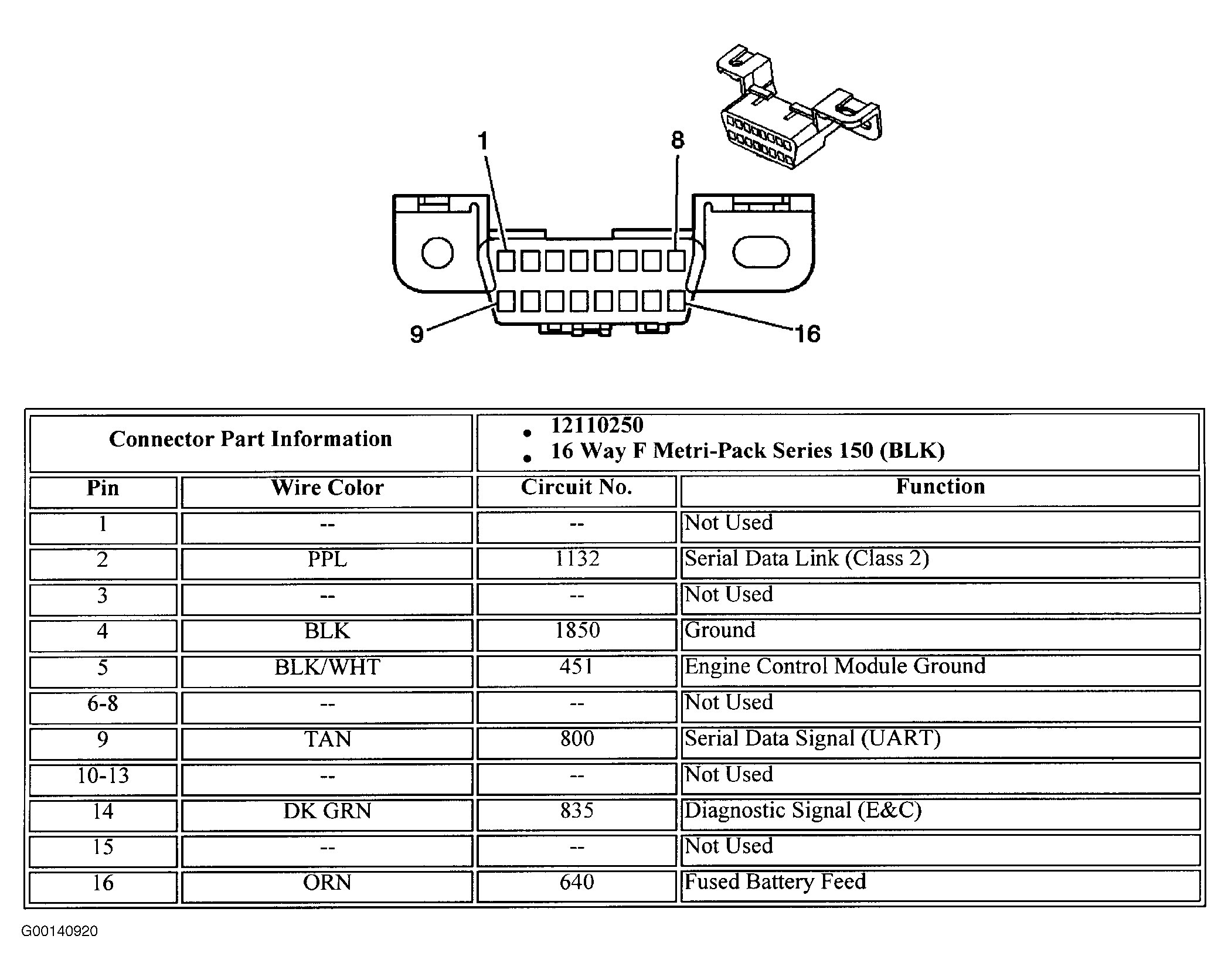

Fig 1: Identifying DLC Terminals

Courtesy of GENERAL MOTORS CORP.

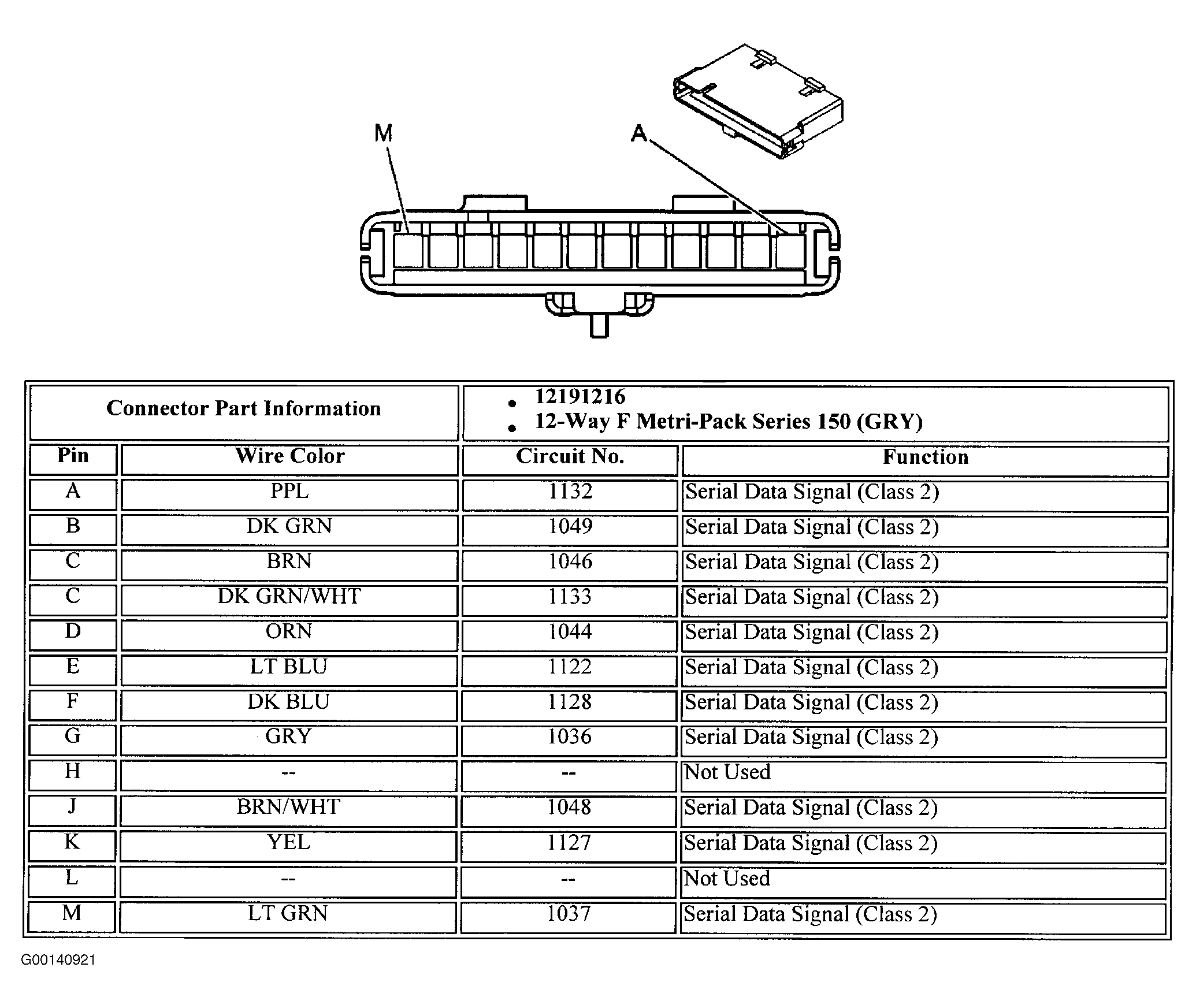

Fig 2: Identifying SP205 Terminals

Courtesy of GENERAL MOTORS CORP.
