Gasoline Engines

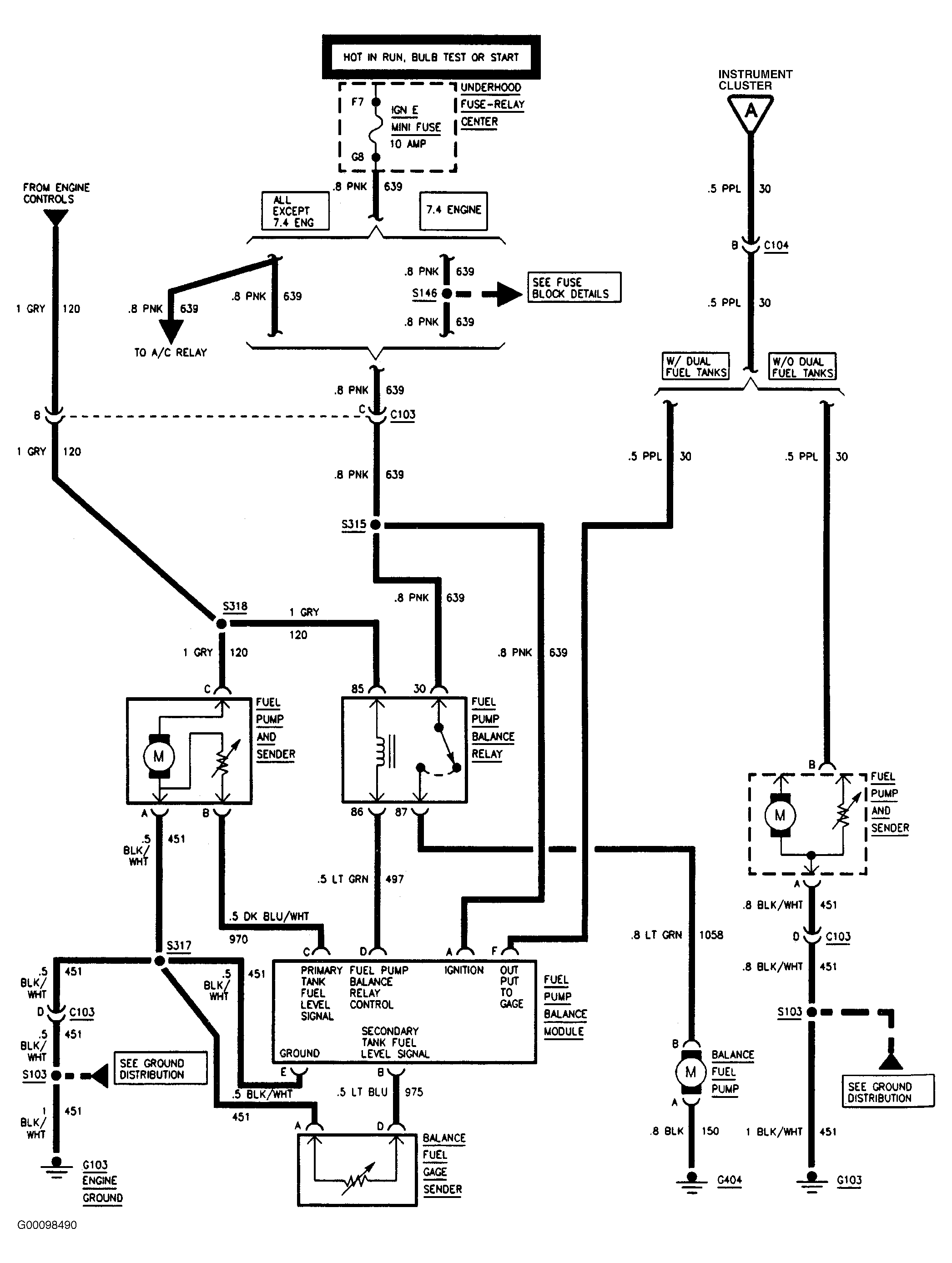

Fig 1: Fuel Pump Balance Module Wiring Diagram - Gasoline (1996-98)

Courtesy of GENERAL MOTORS CORP.

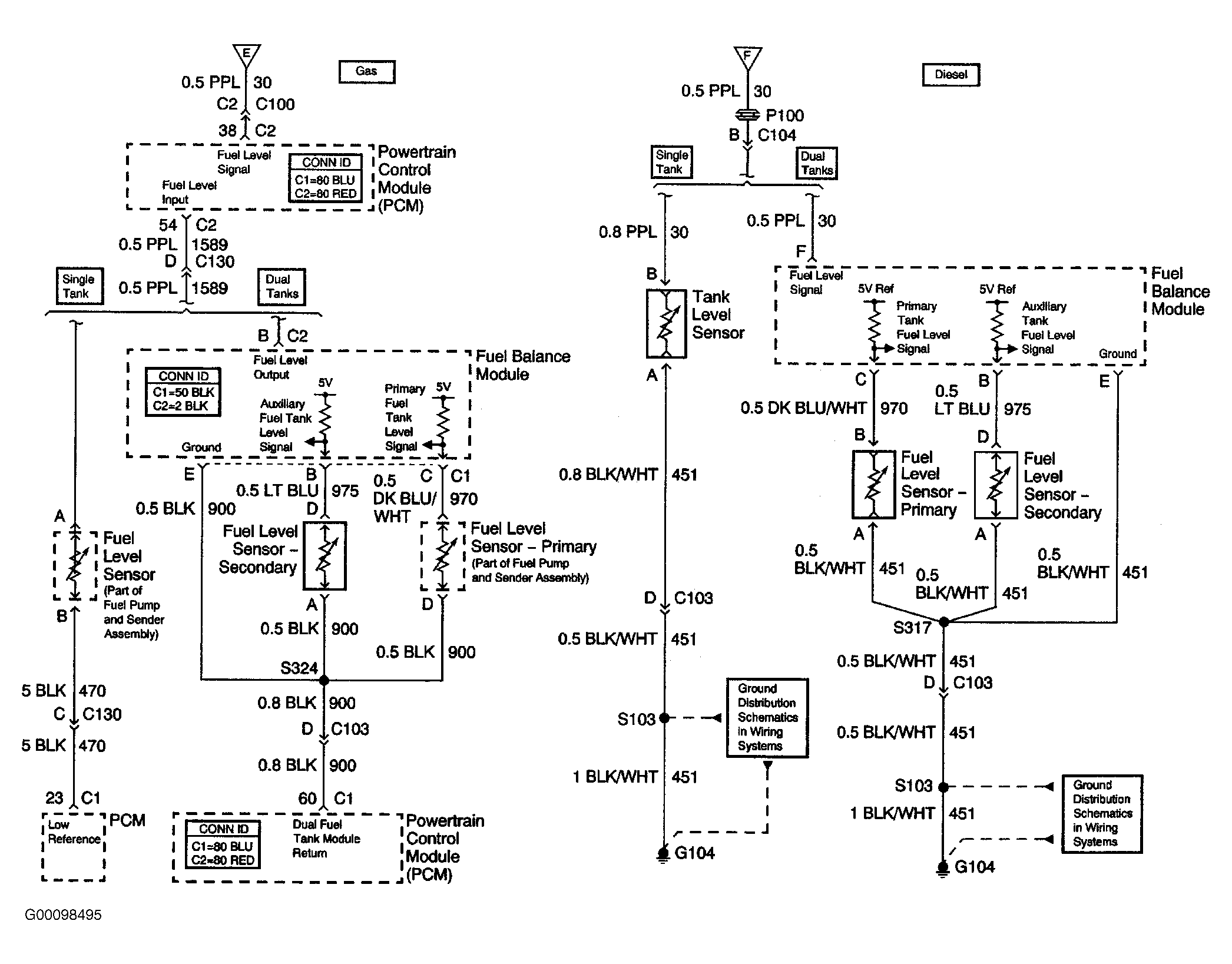

Fig 2: Fuel Pump Balance Module Wiring Diagram - Gasoline (1998-99)

Courtesy of GENERAL MOTORS CORP.

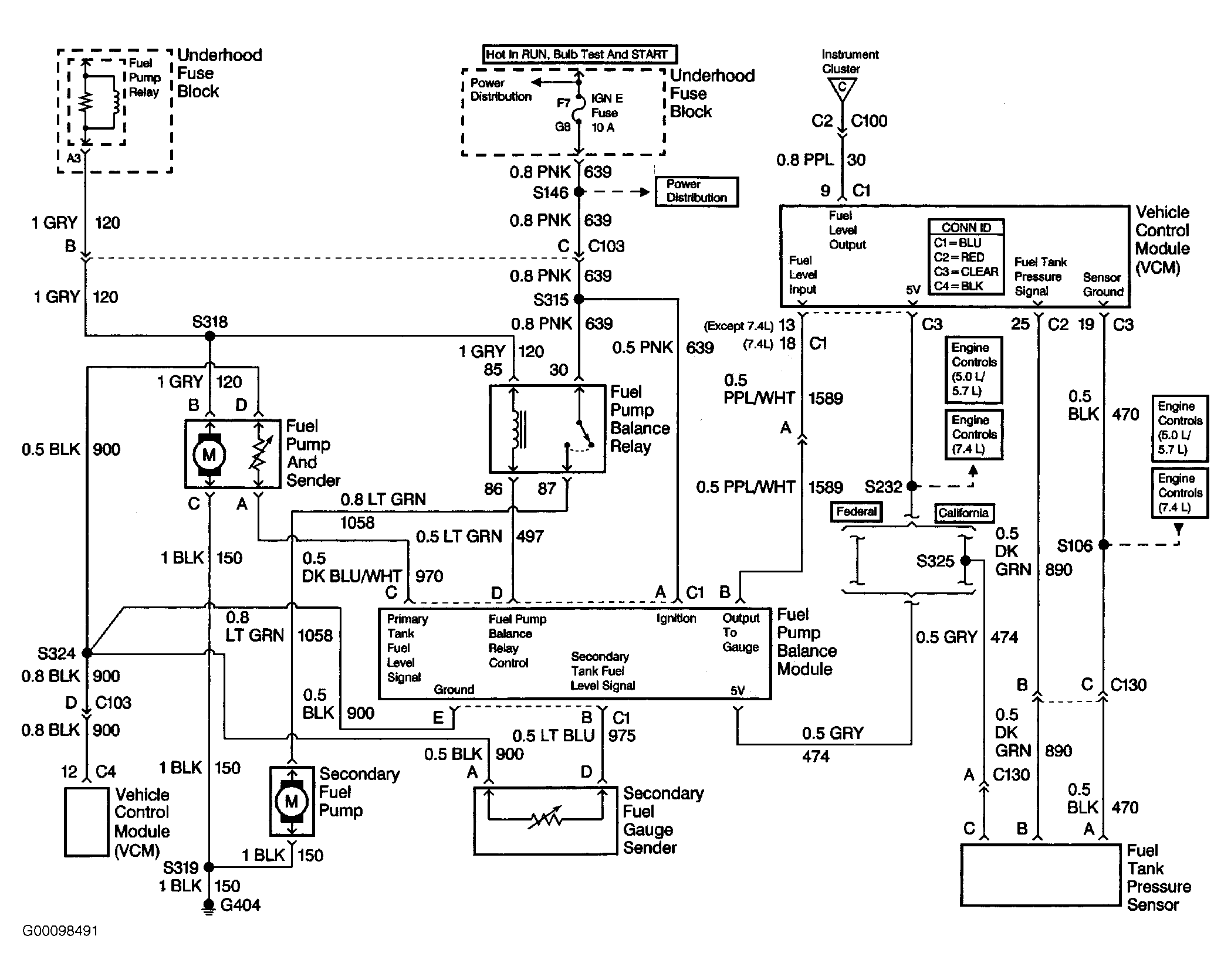

Fig 3: Fuel Pump Balance Module Wiring Diagram - Gasoline (2000)

Courtesy of GENERAL MOTORS CORP.

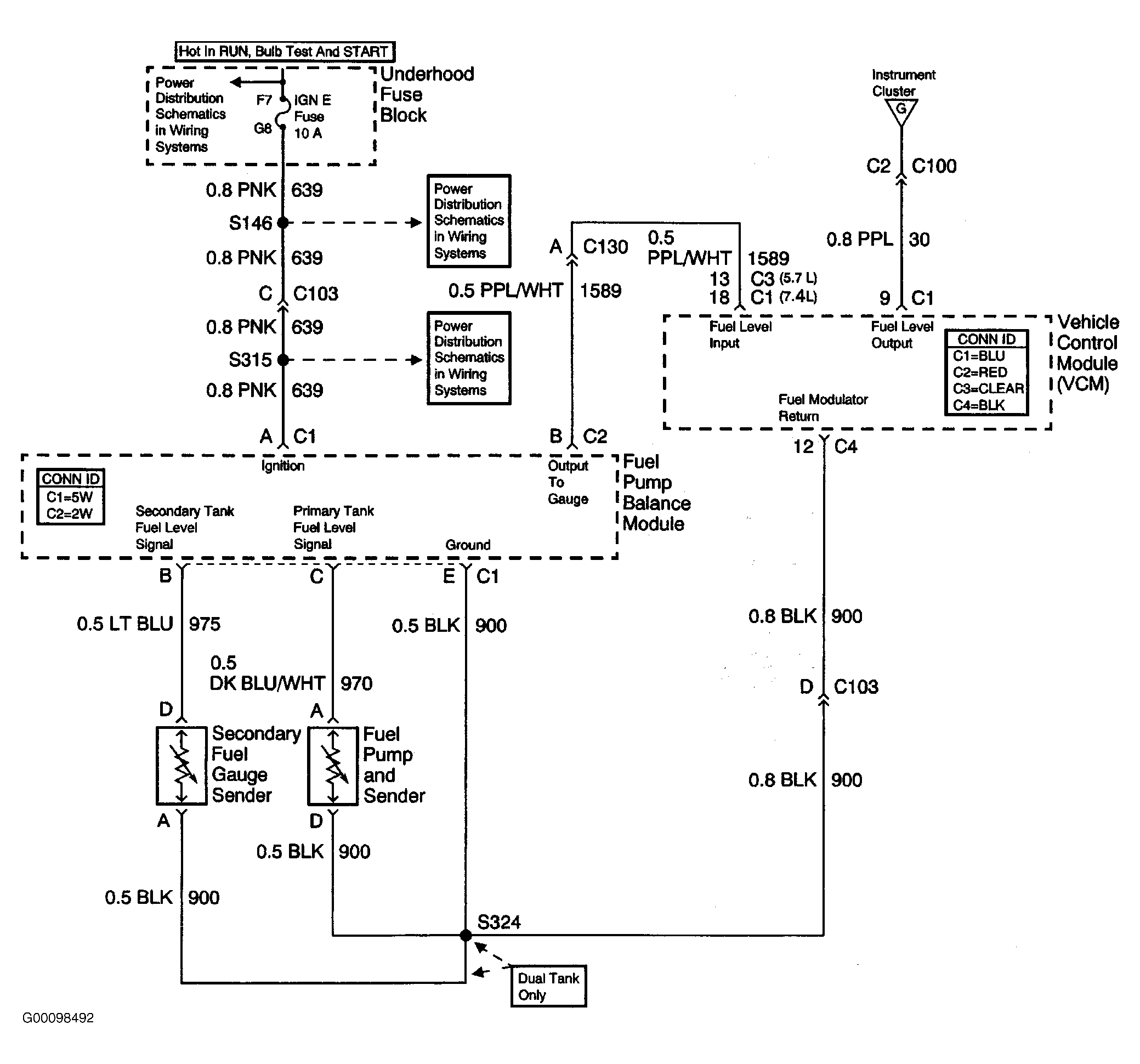

Fig 4: Fuel Pump Balance Module Wiring Diagram (2002 Except 8.1L Gasoline)

Courtesy of GENERAL MOTORS CORP.

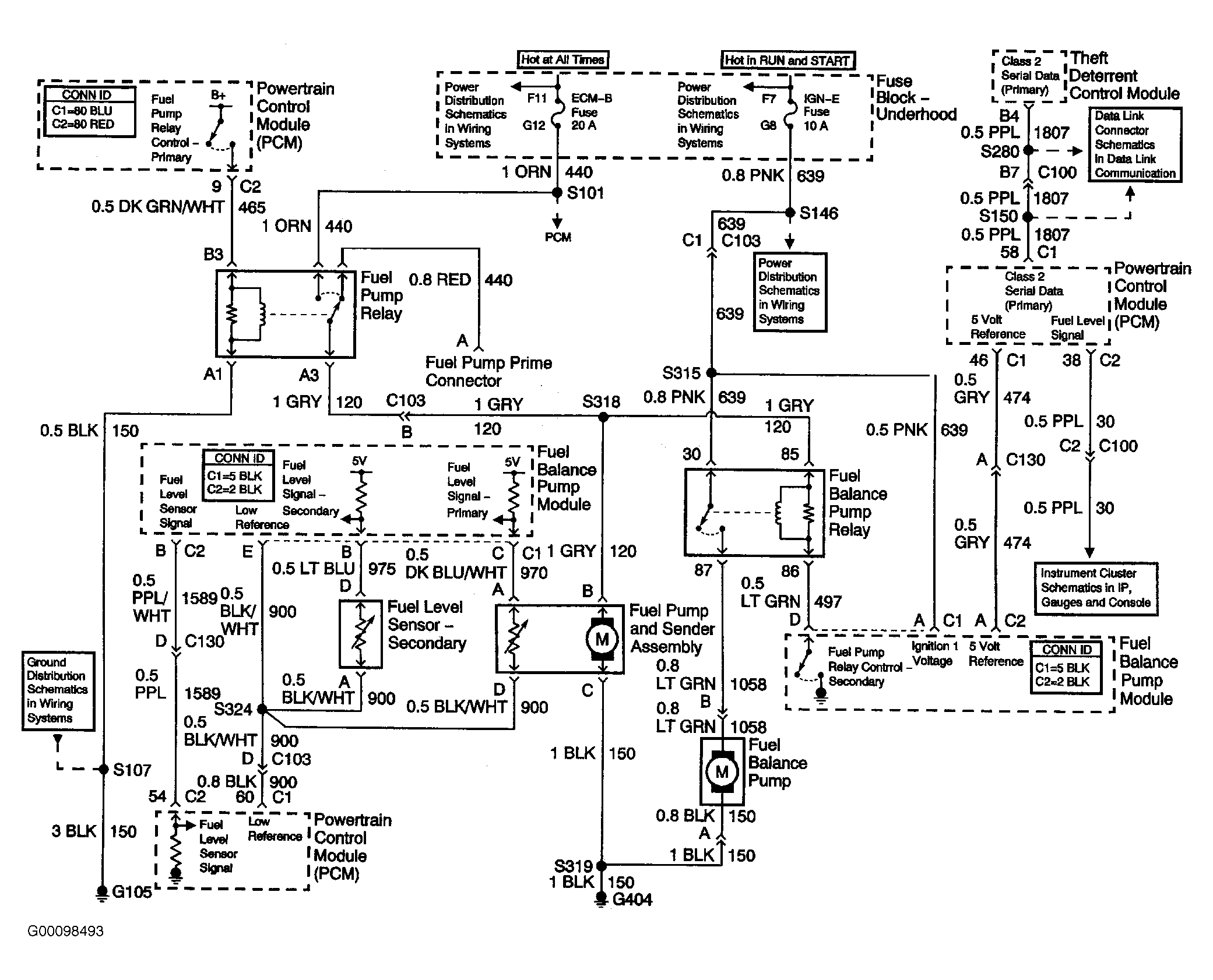

Fig 5: Fuel Pump Balance Module Wiring Diagram - 8.1L Gasoline (2002)

Courtesy of GENERAL MOTORS CORP.
