Diesel Engines

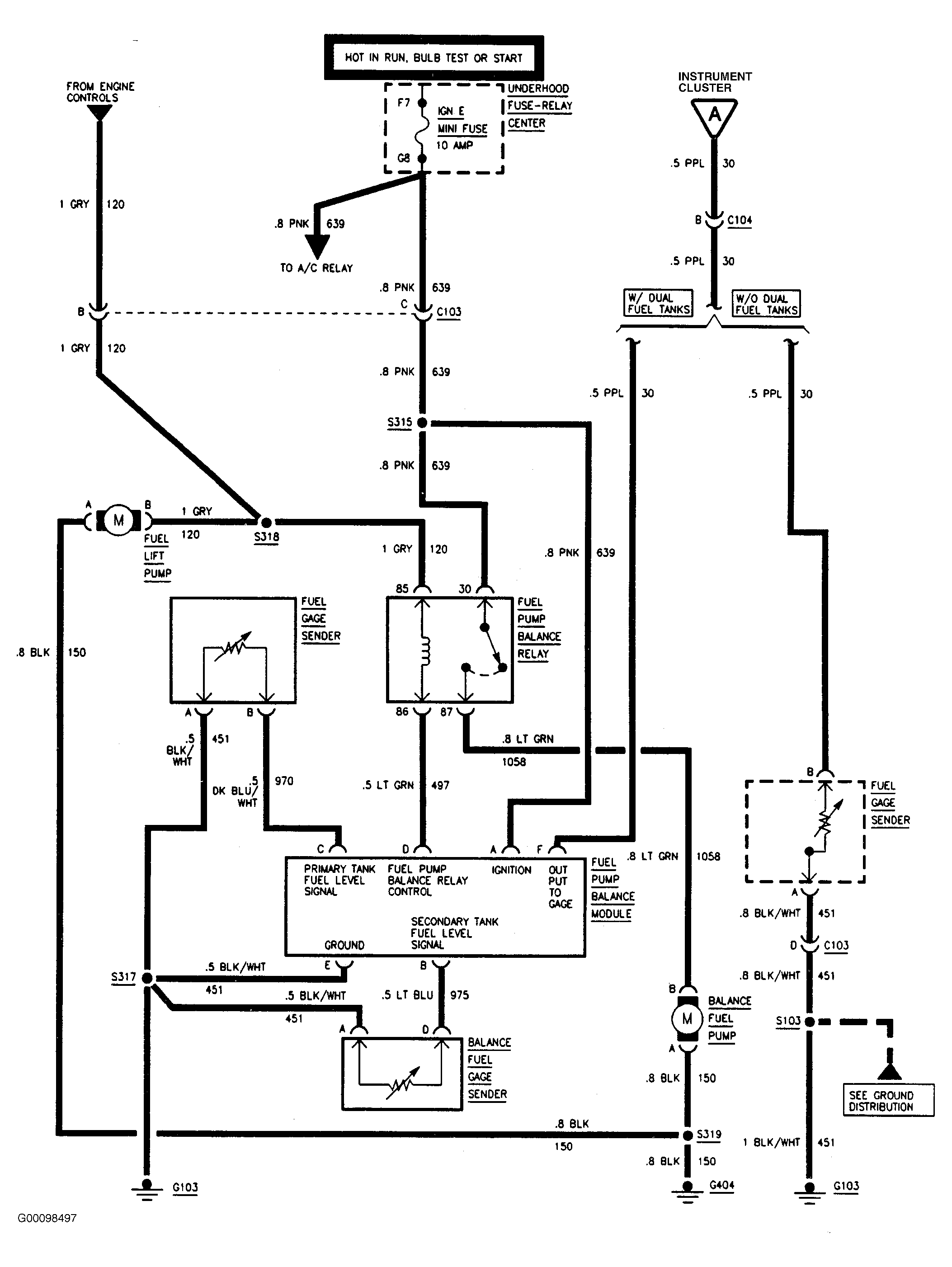

Fig 1: Fuel Pump Balance Module Wiring Diagram - Diesel Engines (1996)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Fuel Pump Balance Module Wiring Diagram - Diesel Engines (1997)

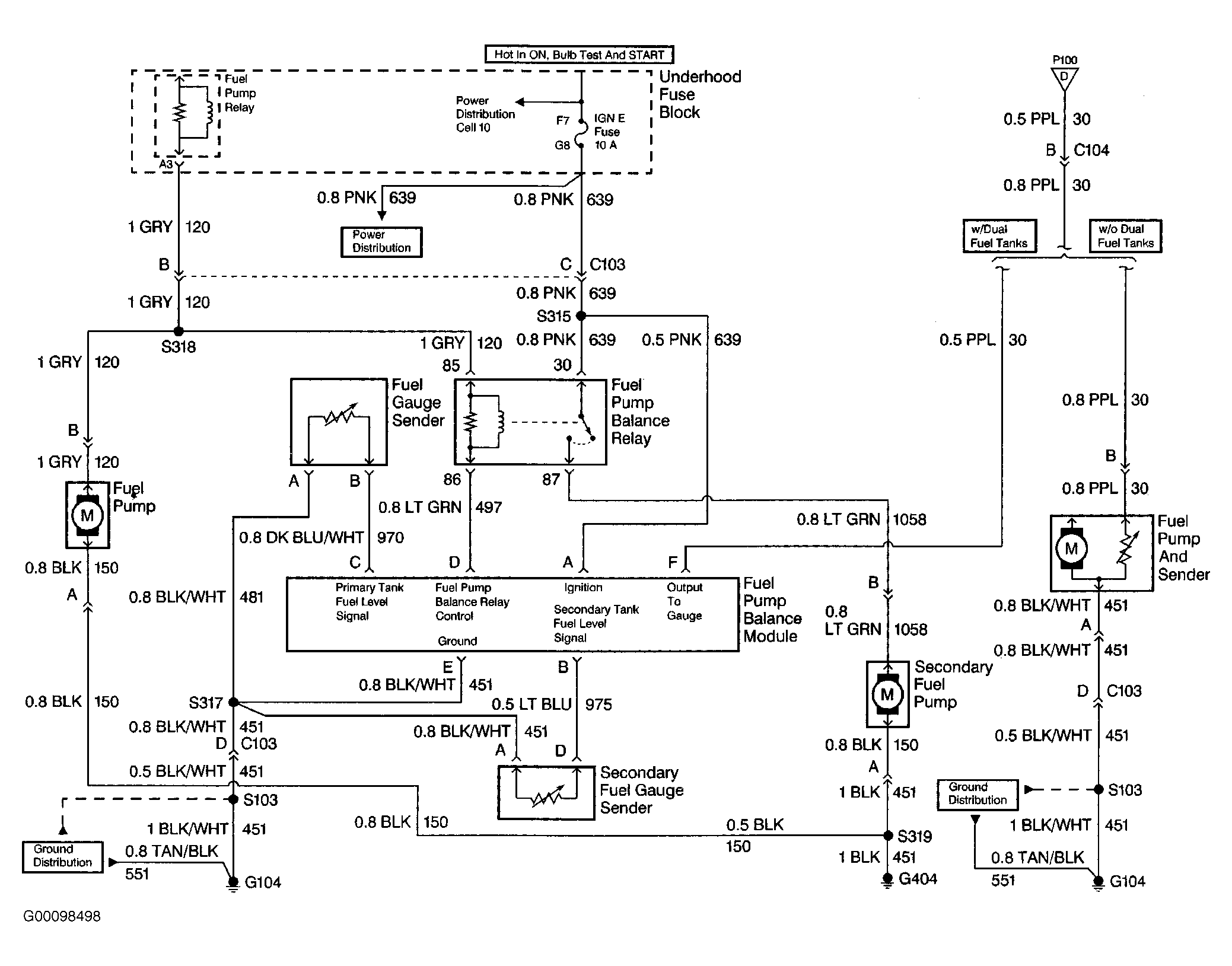

Fig 3: Fuel Pump Balance Module Wiring Diagram - Diesel Engines (1998-99)

Courtesy of GENERAL MOTORS CORP.

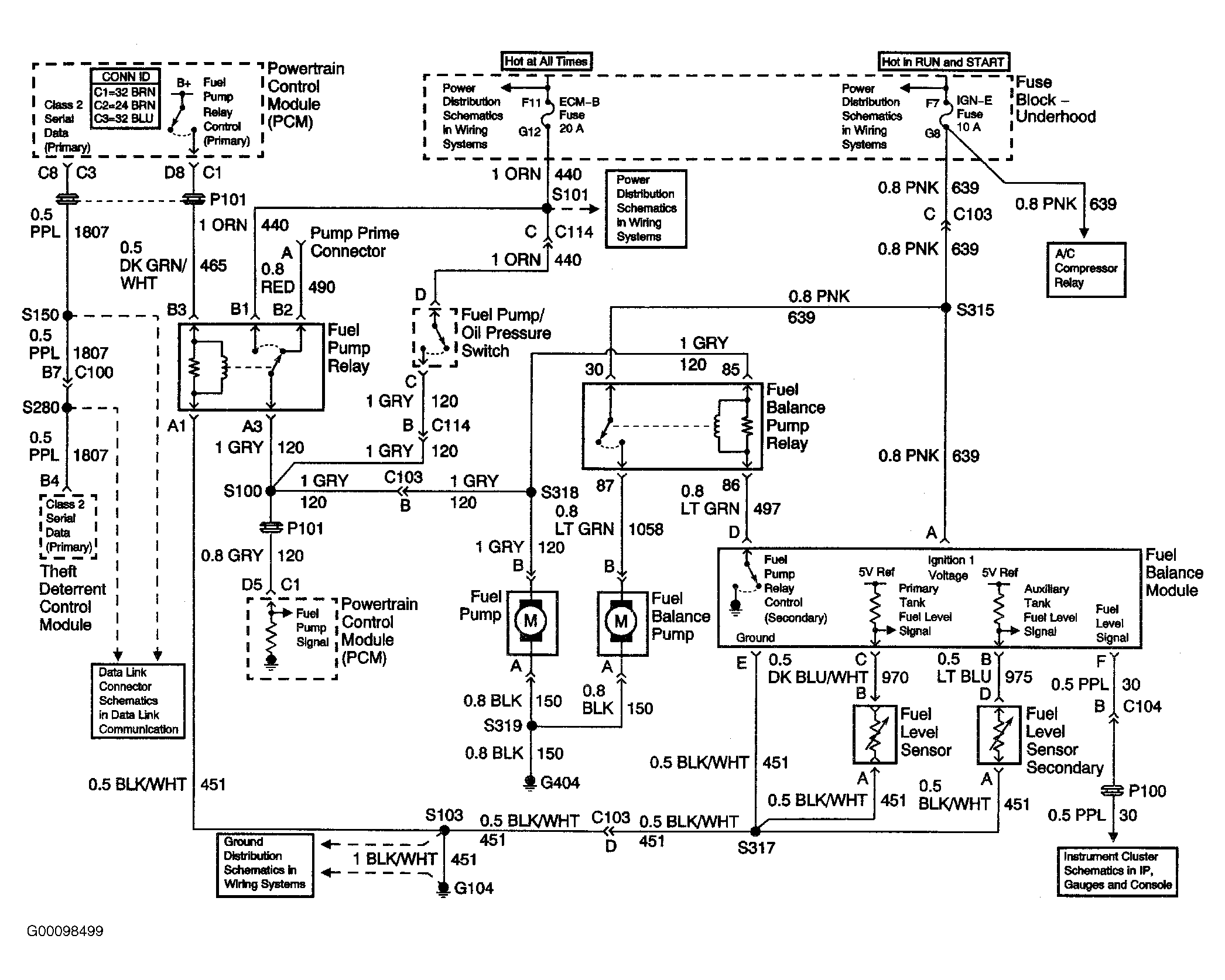

Fig 4: Fuel Pump Balance Module Wiring Diagram - 6.5L Diesel Engines (2002)

Courtesy of GENERAL MOTORS CORP.
